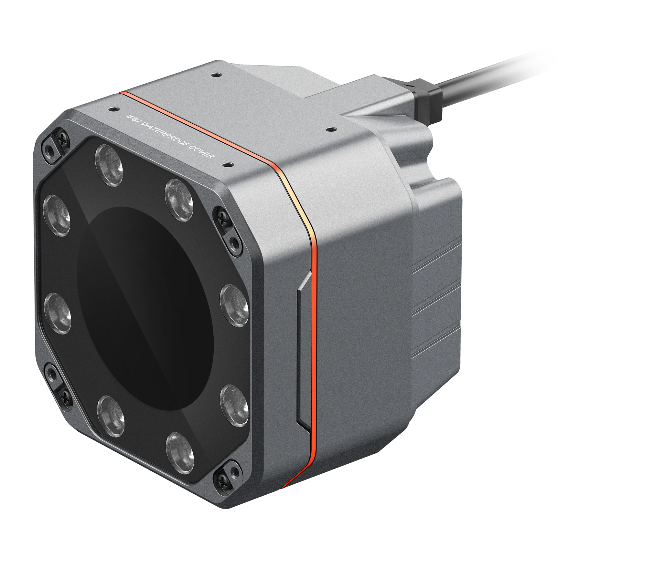

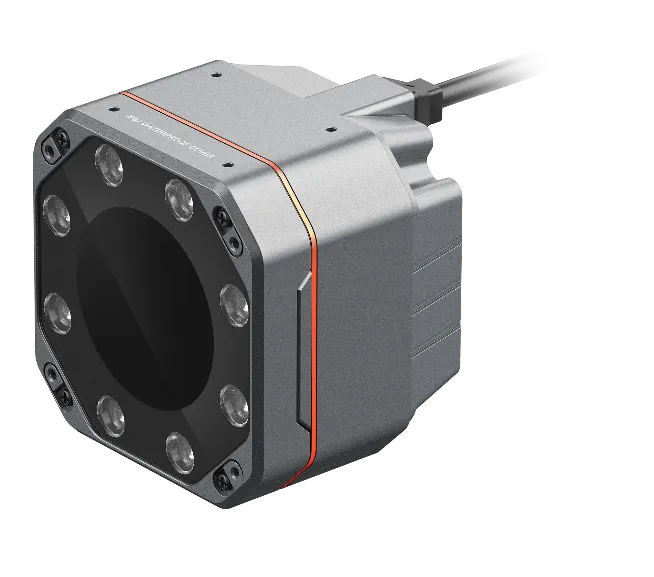

Area Scan Camera, 12MP, 3rd Gen., USB3.0, Color, MAX, 16mm liquid lens, white lighting, with lens cover
The devices with PRO version and MAX version support waterproof connector.
Camera Solutions
Beschreibung
PRO and MAX versions add precision temperature control for fast thermal stabilization. On PRO and MAX colour models, automatic colour correction uses multi-spectral fusion. The MAX version integrates lens and light source, with on-board focusing and lighting control. Type-C interface provides higher transmission bandwidth. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
PRO and MAX versions offer a waterproof connector. — PRO and MAX versions add precision temperature control for fast thermal stabilization. — On PRO and MAX colour models, automatic colour correction uses multi-spectral fusion. — The MAX version integrates lens and light source, with on-board focusing and lighting control. — Type-C interface provides higher transmission bandwidth. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CT2CU0120/G/16LC/WN |
|---|---|
| Type | Area Scan Camera, 12MP, 3rd Gen., USB3.0, Color, MAX, 16mm liquid lens, white lighting, with lens cover |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1.1" |
| Resolution | 4096 × 3000 |
| Dynamic Range | 67.4 dB |
| SNR | 43.9 dB |
| Gain | 0 dB to 12 dB |
| Exposure Time | 20 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| Data Interface Type | Type-C interface |
| Digital I/O | 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Lens Mount | C-mount |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
