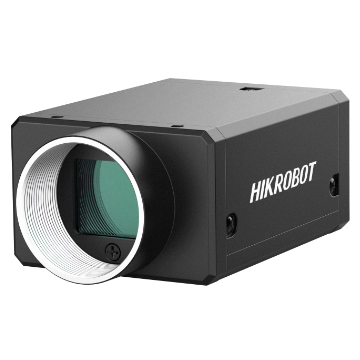

Area Scan Camera, 12MP, Dual USB3.0, Mono

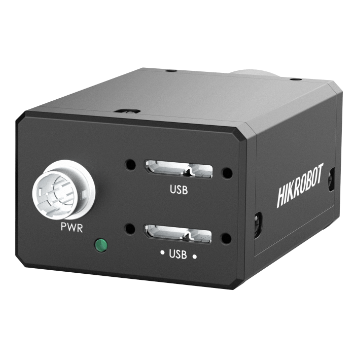

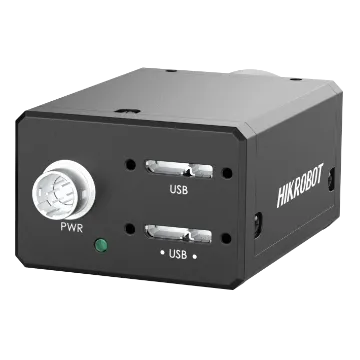

Adopts dual USB 3.0 interfaces to transmit data.
Camera Solutions
Beschreibung
New hardware platform optimises logic resources and reduces power consumption. Offers auto or manual gain, exposure, white balance, LUT, gamma correction, and Sequencer. Mounting holes on both top and bottom panels for flexible installation. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Dual USB 3.0 interfaces for data transmission. — New hardware platform optimises logic resources and reduces power consumption. — Offers auto or manual gain, exposure, white balance, LUT, gamma correction, and Sequencer. — Mounting holes on both top and bottom panels for flexible installation. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH120-60VM |
|---|---|
| Type | Area Scan Camera, 12MP, Dual USB3.0, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1.1" |
| Resolution | 4096 × 3000 |
| Max Frame Rate | 60.2 fps @ 4096 × 3000 Mono 8 |
| Dynamic Range | 75.7 dB |
| SNR | 42.1 dB |
| Gain | High full well capacity: 0 dB to 21.5 dB High sensitivity: 0 dB to 24 dB |
| Exposure Time | 20 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB 3.0 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB 3.0 Vision, GenlCam |
| Certification | CE, RoHS |
| Mono | Mono |
| Power Consumption 2 | Typ. 3.5 W @ 5 VDC (dual USB 3.0 interfaces provide power supply) |
