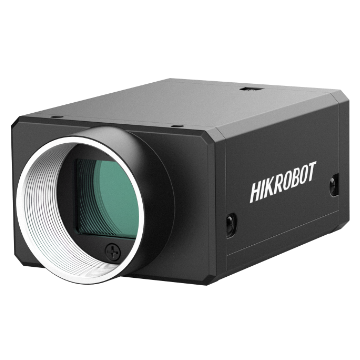

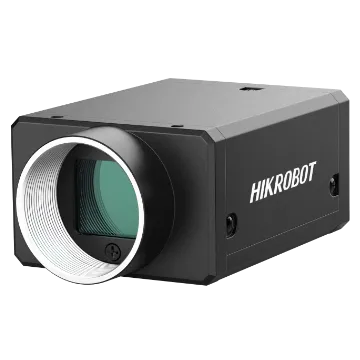

Area Scan Camera, 12MP, Dual USB3.0, Color

Name: Area Scan Camera, 12MP, Dual USB3.0, Color
Brand: HIKROBOT
SKU: MV-CH120-60VC

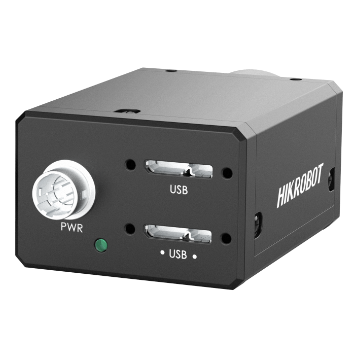

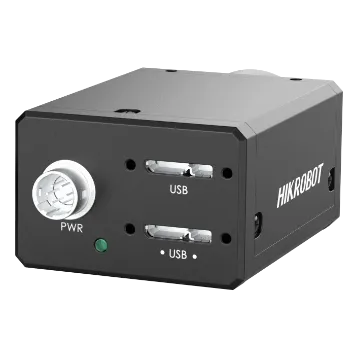

Adopts dual USB 3.0 interfaces to transmit data.

Send inquiry

Download datasheet (PDF)

Highlights

Dual USB 3.0 interfaces for data transmission.
New hardware platform optimises logic resources and reduces power consumption.
Offers auto or manual gain, exposure, white balance, LUT, gamma correction, and Sequencer.
Mounting holes on both top and bottom panels for flexible installation.
Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH120-60VC Category: Area & Line Scan Cameras

Area Scan Camera, 12MP, Dual USB3.0, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH120-60VC. Key data: resolution 4096 × 3000, sensor type CMOS, global shutter, max frame rate 60.2 fps @ 4096 × 3000 Bayer GB 8, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

New hardware platform optimises logic resources and reduces power consumption. Offers auto or manual gain, exposure, white balance, LUT, gamma correction, and Sequencer. Mounting holes on both top and bottom panels for flexible installation. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Area Scan Camera, 12MP, Dual USB3.0, Color (MV-CH120-60VC) at a glance: 4096 × 3000 resolution, Stacked BSI sensor, 1.1" sensor format, 3.45 μm × 3.45 μm pixel size, up to 60.2 fps, USB 3.0, compatible with USB 2.0 interface, C-mount lens mount and 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") housing. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Dual USB 3.0 interfaces for data transmission. — New hardware platform optimises logic resources and reduces power consumption. — Offers auto or manual gain, exposure, white balance, LUT, gamma correction, and Sequencer. — Mounting holes on both top and bottom panels for flexible installation. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CH120-60VC
Type	Area Scan Camera, 12MP, Dual USB3.0, Color
Sensor Type	CMOS, global shutter
Sensor Model	Stacked BSI
Pixel Size	3.45 μm × 3.45 μm
Sensor Size	1.1"
Resolution	4096 × 3000
Max Frame Rate	60.2 fps @ 4096 × 3000 Bayer GB 8
Dynamic Range	75.7 dB
SNR	42.1 dB
Gain	High full well capacity: 0 dB to 21.5 dB High sensitivity: 0 dB to 24 dB
Exposure Time	20 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/12 Bayer GB 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power Supply	9 VDC to 24 VDC, supports USB 3.0 power supply
Lens Mount	C-mount
Dimension	29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
Weight	Approx. 100 g (0.2 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with USB 3.0 Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	USB 3.0 Vision, GenlCam
Certification	CE, RoHS
Mono	Color
Power Consumption 2	Typ. 3.7 W @ 5 VDC (dual USB 3.0 interfaces provide power supply)
