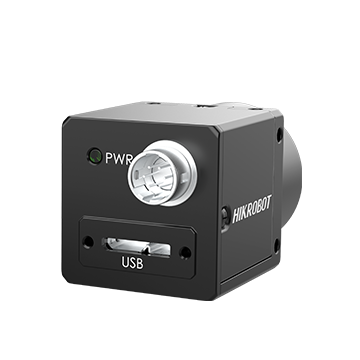

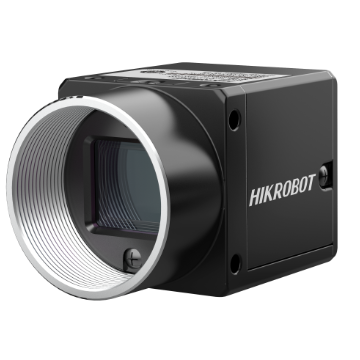

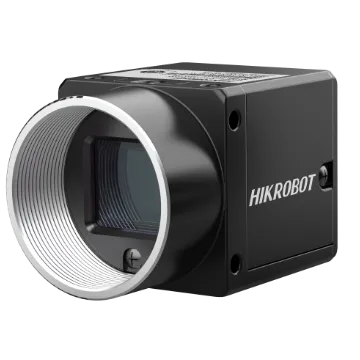

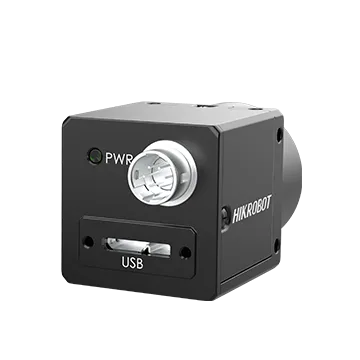

Area Scan Camera, 12MP, Mono
Adopts new hardware platform to optimize logical resource and reduce power consumption.
Camera Solutions
Beschreibung
Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. Supports CCM, Sequencer, Super Bayer, and Super Palette. Fresh structural design supports installation from four sides. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
New hardware platform optimises logic resources and reduces power consumption. — Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. — Supports CCM, Sequencer, Super Bayer, and Super Palette. — Fresh structural design supports installation from four sides. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH120-60UM |
|---|---|
| Type | Area Scan Camera, 12MP, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1.1" |
| Resolution | 4096 × 3000 |
| Max Frame Rate | 30.7 fps @ 4096 × 3000 Mono 8 |
| Dynamic Range | 67.5 dB |
| SNR | 44.2 dB |
| Gain | 0 dB to 12 dB |
| Exposure Time | 45 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (–14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB 3.0 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 2.2 W @ 5 VDC (USB 3.0 provides power supply) |
