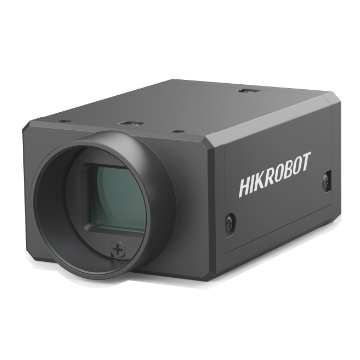

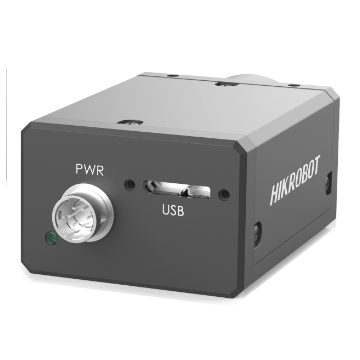

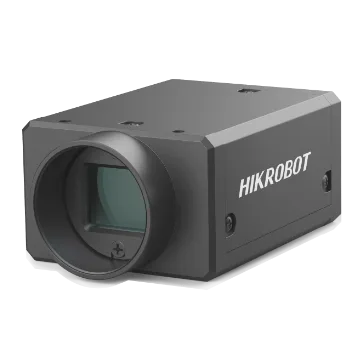

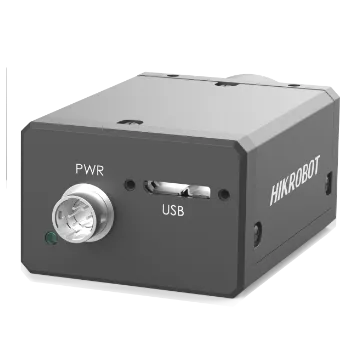

Area Scan Camera, 12MP, USB3, IMX304, High-speed version, Mono
Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc.
- Offers auto or manual gain and exposure, plus manual gamma correction and LUT.
- Supports hardware triggering, software triggering, and free-run mode.
- Supports custom ROI and horizontal/vertical image flipping.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 12MP, USB3, IMX304, High-speed version, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH120-11UM. Key data: resolution 4096 × 3000, sensor type CMOS, global shutter, max frame rate 30.3 fps @ 4096 × 3000 Mono 8, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 12MP, USB3, IMX304, Mono, V4 (MV-CH120-10UM)
- Area Scan Camera, 12MP, USB3, IMX304, Mono (MV-CH120-10UM(EoL))
- Area Scan Camera, 12 MP 1.1″ CMOS USB3.0 (MV-CH120-10UM(TK))
- Area Scan Camera, 12MP, USB3, IMX304, High-speed version, Color (MV-CH120-11UC)
- Area Scan Camera, 12MP, 10GigE, IMX253, Color, M58-mount (MV-CH120-15TC-M58S-NF)
- Area Scan Camera, 12MP, 10GigE, IMX253, Mono, M58-mount (MV-CH120-15TM-M58S-NF)
- Area Scan Camera, 12MP, GigE, XGS12000, Color, V4 (MV-CH120-20GC)
- Area Scan Camera, 12MP, GigE, XGS12000, Mono, V4 (MV-CH120-20GM)
Description
Supports hardware triggering, software triggering, and free-run mode. Supports custom ROI and horizontal/vertical image flipping. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Offers auto or manual gain and exposure, plus manual gamma correction and LUT. — Supports hardware triggering, software triggering, and free-run mode. — Supports custom ROI and horizontal/vertical image flipping. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH120-11UM |
|---|---|
| Type | Area Scan Camera, 12MP, USB3, IMX304, High-speed version, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX304 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1.1" |
| Resolution | 4096 × 3000 |
| Max Frame Rate | 30.3 fps @ 4096 × 3000 Mono 8 |
| Dynamic Range | 72.2 dB |
| SNR | 40.2 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed /12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power Supply | 9 VDC to 24 VDC, supports USB power supply |
| Lens Mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 4.67 W @ 5 VDC (USB 3.0 provides power supply) |
