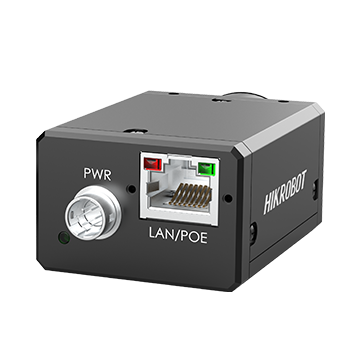

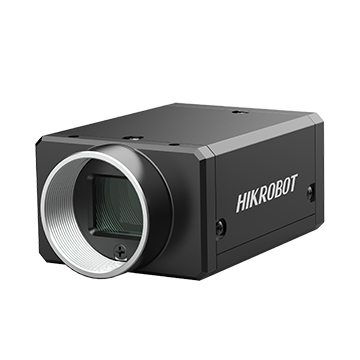

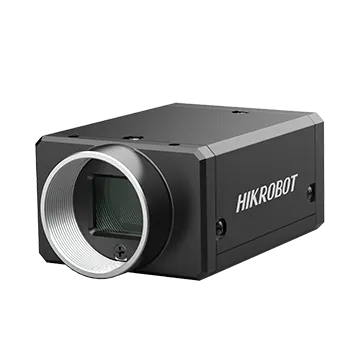

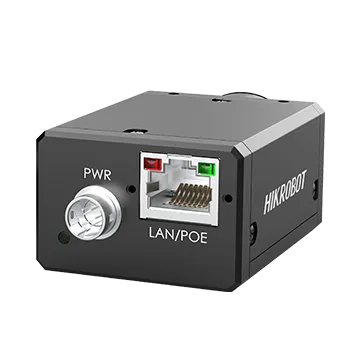

Area Scan Camera, 12MP, GigE, IMX304, Mono
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Camera Solutions
Beschreibung
Offers auto exposure and manual gain, LUT, and gamma correction. Up to 128 MB of onboard memory supports burst transmission and retransmission. Supports hardware and software triggering. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Product Highlights
Connects via GigE, with cable runs up to 100 m and no repeater required. — Offers auto exposure and manual gain, LUT, and gamma correction. — Up to 128 MB of onboard memory supports burst transmission and retransmission. — Supports hardware and software triggering. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Specifications
| Product Model | MV-CH120-10GM(EoL) |
|---|---|
| Type | Area Scan Camera, 12MP, GigE, IMX304, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX304 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1.1" |
| Resolution | 4096 × 3000 |
| Max Frame Rate | 9.4 fps @ 4096 × 3000 |
| Dynamic Range | 72.2 dB |
| SNR | 40.2 dB |
| Gain | 0 dB to 20 dB |
| Exposure Time | UltraShort exposure mode: 2 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10p/12/12p |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 12 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 140 g (0.3 lb.) |
| Ingress Protection | IP 30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 4.3 W@12 VDC |
