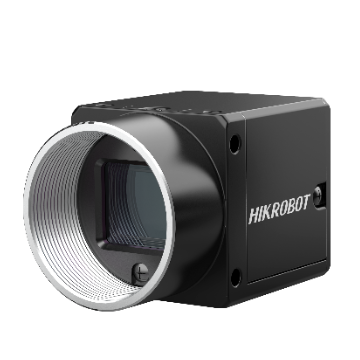

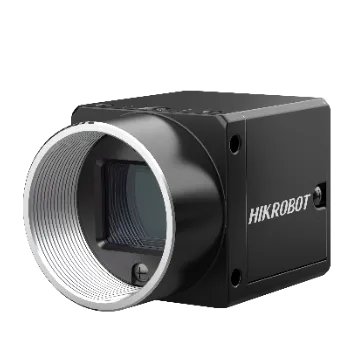

Area Scan Camera, 12MP, USB3, IMX304, Color, V4

Name: Area Scan Camera, 12MP, USB3, IMX304, Color, V4
Brand: HIKROBOT
SKU: MV-CH120-10UC

Supports LSC, Sequencer, passive transmission, Super Bayer, Super Palette, etc.

Send inquiry

Download datasheet (PDF)

Highlights

Supports LSC, Sequencer, passive transmission, Super Bayer, and Super Palette.
Compact body with panel mounting holes on four sides for flexible setup.
Supports hardware trigger, software trigger, and free-run modes.
Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH120-10UC Category: Area & Line Scan Cameras

Area Scan Camera, 12MP, USB3, IMX304, Color, V4 is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH120-10UC. Key data: resolution 4096 × 3000, sensor type CMOS, global shutter, max frame rate 30.5 fps @ 4096 × 3000 Bayer RG 8, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Compact body with panel mounting holes on four sides for flexible setup. Supports hardware trigger, software trigger, and free-run modes. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Area Scan Camera, 12MP, USB3, IMX304, Color, V4 (MV-CH120-10UC) at a glance: 4096 × 3000 resolution, Sony® IMX304 sensor, 1.1” sensor format, 3.45 μm × 3.45 μm pixel size, up to 30.5 fps, Color output, USB 3.0, compatible with USB 2.0 interface and C-mount lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Supports LSC, Sequencer, passive transmission, Super Bayer, and Super Palette. — Compact body with panel mounting holes on four sides for flexible setup. — Supports hardware trigger, software trigger, and free-run modes. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CH120-10UC
Type	Area Scan Camera, 12MP, USB3, IMX304, Color, V4
Sensor Type	CMOS, global shutter
Sensor Model	Sony® IMX304
Pixel Size	3.45 μm × 3.45 μm
Sensor Size	1.1”
Resolution	4096 × 3000
Max Frame Rate	30.5 fps @ 4096 × 3000 Bayer RG 8
Dynamic Range	70.4 dB
SNR	40.2 dB
Gain	0 dB to 24 dB
Exposure Time	UltraShort exposure mode: 2 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Mono Color	Color
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	USB 3.0, compatible with USB 2.0

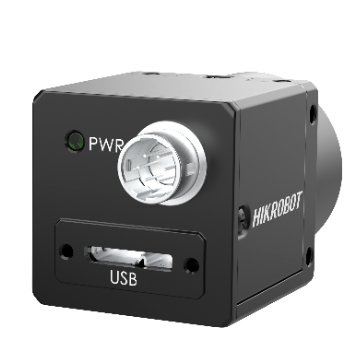

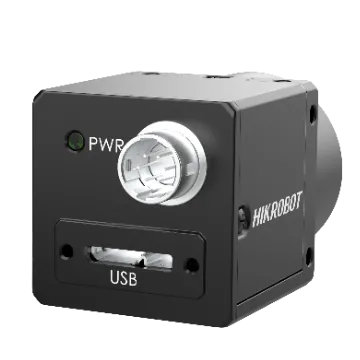

Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Power Supply	9 VDC to 24 VDC, supports USB 3.0 power supply
Lens Mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 80 g (0.2 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with USB 3.0 Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 3.2 W @ 5 VDC (USB 3.0 provides power supply)
