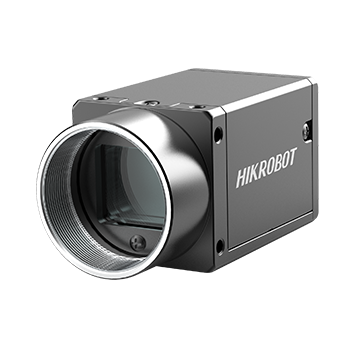

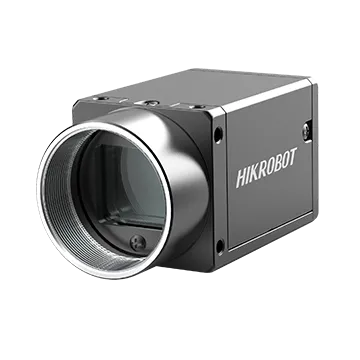

Area Scan Camera, 12MP, GigE, IMX304, Color, V4
Supports LSC, Sequencer, passive transmission, Super Bayer, Super Palette, etc.
Camera Solutions
Beschreibung
Compact body with panel mounting holes on four sides for flexible setup. Connects via GigE, with cable runs up to 100 m and no repeater required. Supports hardware trigger, software trigger, and free-run modes. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Product Highlights
Supports LSC, Sequencer, passive transmission, Super Bayer, and Super Palette. — Compact body with panel mounting holes on four sides for flexible setup. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Supports hardware trigger, software trigger, and free-run modes. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Specifications
| Product Model | MV-CH120-10GC |
|---|---|
| Type | Area Scan Camera, 12MP, GigE, IMX304, Color, V4 |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX304 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1.1" |
| Resolution | 4096 × 3000 |
| Max Frame Rate | 9.9 fps @ 4096 × 3000 Bayer RG 8 |
| Dynamic Range | 70.4 dB |
| SNR | 40 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | UltraShort exposure mode: 2 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer RG 8/10/10Packed /12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |

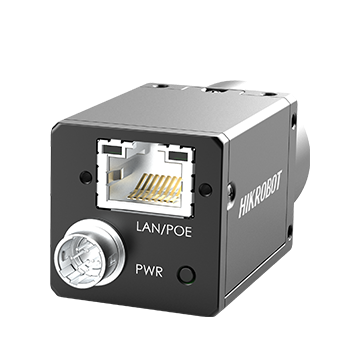

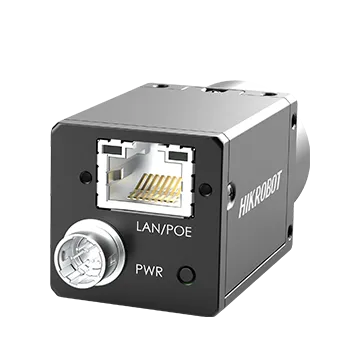

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | 100 g (0.2 lb.) |
| Ingress Protection | IP 40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision 2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 3.0 W@12 VDC |
