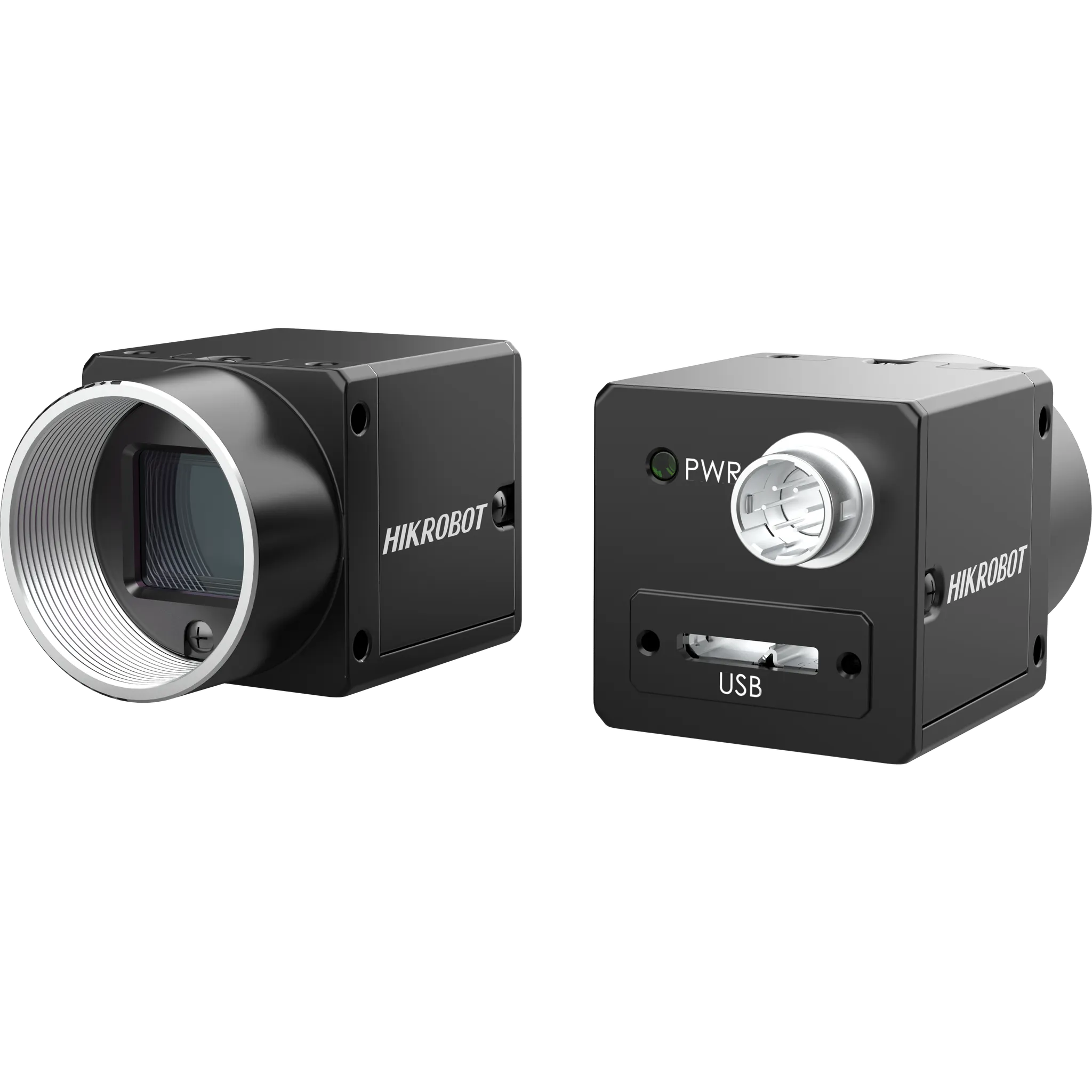

Area Scan Camera, 12 MP 1.1″ CMOS USB3.0
Supports LSC, Sequencer, passive transmission, Super Bayer, Super Palette, etc.
- Supports LSC, Sequencer, passive transmission, Super Bayer, and Super Palette.
- Compact body with panel mounting holes on four sides for flexible setup.
- Supports hardware trigger, software trigger, and free-run modes.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 12 MP 1.1″ CMOS USB3.0 is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH120-10UM(TK). Key data: resolution 4096 × 3000, sensor type CMOS, global shutter, max frame rate 23.1 fps @4096 × 3000. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 12MP, USB3, IMX304, Color, V4 (MV-CH120-10UC)
- Area Scan Camera, 12MP, USB3, IMX304, Color (MV-CH120-10UC(EoL))
- Area Scan Camera, 12MP, USB3, IMX304, Mono, V4 (MV-CH120-10UM)
- Area Scan Camera, 12MP, USB3, IMX304, Mono (MV-CH120-10UM(EoL))
- Area Scan Camera, 12MP, USB3, IMX304, High-speed version, Color (MV-CH120-11UC)
- Area Scan Camera, 12MP, USB3, IMX304, High-speed version, Mono (MV-CH120-11UM)
- Area Scan Camera, 12MP, 10GigE, IMX253, Color, M58-mount (MV-CH120-15TC-M58S-NF)
- Area Scan Camera, 12MP, 10GigE, IMX253, Mono, M58-mount (MV-CH120-15TM-M58S-NF)
Description
Compact body with panel mounting holes on four sides for flexible setup. Supports hardware trigger, software trigger, and free-run modes. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Supports LSC, Sequencer, passive transmission, Super Bayer, and Super Palette. — Compact body with panel mounting holes on four sides for flexible setup. — Supports hardware trigger, software trigger, and free-run modes. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH120-10UM(TK) |
|---|---|
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX304 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1.1” |
| Resolution | 4096 × 3000 |
| Max Frame Rate | 23.1 fps @4096 × 3000 |
| Dynamic Range | 72.2 dB |
| SNR | 40.2 dB |
| Gain | 0 dB to 20 dB |
| Exposure Time | UltraShort exposure mode: 1 μs to 14 μs<br/>Standard exposure mode: 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10p/12/12p |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0, 128 GB Onboard Memory |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power Supply | 12 VDC, supports USB3.0 power supply |
| Lens Mount | C-Mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F)<br/>Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client Software | MVS or third-party software meeting with USB 3.0 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB 3.0 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 3.5 W@5 VDC (USB3.0 provides power supply) |
| Image Buffer | 128 MB |
| Product Name | 12 MP 1.1" CMOS USB3.0 Area Scan Camera |
| Type | Area Scan Camera, 12 MP 1.1″ CMOS USB3.0 |
