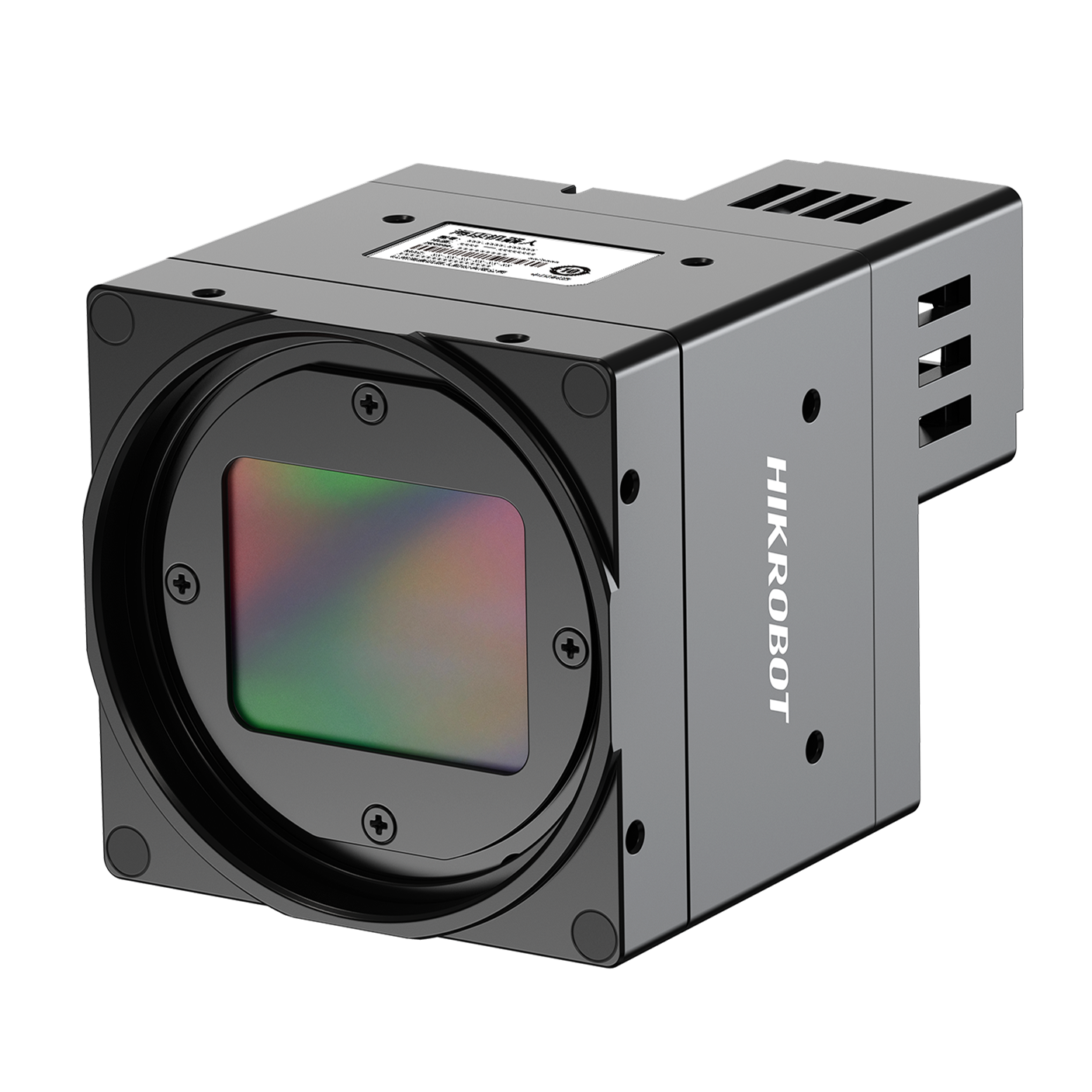

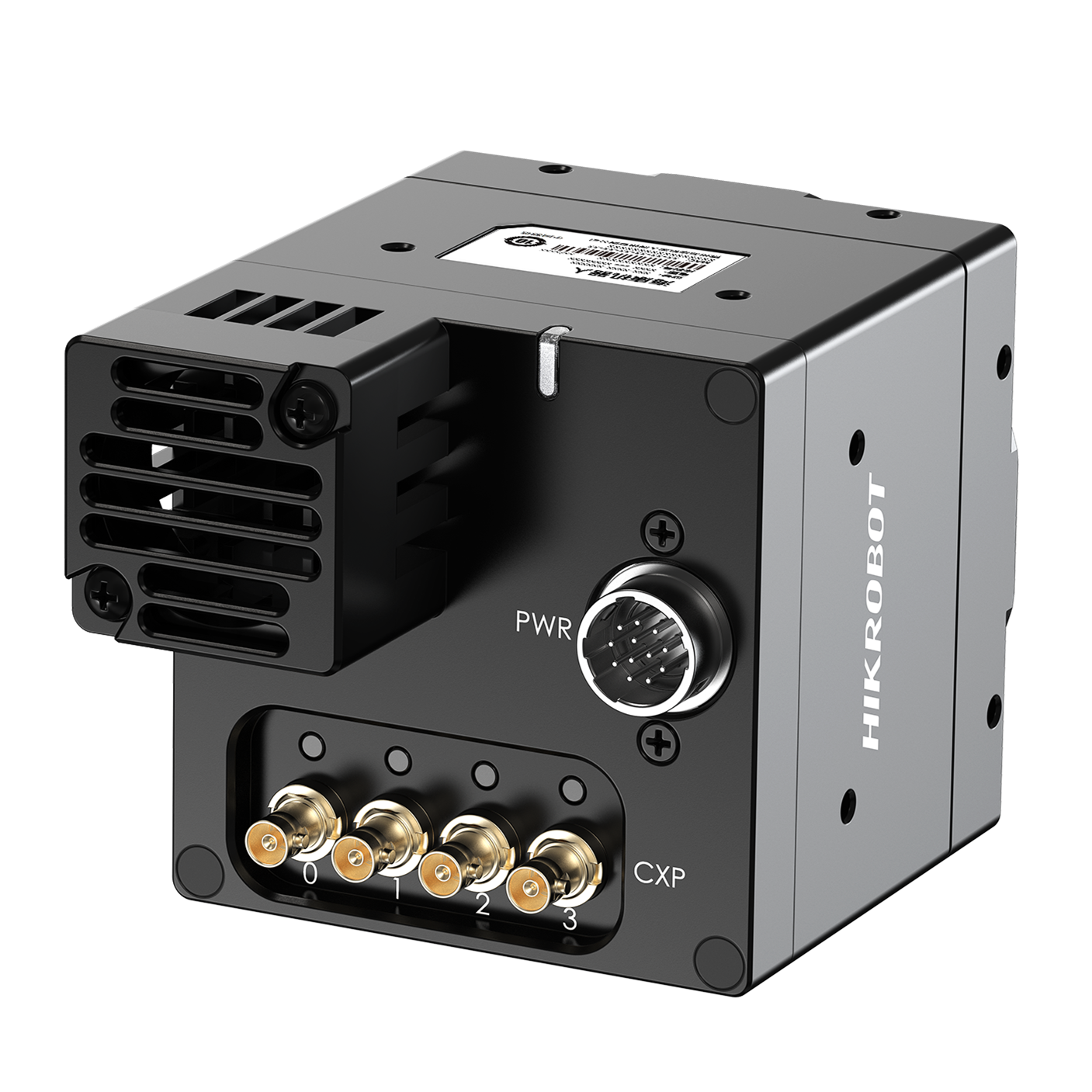

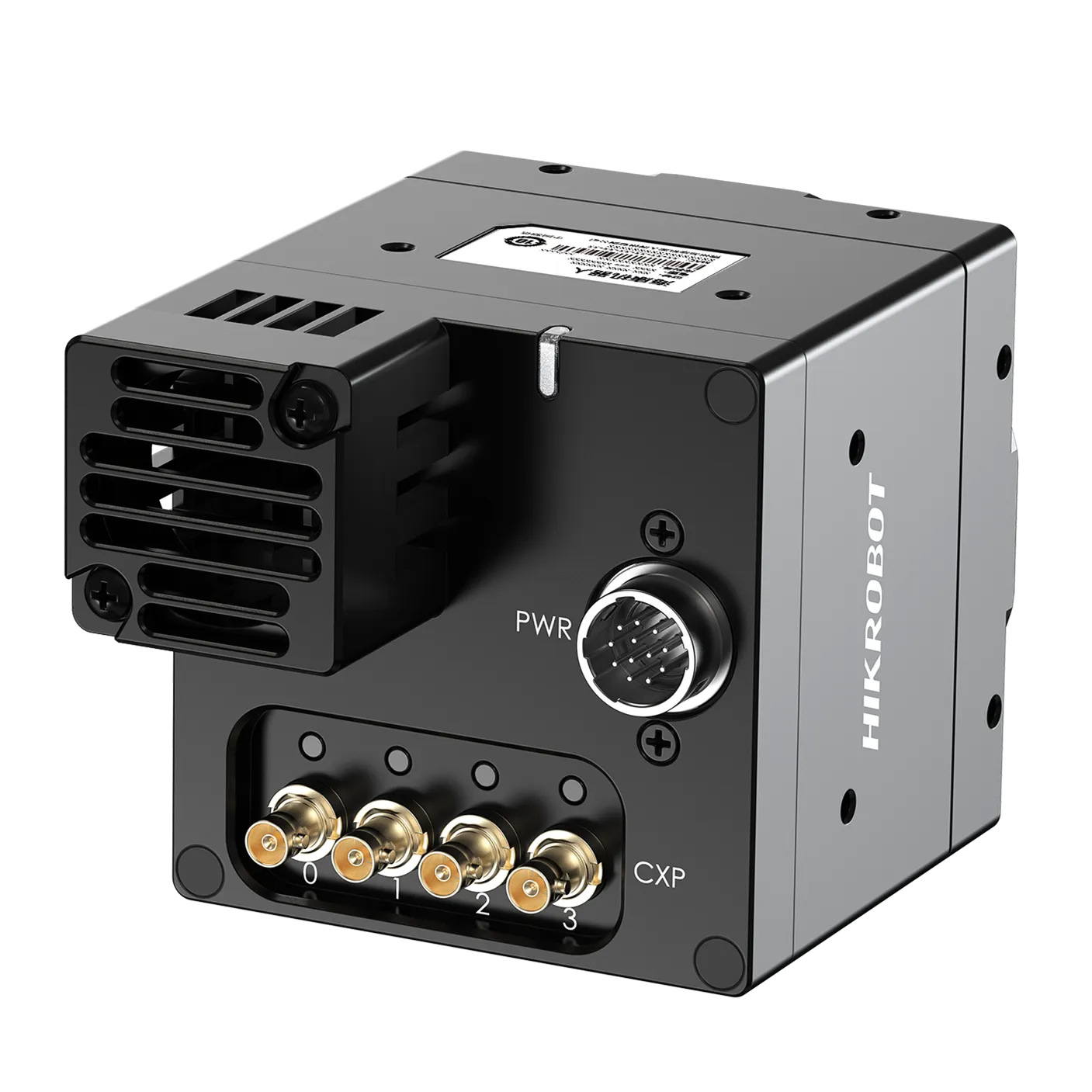

Area Scan Camera, 14MP, GSPRINT5514, 4-link CXP-12, M58-mount, with fan, Mono
Resolution of 4608 × 3072, pixel size of 5.5 µm × 5.5 µm.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Transmits data over a CXP-12 interface. Works with the CoaXPress protocol and the GenICam standard.
Product Highlights
Resolution of 4608 × 3072 with 5.5 µm × 5.5 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Transmits data over a CXP-12 interface. — Works with the CoaXPress protocol and the GenICam standard.
Specifications
| Product Model | MV-CH140-90YM-M58S-NF |
|---|---|
| Type | Area Scan Camera, 14MP, GSPRINT5514, 4-link CXP-12, M58-mount, with fan, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel Gsprint 5514 |
| Pixel Size | 5.5 μm × 5.5 μm |
| Sensor Size | 25.34 mm × 16.9 mm |
| Resolution | 4608 × 3072 |
| Max Frame Rate | 339 fps @ 4608 × 3072 Mono 8 |
| Dynamic Range | 75 dB |
| SNR | 44.7 dB |
| Gain | Supports 1.0 ×, 1.6 ×, 2.3 ×, 2.9 ×, 5.0 × |
| Exposure Time | 2 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Lens Mount | M58 × 0.75, flange back length 11.48 mm |
| Dimension | 60 mm × 60 mm × 77 mm (2.4" × 2.4" × 3.0") (without lens mount) |
| Weight | Approx. 790 g (1.7 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 15.1 W @ 24 VDC |
