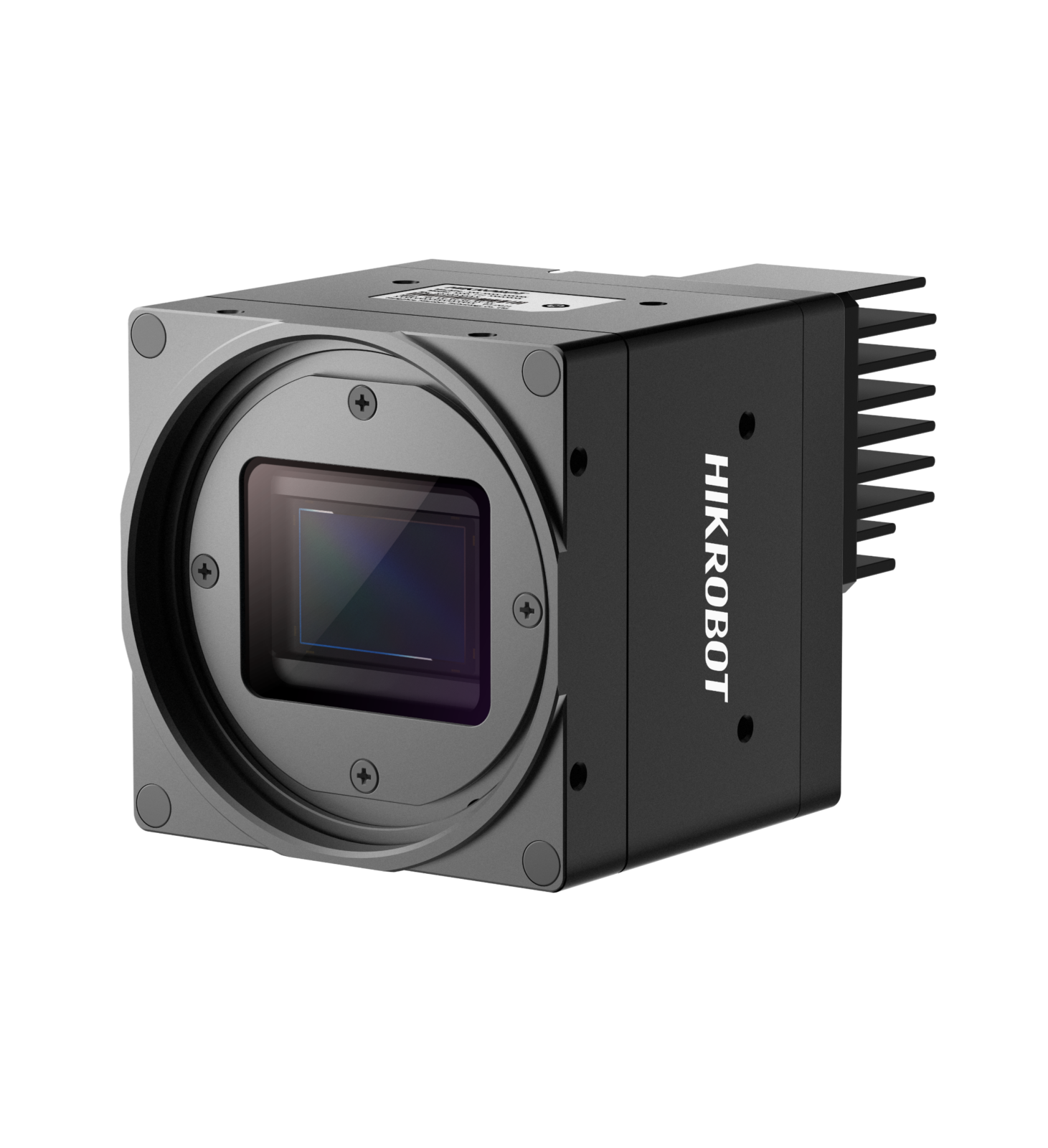

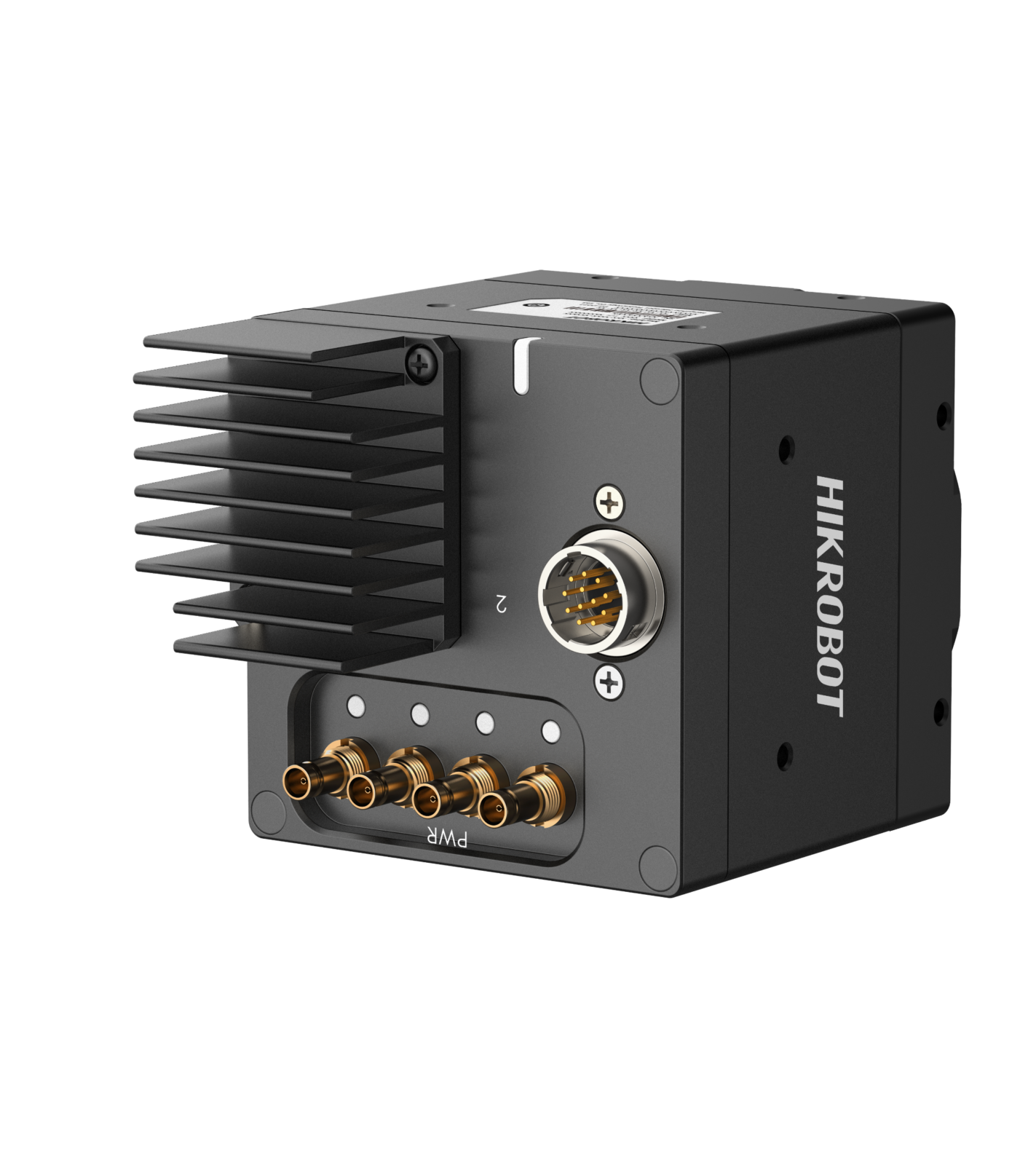

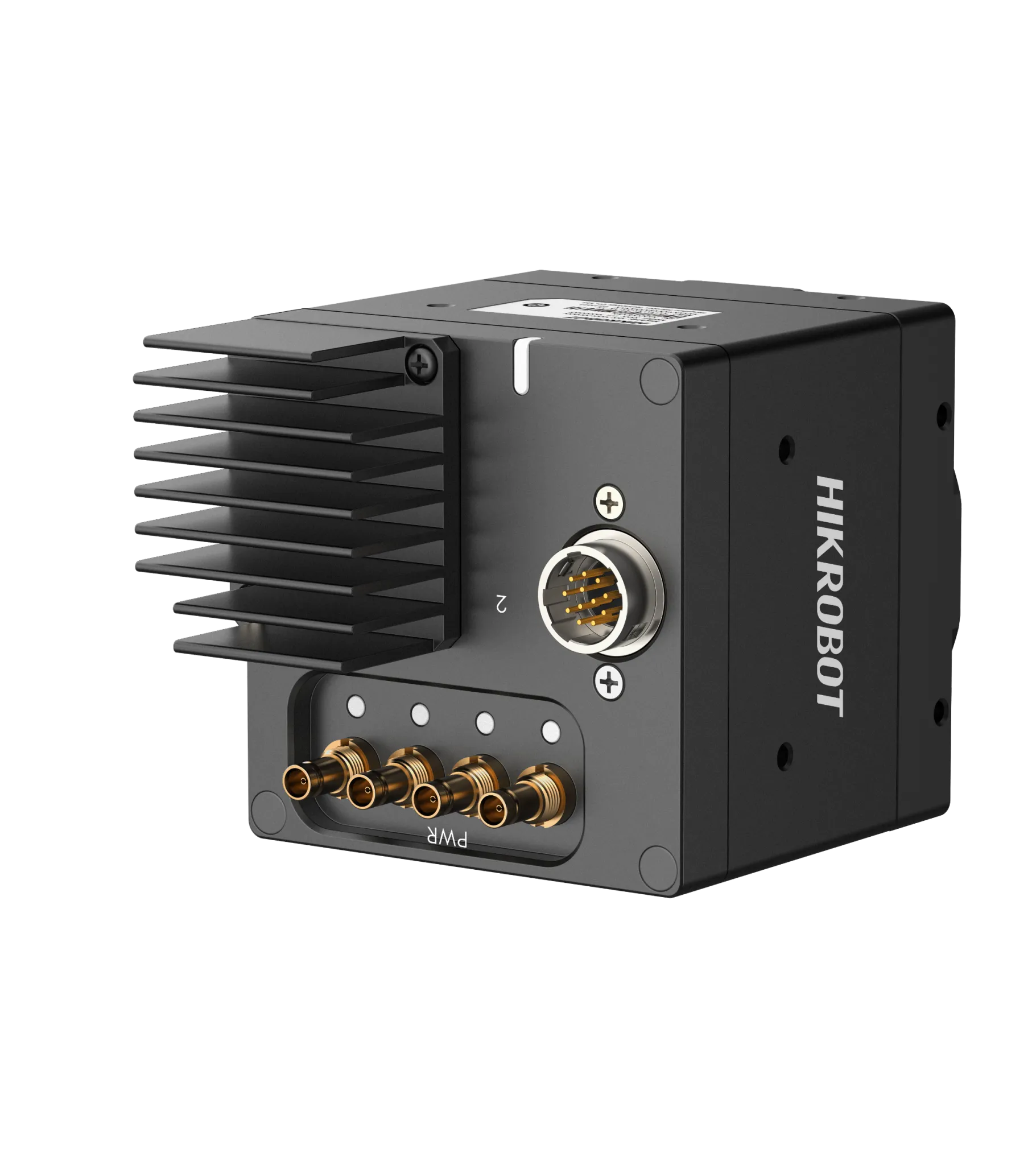

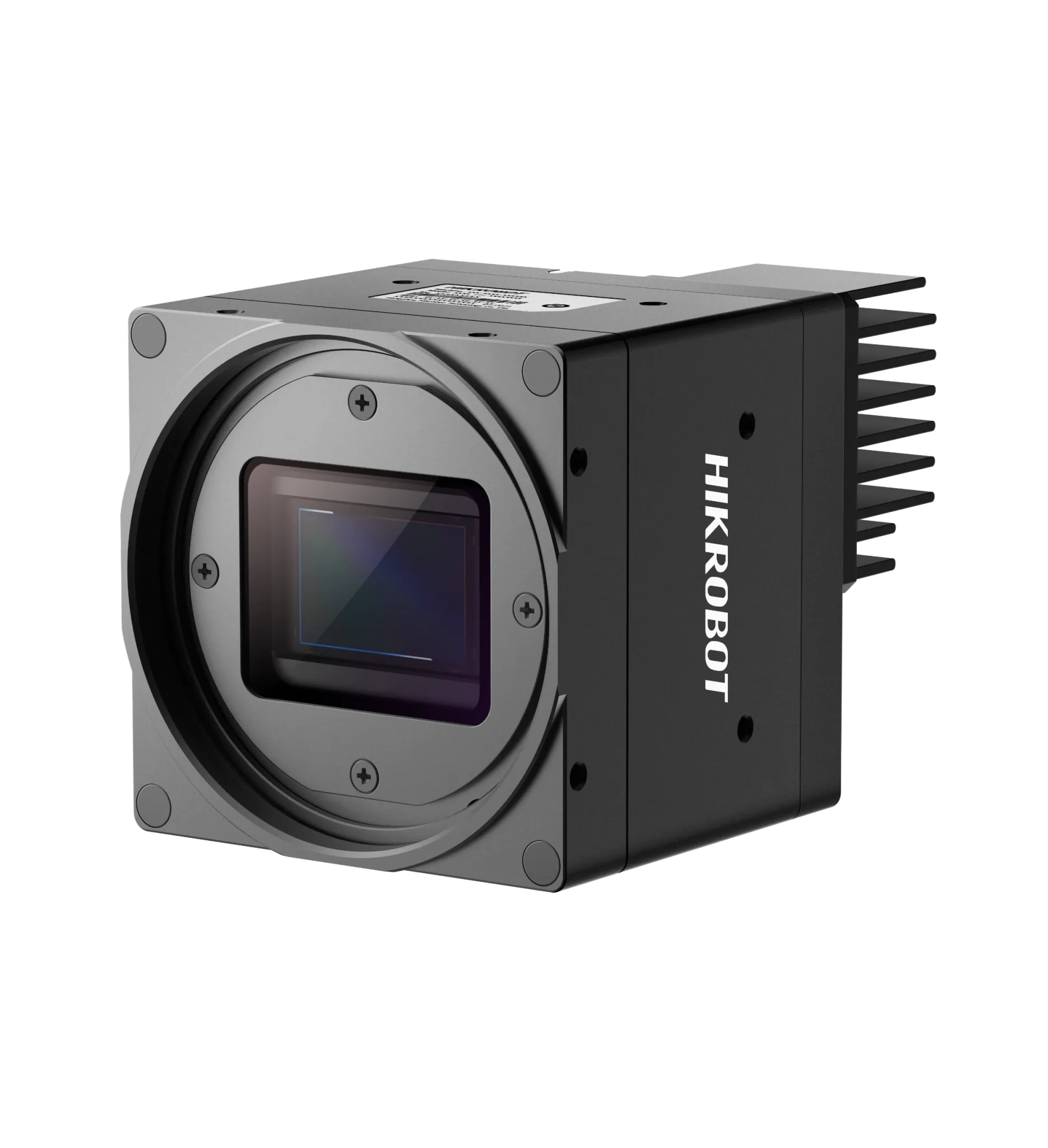

Area Scan Camera, 14MP, GSPRINT5514, 4-link CXP-6, M58-mount, Fanless, Mono

Name: Area Scan Camera, 14MP, GSPRINT5514, 4-link CXP-6, M58-mount, Fanless, Mono
Brand: HIKROBOT
SKU: MV-CH140-90XM-M58S-NN

Resolution of 4608 × 3072, pixel size of 5.5 µm × 5.5 µm.

Send inquiry

Download datasheet (PDF)

Highlights

Resolution of 4608 × 3072 with 5.5 µm × 5.5 µm pixels.
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality.
Transmits data over a CXP-6 interface.
Works with the CoaXPress protocol and the GenICam standard.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH140-90XM-M58S-NN Category: Area & Line Scan Cameras

Area Scan Camera, 14MP, GSPRINT5514, 4-link CXP-6, M58-mount, Fanless, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH140-90XM-M58S-NN. Key data: resolution 4608 × 3072, sensor type CMOS, global shutter, max frame rate 169 fps @ 4608 × 3072 Mono 8, data interface CoaXPress with DIN interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Transmits data over a CXP-6 interface. Works with the CoaXPress protocol and the GenICam standard.

Area Scan Camera, 14MP, GSPRINT5514, 4-link CXP-6, M58-mount, Fanless, Mono (MV-CH140-90XM-M58S-NN) at a glance: 4608 × 3072 resolution, Gpixel Gsprint 5514 sensor, 25.34 mm × 16.9 mm sensor format, 5.5 μm × 5.5 μm pixel size, up to 169 fps, Mono output, CoaXPress with DIN interface interface and M58 × 0.75, flange back length 11.48 mm lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Resolution of 4608 × 3072 with 5.5 µm × 5.5 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Transmits data over a CXP-6 interface. — Works with the CoaXPress protocol and the GenICam standard.

Specifications

Product Model	MV-CH140-90XM-M58S-NN
Type	Area Scan Camera, 14MP, GSPRINT5514, 4-link CXP-6, M58-mount, Fanless, Mono
Sensor Type	CMOS, global shutter
Sensor Model	Gpixel Gsprint 5514
Pixel Size	5.5 μm × 5.5 μm
Sensor Size	25.34 mm × 16.9 mm
Resolution	4608 × 3072
Max Frame Rate	169 fps @ 4608 × 3072 Mono 8
Dynamic Range	75 dB
SNR	44.7 dB
Gain	Supports 1.0 ×, 1.6 ×, 2.3 ×, 2.9 ×, 5.0 ×
Exposure Time	2 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/12
Mono Color	Mono
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	CoaXPress with DIN interface
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power Supply	12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Lens Mount	M58 × 0.75, flange back length 11.48 mm
Dimension	60 mm × 60 mm × 76 mm (2.4" × 2.4" × 3.0") (without lens mount)
Weight	Approx. 790 g (1.7 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or frame grabber software meeting with CoaXPress Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	CoaXPress, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 15.1 W @ 24 VDC
