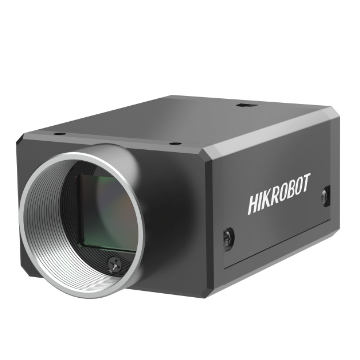

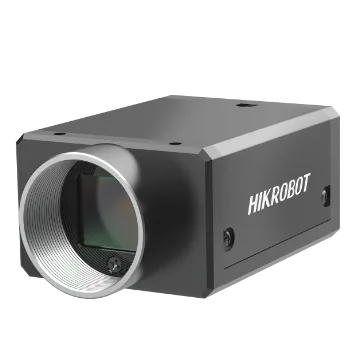

Area Scan Camera, 14MP, Mono
Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT correction, etc.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Supports custom ROI and horizontal/vertical image flipping. Supports hardware trigger, software trigger, and free-run. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Offers auto or manual gain, exposure, gamma correction, and LUT. — Supports custom ROI and horizontal/vertical image flipping. — Supports hardware trigger, software trigger, and free-run. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH140-60UM |
|---|---|
| Type | Area Scan Camera, 14MP, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 3 μm × 3 μm |
| Sensor Size | 1" |
| Resolution | 4708 × 2824 |
| Max Frame Rate | 27 fps @ 4708 × 2824 Mono 8 |
| Dynamic Range | 56.9 dB |
| SNR | 41.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 80 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |

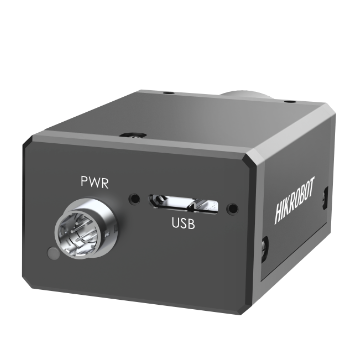

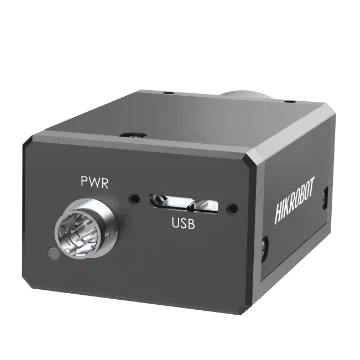

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 113 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS |
| Power Consumption 2 | Typ. 4.0 W @ 5 VDC (USB 3.0 provides power supply) |
