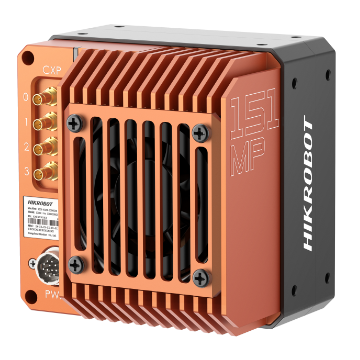

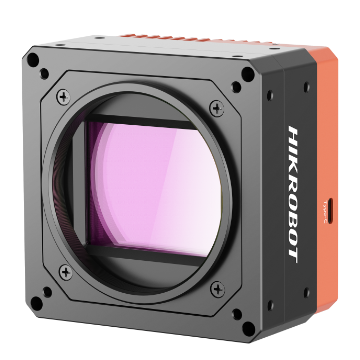

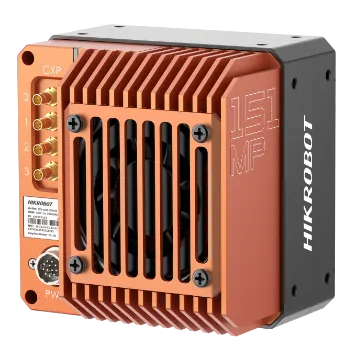

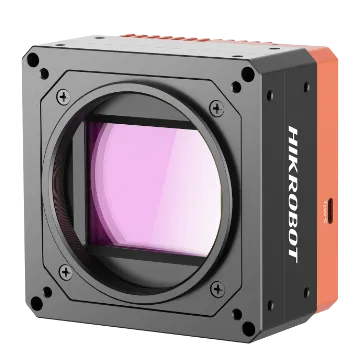

Area Scan Camera, 151MP, CoaXPress, IMX411, V2, color, M72-mount, TEC with fan

Name: Area Scan Camera, 151MP, CoaXPress, IMX411, V2, color, M72-mount, TEC with fan
Brand: HIKROBOT
SKU: MV-CH1510-10XC-M72-TF V2

Supports highly-integrated hardware platform with low power consumption and higher cooling efficiency.

Send inquiry

Download datasheet (PDF)

Highlights

Highly integrated hardware platform with low power consumption and efficient cooling.
New design with a removable lens adapter ring.
FFC, CCM, and Super Bayer supported.
TEC mode supported; exposure times up to 30 seconds.
16-bit ADC output delivers high-precision sampling and wide dynamic range.
Transmits data over a CXP-6 interface.
Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH1510-10XC-M72-TF V2 Category: Area & Line Scan Cameras

Area Scan Camera, 151MP, CoaXPress, IMX411, V2, color, M72-mount, TEC with fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH1510-10XC-M72-TF V2. Key data: resolution 14192 × 10640, sensor type CMOS, rolling shutter, max frame rate 6.2 fps @14192 × 10640 Bayer RG 8, data interface CoaXPress with DIN interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

New design with a removable lens adapter ring. FFC, CCM, and Super Bayer supported. TEC mode supported; exposure times up to 30 seconds. 16-bit ADC output delivers high-precision sampling and wide dynamic range. Transmits data over a CXP-6 interface. Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Area Scan Camera, 151MP, CoaXPress, IMX411, V2, color, M72-mount, TEC with fan (MV-CH1510-10XC-M72-TF V2) at a glance: 14192 × 10640 resolution, Sony® IMX411 sensor, 66.7 mm sensor format, 3.76 μm × 3.76 μm pixel size, up to 6.2 fps, Color output, CoaXPress with DIN interface interface and M72*0.75, flange back length 19.55 mm lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Highly integrated hardware platform with low power consumption and efficient cooling. — New design with a removable lens adapter ring. — FFC, CCM, and Super Bayer supported. — TEC mode supported; exposure times up to 30 seconds. — 16-bit ADC output delivers high-precision sampling and wide dynamic range. — Transmits data over a CXP-6 interface. — Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CH1510-10XC-M72-TF V2
Type	Area Scan Camera, 151MP, CoaXPress, IMX411, V2, color, M72-mount, TEC with fan
Sensor Type	CMOS, rolling shutter
Sensor Model	Sony® IMX411
Pixel Size	3.76 μm × 3.76 μm
Sensor Size	66.7 mm
Resolution	14192 × 10640
Max Frame Rate	6.2 fps @14192 × 10640 Bayer RG 8
Dynamic Range	78.8 dB
SNR	46.4 dB
Gain	0 dB to 40 dB
Exposure Time	15 μs to 30 sec
Exposure Mode	Off/Once/Continuous exposure mode, supports Rolling and Global Reset
Pixel Format	Mono 8/10/12/16 Bayer RG 8/10/12/16 RGB 8
Mono Color	Color
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Not supported
Reverse Image	Supports horizontal reverse image output
Data Interface	CoaXPress with DIN interface
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power Supply	24 VDC
Lens Mount	M72*0.75, flange back length 19.55 mm
Dimension	100 mm × 100 mm × 82 mm (3.9" × 3.9" × 3.2")
Weight	Approx. 1.2 kg (2.6 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	Frame grabber software meeting with CoaXPress Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux (8 GB memory or above)
Compatibility	CoaXPress, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Camera with TEC non-cooling: Typ. 23.2 W @ 24 VDC Camera with TEC cooling: Typ. 38 .2 W @ 24 VDC
