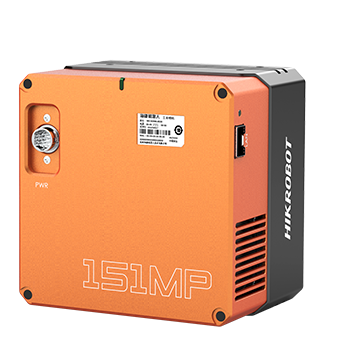

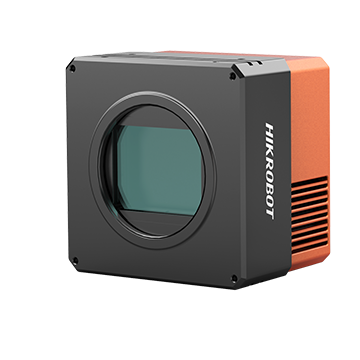

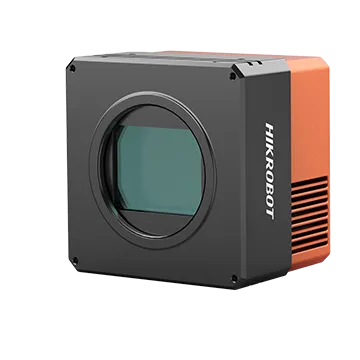

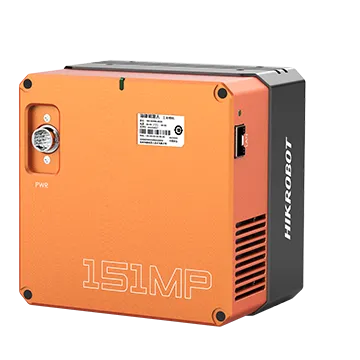

Area Scan Camera, 151MP, IMX411, 10G BASE-X, Mono, M72-mount, with TEC and fan

Name: Area Scan Camera, 151MP, IMX411, 10G BASE-X, Mono, M72-mount, with TEC and fan
Brand: HIKROBOT
SKU: MV-CH1510-10FM-M72-TF

Supports Binning, LSC Sequencer, FFC and other ISP functions.

Send inquiry

Download datasheet (PDF)

Highlights

Binning, LSC Sequencer, FFC, and other ISP functions.
10 GigE over Fibre transmits data up to 300 m.
TEC lowers sensor temperature for high-quality images during long exposures.
Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH1510-10FM-M72-TF Category: Area & Line Scan Cameras

Area Scan Camera, 151MP, IMX411, 10G BASE-X, Mono, M72-mount, with TEC and fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH1510-10FM-M72-TF. Key data: resolution 14208 × 10640, sensor type CMOS, rolling shutter, max frame rate 6.2 fps @ 14208 × 10640 Mono 8, data interface 10 Gigabit Ethernet (10000 Mbit/s). Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

10 GigE over Fibre transmits data up to 300 m. TEC lowers sensor temperature for high-quality images during long exposures. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Area Scan Camera, 151MP, IMX411, 10G BASE-X, Mono, M72-mount, with TEC and fan (MV-CH1510-10FM-M72-TF) at a glance: 14208 × 10640 resolution, Sony® IMX411 sensor, 66.7 mm sensor format, 3.76 μm × 3.76 μm pixel size, up to 6.2 fps, Mono output, 10 Gigabit Ethernet (10000 Mbit/s) interface and M72*0.75, flange back length 19.55 mm lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Binning, LSC Sequencer, FFC, and other ISP functions. — 10 GigE over Fibre transmits data up to 300 m. — TEC lowers sensor temperature for high-quality images during long exposures. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Specifications

Product Model	MV-CH1510-10FM-M72-TF
Type	Area Scan Camera, 151MP, IMX411, 10G BASE-X, Mono, M72-mount, with TEC and fan
Sensor Type	CMOS, rolling shutter
Sensor Model	Sony® IMX411
Pixel Size	3.76 μm × 3.76 μm
Sensor Size	66.7 mm
Resolution	14208 × 10640
Max Frame Rate	6.2 fps @ 14208 × 10640 Mono 8
Dynamic Range	78.8 dB
SNR	45 dB
Gain	0 dB to 36 dB
Exposure Time	30 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode, supports Rolling mode and Global Reset
Pixel Format	Mono 8/10/10Packed/12/12Packed/16
Mono Color	Mono
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse Image	Supports horizontal reverse image output
Data Interface	10 Gigabit Ethernet (10000 Mbit/s)
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power Supply	24 VDC
Lens Mount	M72*0.75, flange back length 19.55 mm
Dimension	120 mm × 120 mm × 89 mm (4.7" × 4.7" × 3.5")
Weight	Approx. 2.5 kg (5.5 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with GigE Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 11.28 W @ 24 VDC (non-TEC mode) Typ. 48.96 W @ 24 VDC (TEC mode)
