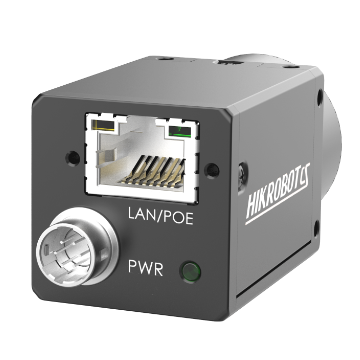

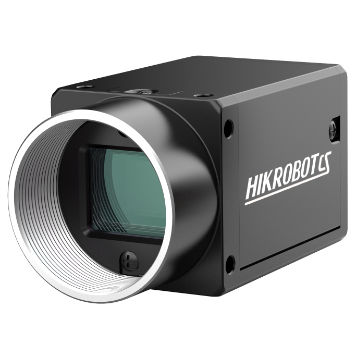

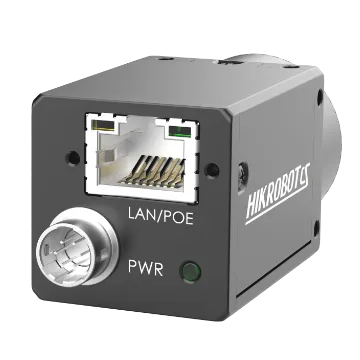

Area Scan Camera, 20MP, GigE, V5, Mono

Name: Area Scan Camera, 20MP, GigE, V5, Mono
Brand: HIKROBOT
SKU: MV-CS200-10GM V5

Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.

Send inquiry

Download datasheet (PDF)

Highlights

Offers auto or manual gain, exposure, white balance, LUT, and gamma correction.
ISP functions including CCM and LSC deliver high-quality images.
Compact body with panel mounting holes on four sides for flexible setup.
Connects via GigE, with cable runs up to 100 m and no repeater required.
Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CS200-10GM V5 Category: Area & Line Scan Cameras

Area Scan Camera, 20MP, GigE, V5, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS200-10GM V5. Key data: resolution 5472 × 3648, sensor type CMOS, rolling shutter. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

ISP functions including CCM and LSC deliver high-quality images. Compact body with panel mounting holes on four sides for flexible setup. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Area Scan Camera, 20MP, GigE, V5, Mono (MV-CS200-10GM V5) at a glance: 5472 × 3648 resolution, Sony® IMX183 sensor, 1" sensor format, 2.4 μm × 2.4 μm pixel size, up to 5.9 fps, Gigabit Ethernet (1000 Mbit/s) interface, C-mount lens mount and 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") housing. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. — ISP functions including CCM and LSC deliver high-quality images. — Compact body with panel mounting holes on four sides for flexible setup. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Specifications

Product Model	MV-CS200-10GM V5
Type	Area Scan Camera, 20MP, GigE, V5, Mono
Sensor Type	CMOS, rolling shutter
Sensor Model	Sony® IMX183
Pixel Size	2.4 μm × 2.4 μm
Sensor Size	1"
Resolution	5472 × 3648
Max Frame Rate	5.9 fps @ 5472 × 3648 Mono 8 5.9 fps @ 5472 × 3648 Bayer RG 8
Dynamic Range	65.5 dB
SNR	41.5 dB
Gain	0 dB to 24 dB
Exposure Time	46 μs to 2.5 sec
Exposure Mode	Off/Once/Continuous exposure mode, and supports Rolling and Global Reset mode
Pixel Format	Mono 8/10/10Packed/12/12Packed Mono 8, Bayer RG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power Supply	9 VDC to 24 VDC, supports PoE
Lens Mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 100 g (0.2 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with GigE Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Mono	Mono Color
Power Consumption 2	Typ. 1.5 W @ 12 VDC
