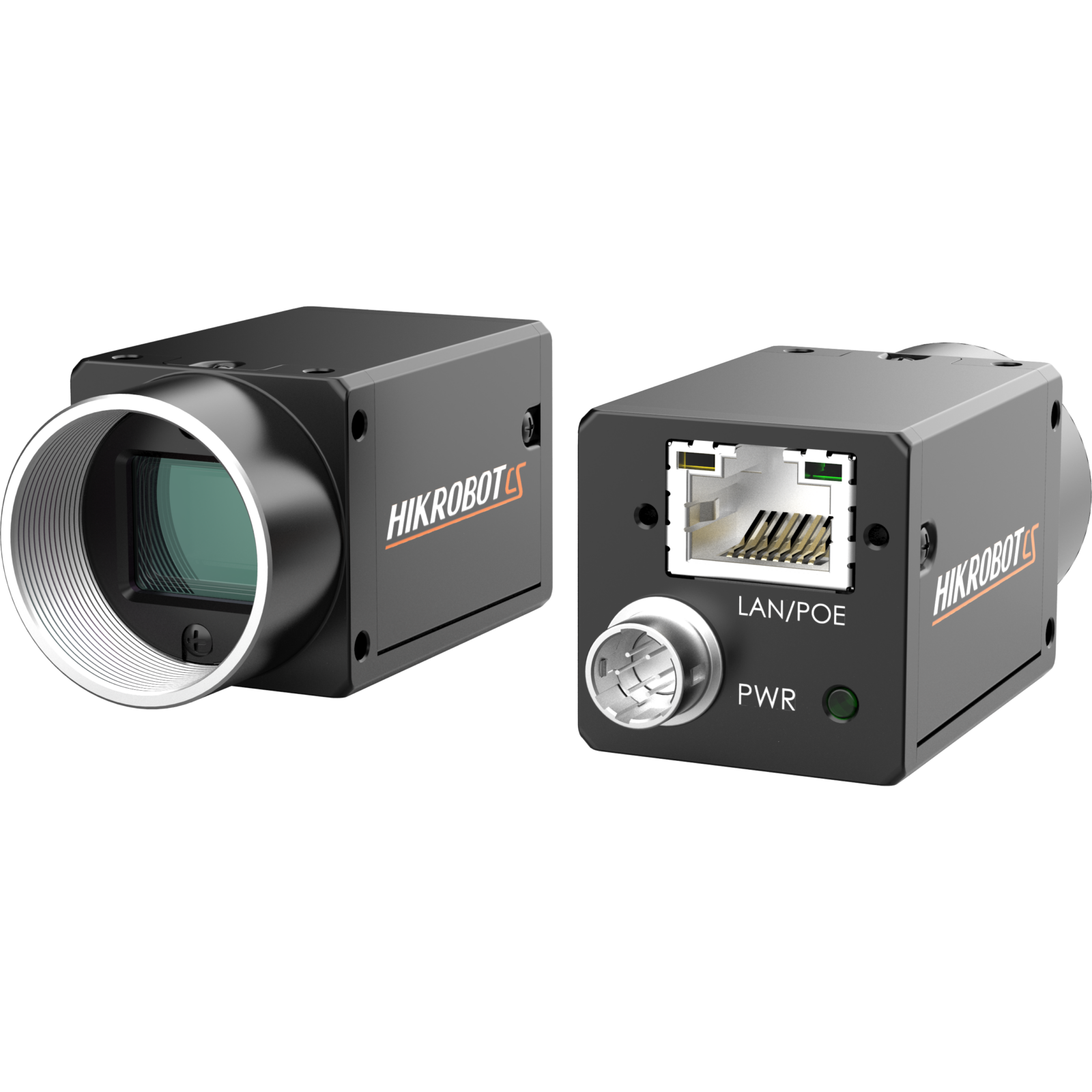

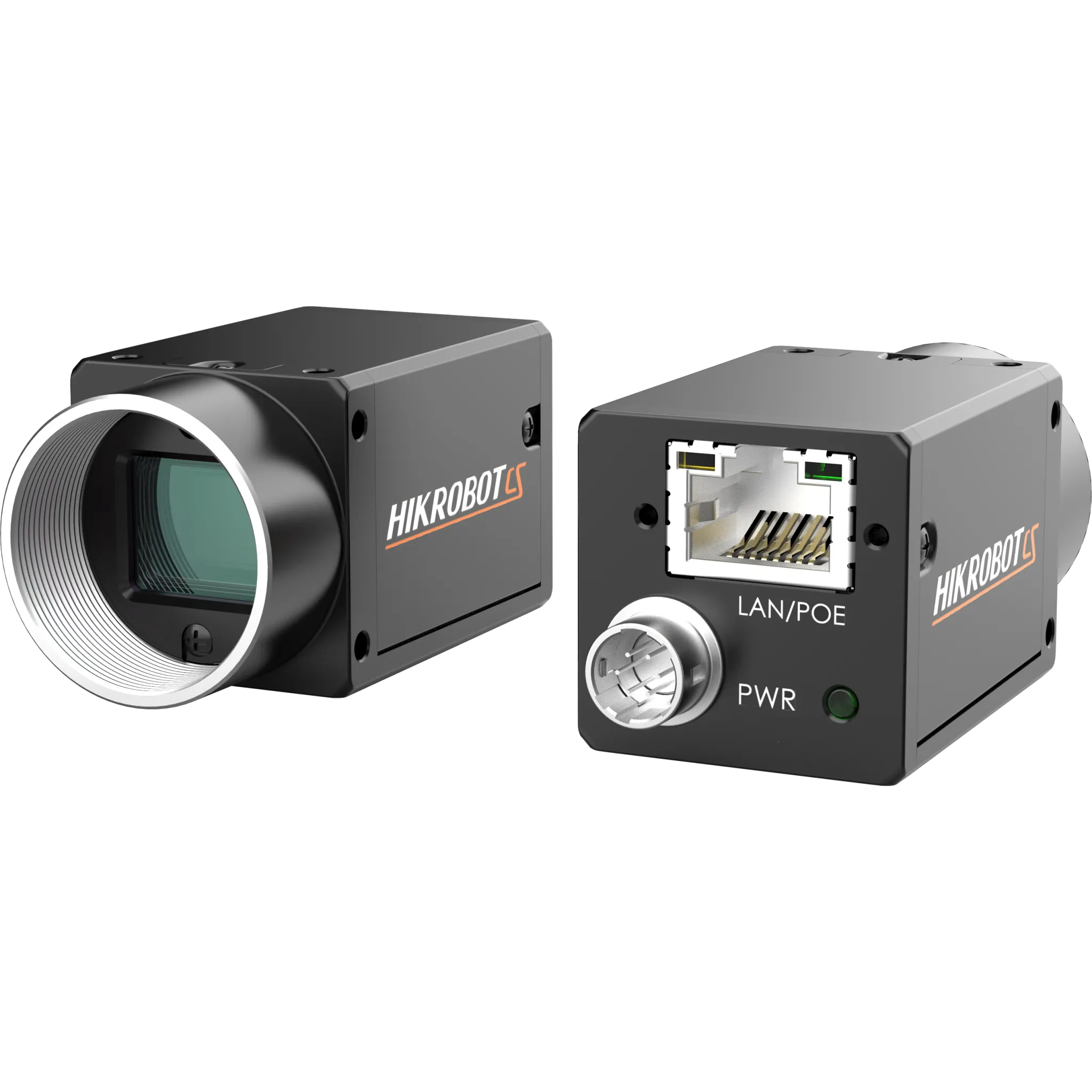

Area Scan Camera, 20MP, GigE, IMX183, Color, Basic
Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
- Offers auto or manual gain, exposure, white balance, LUT, and gamma correction.
- ISP functions including CCM deliver high-quality images.
- Compact body with panel mounting holes on four sides for flexible setup.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 20MP, GigE, IMX183, Color, Basic is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS200-10GC. Key data: resolution 5472 × 3648, sensor type CMOS, rolling shutter, max frame rate 5.9 fps @ 5472 × 3648. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 20MP, GigE, V5, Color (MV-CS200-10GC V5)
- Area Scan Camera, 20MP, GigE, IMX183, Mono, Basic (MV-CS200-10GM)
- Area Scan Camera, 20MP, GigE, V5, Mono (MV-CS200-10GM V5)
- Area Scan Camera, 20 MP 1″ CMOS GigE (MV-CS200-10GM-ADV)
- Area Scan Camera, 20MP, USB3.0, IMX183, 2nd Gen., Color (MV-CS200-10UC)
- Area Scan Camera, 20MP, USB3.0, IMX183, Color (MV-CS200-10UC V5)
- Area Scan Camera, 20MP, USB3.0, IMX183, 2nd Gen., Mono (MV-CS200-10UM)
- Area Scan Camera, 20MP, USB3.0, IMX183, Mono (MV-CS200-10UM V5)
Description
ISP functions including CCM deliver high-quality images. Compact body with panel mounting holes on four sides for flexible setup. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. — ISP functions including CCM deliver high-quality images. — Compact body with panel mounting holes on four sides for flexible setup. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CS200-10GC |
|---|---|
| Type | Area Scan Camera, 20MP, GigE, IMX183, Color, Basic |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Sony® IMX183 |
| Pixel Size | 2.4 μm × 2.4 μm |
| Sensor Size | 1" |
| Resolution | 5472 × 3648 |
| Max Frame Rate | 5.9 fps @ 5472 × 3648 |
| Dynamic Range | / |
| SNR | 41.5 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 46 μs to 2.5 sec |
| Exposure Mode | Off/Once/Continuous exposure auto, supports Timed and Trigger Width exposure mode, and Rolling and Global Reset sensor shutter mode |
| Pixel Format | Mono 8/10/12, Bayer GB 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 2.5 W@12 VDC |
| Quantum Efficiency | / |
| Dark Noise | / |
| Signal To Noise Ratio | / |
| Saturation Capacity | / |
