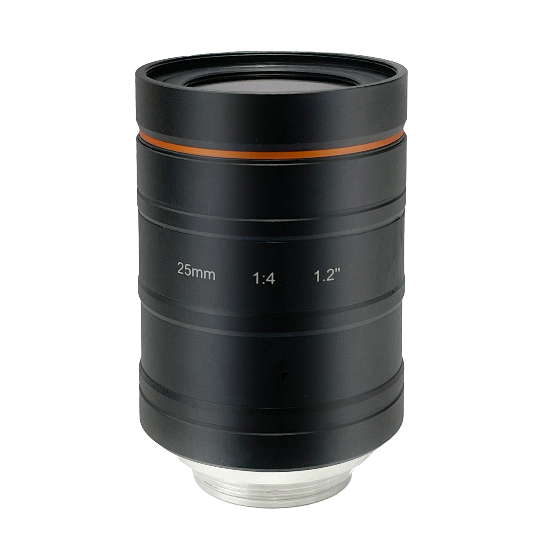

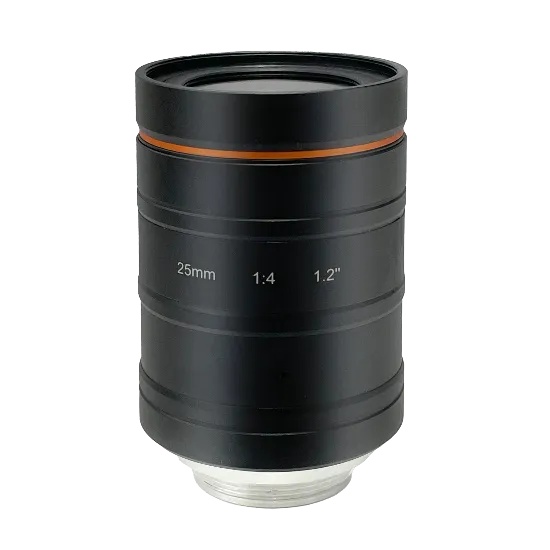

C-Mount Lens, 25mm, Fixed Iris F4, 1.2″, 25MP
Ultra high resolution, high consistency in image center and edge clarity
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
1.2″ image circle, F4 fixed iris, structurally stable. Ultra-low distortion and high relative illumination. Maintains excellent optical properties across different object distances. Excellent resistance to vibration, impact, and both high and low temperatures.
Product Highlights
Ultra-high resolution with consistent image clarity across centre and edge. — 1.2″ image circle, F4 fixed iris, structurally stable. — Ultra-low distortion and high relative illumination. — Maintains excellent optical properties across different object distances. — Excellent resistance to vibration, impact, and both high and low temperatures.
Specifications
| Product Model | MVL-KF2540-25MP |
|---|---|
| Type | C-Mount Lens, 25mm, Fixed Iris F4, 1.2″, 25MP |
| Focal Length | 25 mm |
| Distortion | -0.08% |
| Mount | C-Mount |
| Dimension | Φ38 × 56.33~67.73 mm |
| Weight | 151 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Field Of View 2 | D(19.3 mm):41.6° H(14.6 mm):32.04° V(12.63 mm):27.88° |
| F Number 2 | F4.0 |
| Image Size 2 | Φ19.3 mm(1.2") |
| Minimum Operation Distance | 0.08 m |
| Iris Control 2 | Fixed |
| Focus Control 2 | Manual |
| Filter Thread 2 | M35.5 × P0.5 |
| Flange Back Length 2 | 17.526 mm |
