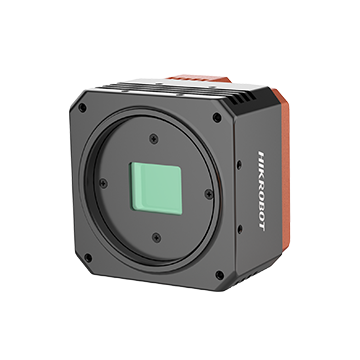

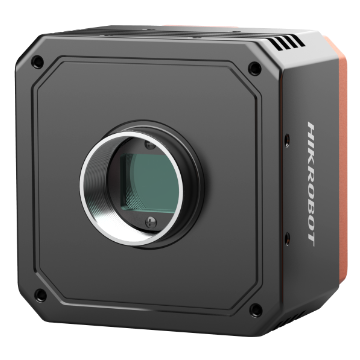

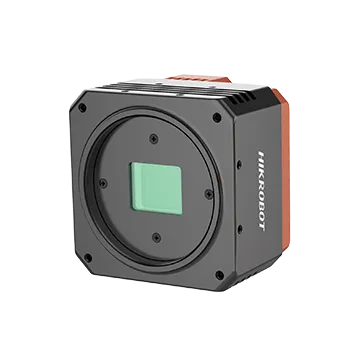

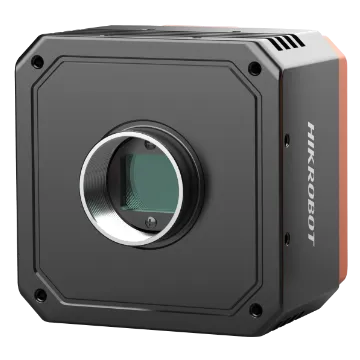

Area Scan Camera, 25MP, 10GigE, GMAX0505, Mono, C-mount, with fan
Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Connects via 10 GigE, with cable runs up to 100 m. Offers adjustment of exposure time, gain, LUT, gamma correction, and more. Mounting holes on the panels for flexible installation. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Product Highlights
Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels. — Connects via 10 GigE, with cable runs up to 100 m. — Offers adjustment of exposure time, gain, LUT, gamma correction, and more. — Mounting holes on the panels for flexible installation. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Specifications
| Product Model | MV-CH250-90TM-C-NF |
|---|---|
| Type | Area Scan Camera, 25MP, 10GigE, GMAX0505, Mono, C-mount, with fan |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX0505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1.1" |
| Resolution | 5120 × 5120 |
| Max Frame Rate | 41.5 fps @ 5120 × 5120 Mono 8 |
| Dynamic Range | 63 dB |
| SNR | 36 dB |
| Gain | 2.0x to 5.0x |
| Exposure Time | UltraShort exposure mode: 3 μs to 8 μs Standard exposure mode: 9 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | C-mount |
| Dimension | 74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1") |
| Weight | Approx. 590 g (1.3 lb.) |
| Ingress Protection | IP40 ( under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 9.7 W @ 12 VDC |
