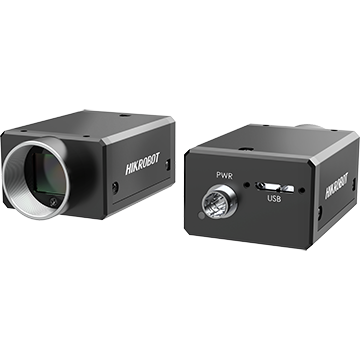

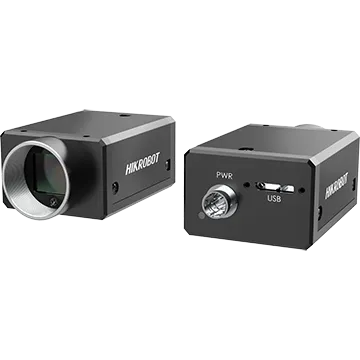

Area Scan Camera, 25MP, USB3, GMAX0505, Color, V4
Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
- Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels.
- Supports LSC correction, binning, and image reversal.
- Supports hardware trigger, software trigger, and free-run modes.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 25MP, USB3, GMAX0505, Color, V4 is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH250-90UC V4. Key data: resolution 5120 × 5120, sensor type CMOS, global shutter, max frame rate 14 fps @5120 × 5120 Bayer BG 8, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 25MP, 10GigE, GMAX0505, Color, C-mount, with fan (MV-CH250-90TC-C-NF)
- Area Scan Camera, 25MP, 10GigE, GMAX0505, Color, M58-mount, with fan (MV-CH250-90TC-M58S-NF)
- Area Scan Camera, 25MP, 10GigE, GMAX0505, Mono, C-mount, with fan (MV-CH250-90TM-C-NF)
- Area Scan Camera, 25MP, 10GigE, GMAX0505, Mono, M58-mount, with fan (MV-CH250-90TM-M58S-NF)
- Area Scan Camera, 25MP, USB3, GMAX0505, Mono, V4 (MV-CH250-90UM V4)
- Area Scan Camera, 25MP, USB3, GMAX0505, NIR, V4 (MV-CH250-90UN V4)
- Area Scan Camera, 25MP, dual USB3.0, GMAX0505, Color (MV-CH250-90VC)
- Area Scan Camera, 25MP, dual USB3.0, GMAX0505, Mono (MV-CH250-90VM)
Description
Supports LSC correction, binning, and image reversal. Supports hardware trigger, software trigger, and free-run modes. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels. — Supports LSC correction, binning, and image reversal. — Supports hardware trigger, software trigger, and free-run modes. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH250-90UC V4 |
|---|---|
| Type | Area Scan Camera, 25MP, USB3, GMAX0505, Color, V4 |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX0505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1.1" |
| Resolution | 5120 × 5120 |
| Max Frame Rate | 14 fps @5120 × 5120 Bayer BG 8 |
| Dynamic Range | 65 dB |
| SNR | 36 dB |
| Gain | Supports 2.0 ×, 2.5 ×, 3.0 ×, 3.5 ×, 4.0 ×, 4.5 ×, 5.0 × |
| Exposure Time | 12 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer BG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 12 VDC to 24 VDC, supports USB3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: -10 °C to 50 °C (14 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 3.6 W@5 VDC (USB3.0 provides power supply) |
