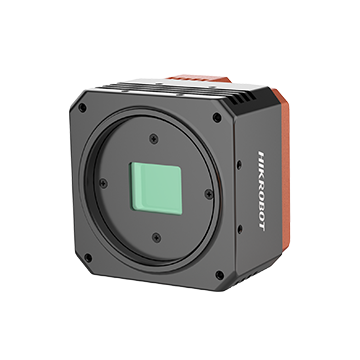

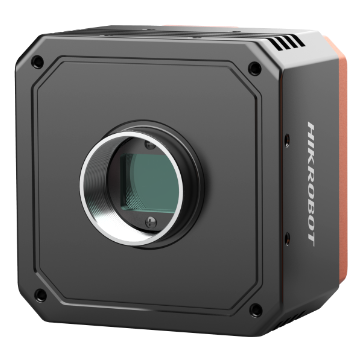

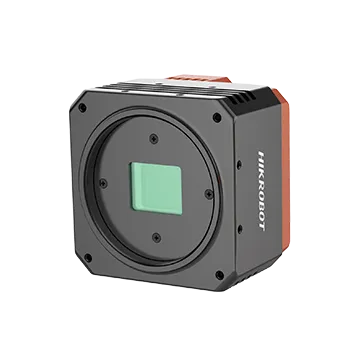

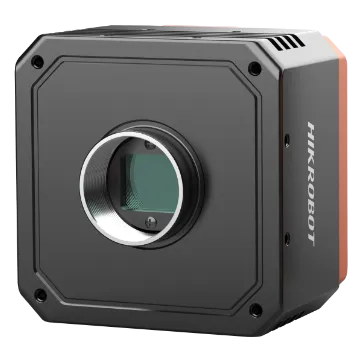

Area Scan Camera, 25MP, 10GigE, GMAX0505, Color, C-mount, with fan

Name: Area Scan Camera, 25MP, 10GigE, GMAX0505, Color, C-mount, with fan
Brand: HIKROBOT
SKU: MV-CH250-90TC-C-NF

Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.

Send inquiry

Download datasheet (PDF)

Highlights

Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels.
Connects via 10 GigE, with cable runs up to 100 m.
Offers adjustment of exposure time, gain, LUT, gamma correction, and more.
Mounting holes on the panels for flexible installation.
Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH250-90TC-C-NF Category: Area & Line Scan Cameras

Area Scan Camera, 25MP, 10GigE, GMAX0505, Color, C-mount, with fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH250-90TC-C-NF. Key data: resolution 5120 × 5120, sensor type CMOS, global shutter, max frame rate 41.5 fps @ 5120 × 5120 Bayer BG 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Connects via 10 GigE, with cable runs up to 100 m. Offers adjustment of exposure time, gain, LUT, gamma correction, and more. Mounting holes on the panels for flexible installation. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Area Scan Camera, 25MP, 10GigE, GMAX0505, Color, C-mount, with fan (MV-CH250-90TC-C-NF) at a glance: 5120 × 5120 resolution, Gpixel GMAX0505 sensor, 1.1" sensor format, 2.5 μm × 2.5 μm pixel size, up to 41.5 fps, Color output, 10 Gigabit Ethernet (10000 Mbit/s) interface and C-mount lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels. — Connects via 10 GigE, with cable runs up to 100 m. — Offers adjustment of exposure time, gain, LUT, gamma correction, and more. — Mounting holes on the panels for flexible installation. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Specifications

Product Model	MV-CH250-90TC-C-NF
Type	Area Scan Camera, 25MP, 10GigE, GMAX0505, Color, C-mount, with fan
Sensor Type	CMOS, global shutter
Sensor Model	Gpixel GMAX0505
Pixel Size	2.5 μm × 2.5 μm
Sensor Size	1.1"
Resolution	5120 × 5120
Max Frame Rate	41.5 fps @ 5120 × 5120 Bayer BG 8
Dynamic Range	63 dB
SNR	36 dB
Gain	2.0x to 5.0x
Exposure Time	UltraShort exposure mode: 3 μs to 8 μs Standard exposure mode: 9 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/12, Bayer BG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8
Mono Color	Color
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power Supply	9 VDC to 24 VDC
Lens Mount	C-mount
Dimension	74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
Weight	Approx. 590 g (1.3 lb.)
Ingress Protection	IP40 ( under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with GigE Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 10.0 W @ 12 VDC
