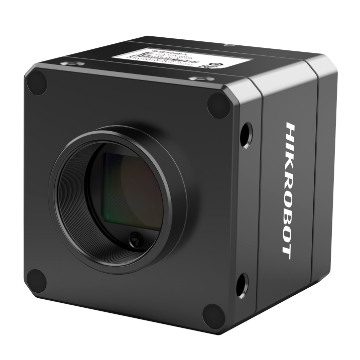

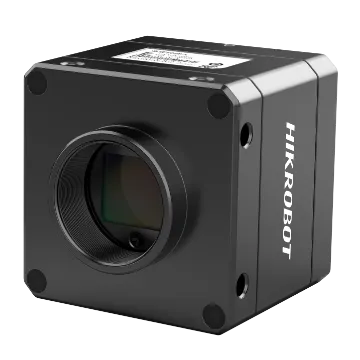

Area Scan Camera, 25MP, GMAX0505, CXP-6, Color, C-mount, without fan
Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
- Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels.
- A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality.
- Transmits data over a CXP-6 interface.
- Works with the CoaXPress protocol and the GenICam standard.
Camera Solutions
Area Scan Camera, 25MP, GMAX0505, CXP-6, Color, C-mount, without fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH250-90XC-C-NN. Key data: resolution 5120 × 5120, sensor type CMOS, global shutter, max frame rate 41.5 fps @ 5120 × 5120 Bayer BG 8, data interface CoaXPress with DIN interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 25MP, USB3, GMAX0505, Mono, V4 (MV-CH250-90UM V4)
- Area Scan Camera, 25MP, USB3, GMAX0505, NIR, V4 (MV-CH250-90UN V4)
- Area Scan Camera, 25MP, dual USB3.0, GMAX0505, Color (MV-CH250-90VC)
- Area Scan Camera, 25MP, dual USB3.0, GMAX0505, Mono (MV-CH250-90VM)
- Area Scan Camera, 25MP, GMAX0505, CXP-6, Mono, C-mount, without fan (MV-CH250-90XM-C-NN)
- Area Scan Camera, 25MP, GMAX0505, 2 link CXP-12, Mono (MV-CH250-90Y2M-C-NF)
- Area Scan Camera, 25MP, CXP-12, GMAX0505, Color, V2, C-mount (MV-CH250-90YC-C-NN)
- Area Scan Camera, 25MP, CXP-12, GMAX0505, Color, V2, M58-mount (MV-CH250-90YC-M58S-NN)
Description
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Transmits data over a CXP-6 interface. Works with the CoaXPress protocol and the GenICam standard.
Product Highlights
Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Transmits data over a CXP-6 interface. — Works with the CoaXPress protocol and the GenICam standard.
Specifications
| Product Model | MV-CH250-90XC-C-NN |
|---|---|
| Type | Area Scan Camera, 25MP, GMAX0505, CXP-6, Color, C-mount, without fan |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX0505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1.1" |
| Resolution | 5120 × 5120 |
| Max Frame Rate | 41.5 fps @ 5120 × 5120 Bayer BG 8 |
| Dynamic Range | 65 dB |
| SNR | 41 dB |
| Gain | 2.0 × to 5.0 × |
| Exposure Time | UltraShort exposure mode: 3 μs to 8 μs Standard exposure mode: 10 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Bayer BG 8/10/12 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |

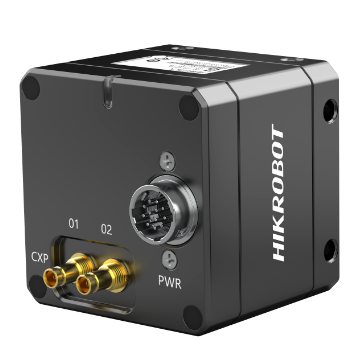

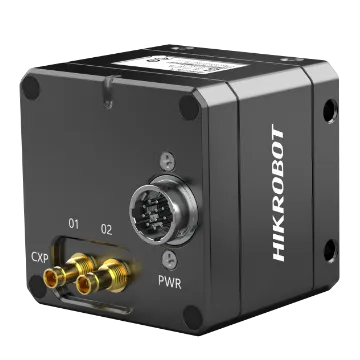

| Data Interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 9 VDC to 24 VDC, CXP-1 supports PoCXP |
| Lens Mount | C-mount |
| Dimension | 50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8") |
| Weight | Approx. 207 g (0.5 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 6.5 W @ 12 VDC |
