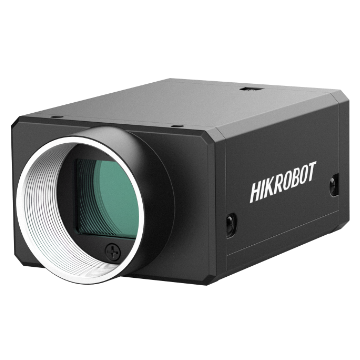

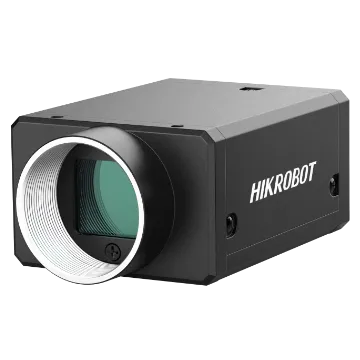

Area Scan Camera, 25MP, dual USB3.0, GMAX0505, Color
Supports manual adjustment of gain, LUT, Gamma correction, etc.
- Manual adjustment of gain, LUT, and gamma correction.
- Dual USB 3.0 interfaces for data transmission.
- Supports hardware trigger, software trigger, and free-run modes.
- Mounting holes for flexible installation.
- Compact design fits tight spaces.
- Complies with the GenICam standard.
Camera Solutions
Area Scan Camera, 25MP, dual USB3.0, GMAX0505, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH250-90VC. Key data: resolution 5120 × 5120, sensor type CMOS, global shutter, max frame rate 30 fps @5120 × 5120 Bayer BG 8, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 25MP, 10GigE, GMAX0505, Mono, M58-mount, with fan (MV-CH250-90TM-M58S-NF)
- Area Scan Camera, 25MP, USB3, GMAX0505, Color, V4 (MV-CH250-90UC V4)
- Area Scan Camera, 25MP, USB3, GMAX0505, Mono, V4 (MV-CH250-90UM V4)
- Area Scan Camera, 25MP, USB3, GMAX0505, NIR, V4 (MV-CH250-90UN V4)
- Area Scan Camera, 25MP, dual USB3.0, GMAX0505, Mono (MV-CH250-90VM)
- Area Scan Camera, 25MP, GMAX0505, CXP-6, Color, C-mount, without fan (MV-CH250-90XC-C-NN)
- Area Scan Camera, 25MP, GMAX0505, CXP-6, Mono, C-mount, without fan (MV-CH250-90XM-C-NN)
- Area Scan Camera, 25MP, GMAX0505, 2 link CXP-12, Mono (MV-CH250-90Y2M-C-NF)
Description

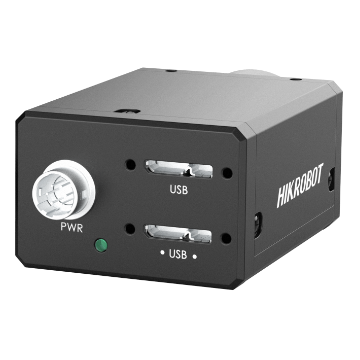

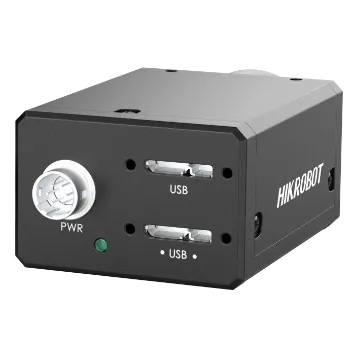

Dual USB 3.0 interfaces for data transmission. Supports hardware trigger, software trigger, and free-run modes. Mounting holes for flexible installation. Compact design fits tight spaces. Complies with the GenICam standard.
Product Highlights
Manual adjustment of gain, LUT, and gamma correction. — Dual USB 3.0 interfaces for data transmission. — Supports hardware trigger, software trigger, and free-run modes. — Mounting holes for flexible installation. — Compact design fits tight spaces. — Complies with the GenICam standard.
Specifications
| Product Model | MV-CH250-90VC |
|---|---|
| Type | Area Scan Camera, 25MP, dual USB3.0, GMAX0505, Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX0505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1.1" |
| Resolution | 5120 × 5120 |
| Max Frame Rate | 30 fps @5120 × 5120 Bayer BG 8 |
| Dynamic Range | 65 dB |
| SNR | 40 dB |
| Gain | 2.0 x to 5.0 x |
| Exposure Time | UltraShort exposure mode: 2 μs to 8 μs Standard exposure mode: 9 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12 Bayer BG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 40 °C (14 °F to 104 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH, no condensation |
| Client Software | MVS |
| Operating System | 32/64-bit Windows XP/7/10/11 |
| Compatibility | GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 5.5 W @ 5 VDC (dual USB 3.0 interfaces provide power supply) |
