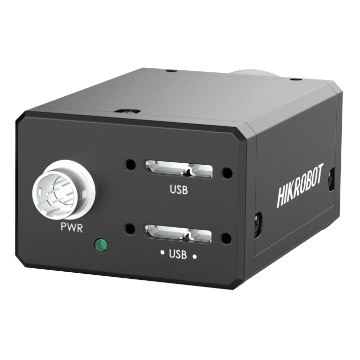

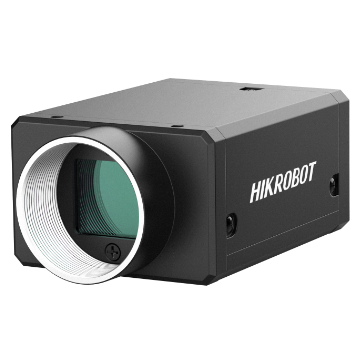

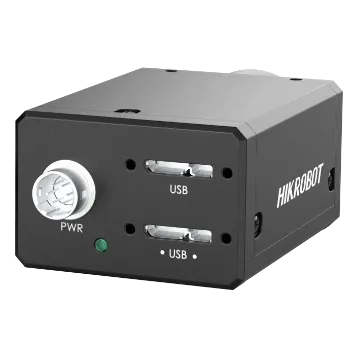

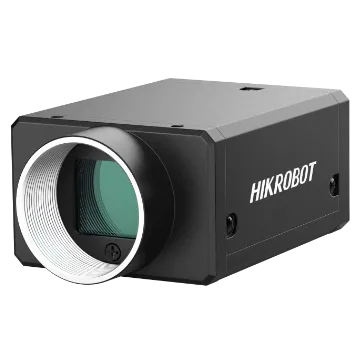

Area Scan Camera, 25MP, dual USB3.0, GMAX0505, Mono
Supports manual adjustment of gain, LUT, Gamma correction, etc.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Dual USB 3.0 interfaces for data transmission. Supports hardware trigger, software trigger, and free-run modes. Mounting holes for flexible installation. Compact design fits tight spaces. Complies with the GenICam standard.
Product Highlights
Manual adjustment of gain, LUT, and gamma correction. — Dual USB 3.0 interfaces for data transmission. — Supports hardware trigger, software trigger, and free-run modes. — Mounting holes for flexible installation. — Compact design fits tight spaces. — Complies with the GenICam standard.
Specifications
| Product Model | MV-CH250-90VM |
|---|---|
| Type | Area Scan Camera, 25MP, dual USB3.0, GMAX0505, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX0505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1.1" |
| Resolution | 5120 × 5120 |
| Max Frame Rate | 30 fps @5120 × 5120 Mono 8 |
| Dynamic Range | 65 dB |
| SNR | 40 dB |
| Gain | 2.0 x to 5.0 x |
| Exposure Time | UltraShort exposure mode: 1 μs to 8 μs Standard exposure mode: 9 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 40 °C (14 °F to 104 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH, no condensation |
| Client Software | MVS |
| Operating System | 32/64-bit Windows XP/7/10/11 |
| Compatibility | GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 4.8 W @ 5 VDC (dual USB 3.0 interfaces provide power supply) |
