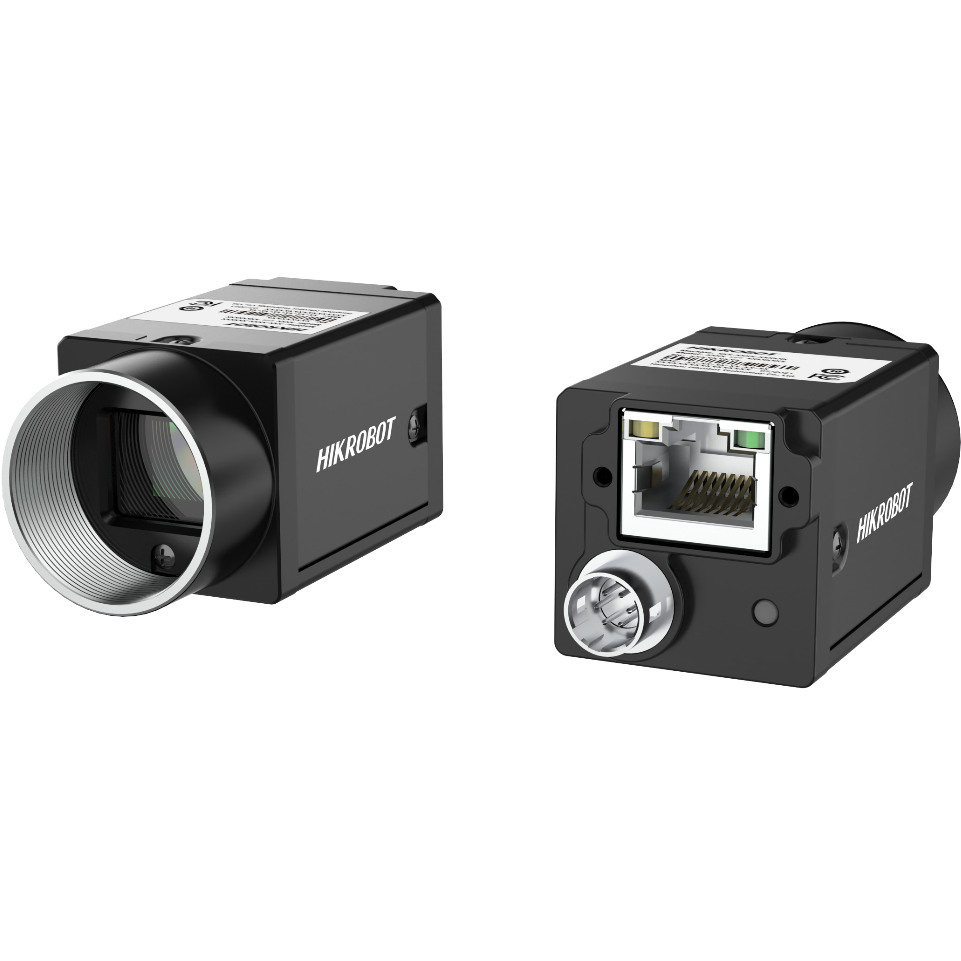

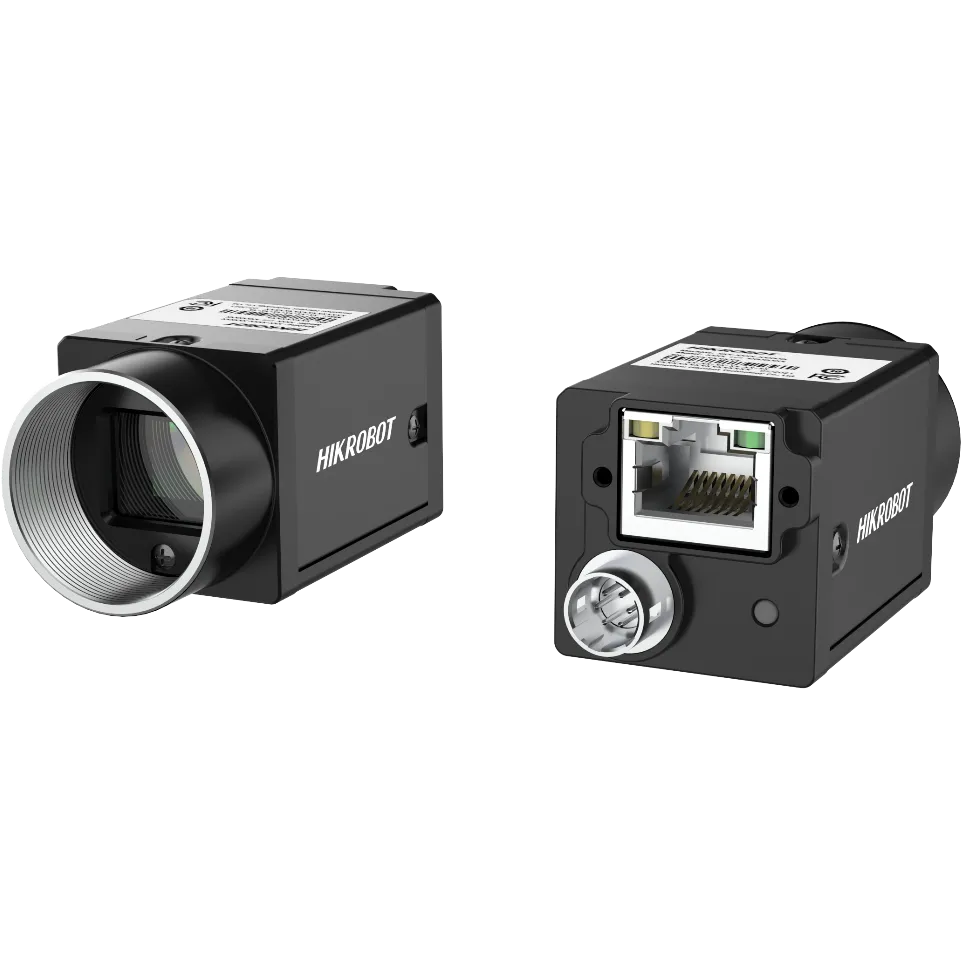

Area Scan Camera, 2MP, GigE, GMAX4002, Mono
Adopts low consumption design with stable performance.
- Low-power design with stable performance.
- Offers auto or manual gain and exposure, plus manual LUT and gamma correction.
- Supports custom ROI and horizontal/vertical image flipping.
- Compact design fits tight spaces.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 2MP, GigE, GMAX4002, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CU020-90GM. Key data: resolution 2048 × 1200, sensor type CMOS, global shutter, max frame rate 49 fps @ 2048 × 1200 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 2MP, GigE, SC235, V2, Color (MV-CU020-80GC V2)
- Area Scan Camera, 2MP, GigE, SC235, Mono (MV-CU020-80GM)
- Area Scan Camera, 2MP, GigE, SC235, V2, Mono (MV-CU020-80GM V2)
- Area Scan Camera, 2MP, GigE, GMAX4002, Color (MV-CU020-90GC)
- Area Scan Camera, 2MP, GigE, V2, GMAX4002, Color (MV-CU020-90GC V2)
- Area Scan Camera, 2MP, GigE, V2, GMAX4002, Mono (MV-CU020-90GM V2)
- Area Scan Camera, 2MP, USB3, GMAX4002, Color (MV-CU020-90UC)
- Area Scan Camera, 2MP, USB3, GMAX4002, Mono (MV-CU020-90UM)
Description
Offers auto or manual gain and exposure, plus manual LUT and gamma correction. Supports custom ROI and horizontal/vertical image flipping. Compact design fits tight spaces. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Low-power design with stable performance. — Offers auto or manual gain and exposure, plus manual LUT and gamma correction. — Supports custom ROI and horizontal/vertical image flipping. — Compact design fits tight spaces. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CU020-90GM |
|---|---|
| Type | Area Scan Camera, 2MP, GigE, GMAX4002, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | GMAX4002 |
| Pixel Size | 4 μm × 4 μm |
| Sensor Size | 1/1.7" |
| Resolution | 2048 × 1200 |
| Max Frame Rate | 49 fps @ 2048 × 1200 Mono 8 |
| Dynamic Range | 66.9 dB |
| SNR | 40.8 dB |
| Gain | 0 dB to 11.1 dB |
| Exposure Time | 4 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC,PoE is optional |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 1.9 W @ 12 VDC |
