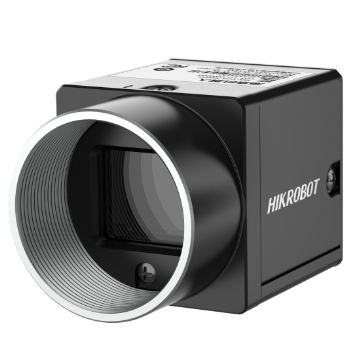

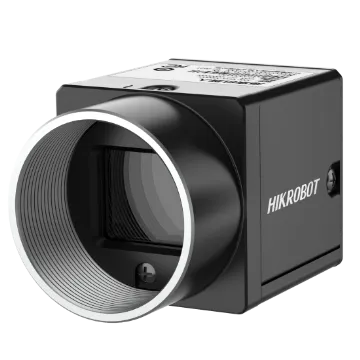

Area Scan Camera, 2MP, USB3, GMAX4002, Mono
Adopts optimized hardware design and low-power design with stable performance.
- Optimised hardware design with low power consumption and stable performance.
- Offers auto or manual gain and exposure, plus manual LUT and gamma correction.
- Supports custom ROI and horizontal/vertical image flipping.
- Compact design for flexible installation.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 2MP, USB3, GMAX4002, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CU020-90UM. Key data: resolution 2048 × 1200, sensor type CMOS, global shutter, max frame rate 150.2 fps @ 2048 × 1200 Mono 8, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 2MP, GigE, SC235, V2, Color (MV-CU020-80GC V2)
- Area Scan Camera, 2MP, GigE, SC235, Mono (MV-CU020-80GM)
- Area Scan Camera, 2MP, GigE, SC235, V2, Mono (MV-CU020-80GM V2)
- Area Scan Camera, 2MP, GigE, GMAX4002, Color (MV-CU020-90GC)
- Area Scan Camera, 2MP, GigE, V2, GMAX4002, Color (MV-CU020-90GC V2)
- Area Scan Camera, 2MP, GigE, GMAX4002, Mono (MV-CU020-90GM)
- Area Scan Camera, 2MP, GigE, V2, GMAX4002, Mono (MV-CU020-90GM V2)
- Area Scan Camera, 2MP, USB3, GMAX4002, Color (MV-CU020-90UC)
Description
Offers auto or manual gain and exposure, plus manual LUT and gamma correction. Supports custom ROI and horizontal/vertical image flipping. Compact design for flexible installation. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Optimised hardware design with low power consumption and stable performance. — Offers auto or manual gain and exposure, plus manual LUT and gamma correction. — Supports custom ROI and horizontal/vertical image flipping. — Compact design for flexible installation. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CU020-90UM |
|---|---|
| Type | Area Scan Camera, 2MP, USB3, GMAX4002, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | GMAX4002 |
| Pixel Size | 4 μm x 4 μm |
| Sensor Size | 1/1.7" |
| Resolution | 2048 × 1200 |
| Max Frame Rate | 150.2 fps @ 2048 × 1200 Mono 8 |
| Dynamic Range | 66.9 dB |
| SNR | 40.8 dB |
| Gain | 0 dB to 11.1 dB |
| Exposure Time | 4 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |

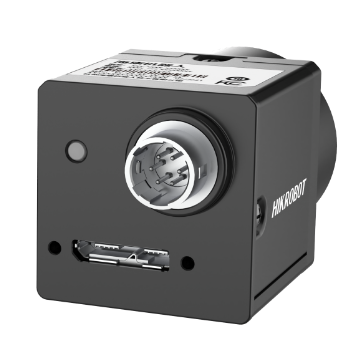

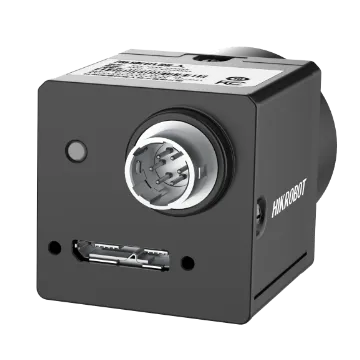

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power Supply | 9 VDC to 24 VDC, supports USB power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10/11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 1.9 W @ 5 VDC (USB3.0 provides power supply) |
