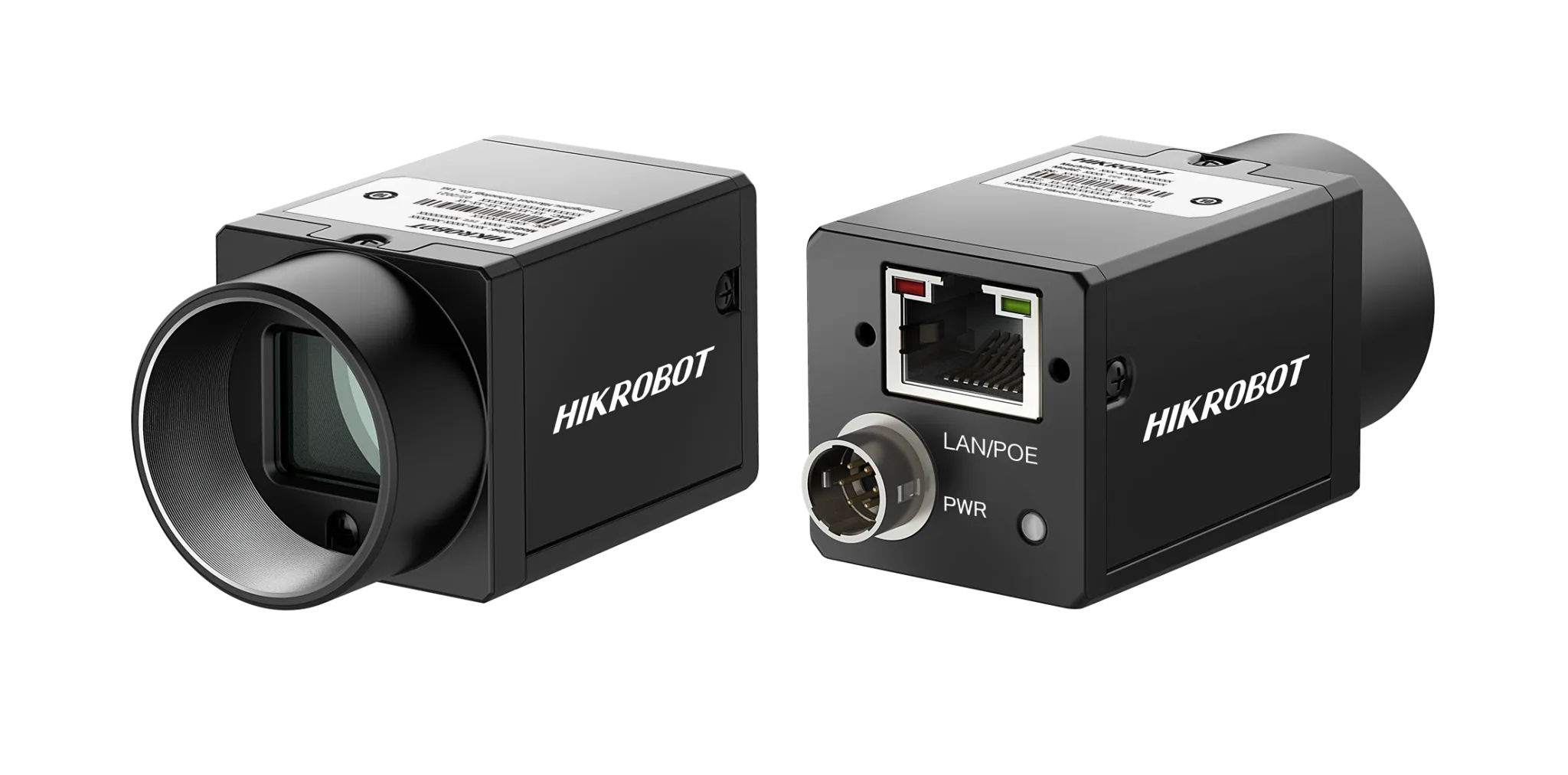

Area Scan Camera, 2MP, GigE, SC235, V2, Color
Adopts low consumption design with stable performance.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Offers auto or manual gain and exposure, plus manual LUT and gamma correction. Supports custom ROI and horizontal/vertical image flipping. Compact design fits tight spaces. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Low-power design with stable performance. — Offers auto or manual gain and exposure, plus manual LUT and gamma correction. — Supports custom ROI and horizontal/vertical image flipping. — Compact design fits tight spaces. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CU020-80GC V2 |
|---|---|
| Type | Area Scan Camera, 2MP, GigE, SC235, V2, Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | SC235 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.6" |
| Resolution | 1600 × 1200 |
| Max Frame Rate | 53.5 fps @ 1600 × 1200 Bayer BG 8 |
| Dynamic Range | 60.4 dB |
| SNR | 40.1 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 45 μs to 1 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Bayer GB 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, PoE is optional |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 1.9 W @ 12 VDC |
