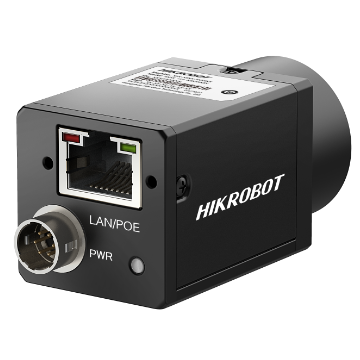

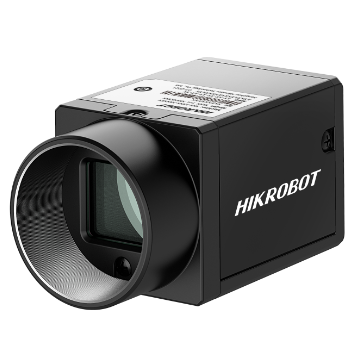

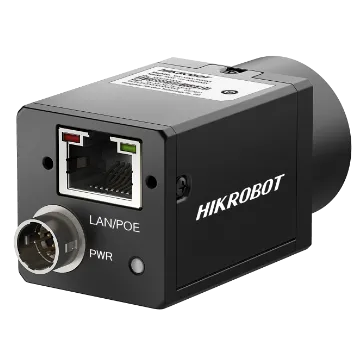

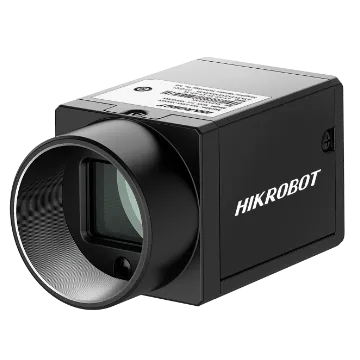

Area Scan Camera, 2MP, GigE, Mono, 850nm bandpass
Adopts low consumption platform with stable performance.
- Low-power platform with stable performance.
- Wide dynamic range, noise reduction, and sharpness adjustment supported.
- Optional custom filter with strong anti-interference performance.
- Supports hardware trigger, software trigger, and anyway mode.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 2MP, GigE, Mono, 850nm bandpass is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CU020-19GC(850nm) V3. Key data: resolution 1920 × 1080, sensor type CMOS, rolling shutter, max frame rate 56 fps @ 1920 × 1080 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 2MP, GigE, Color (MV-CU020-19GC V3)
- Area Scan Camera, 2MP, GigE, Mono (MV-CU020-19GM V3)
- Area Scan Camera, 2MP, GigE, SC235, Color (MV-CU020-80GC)
- Area Scan Camera, 2MP, GigE, SC235, V2, Color (MV-CU020-80GC V2)
- Area Scan Camera, 2MP, GigE, SC235, Mono (MV-CU020-80GM)
- Area Scan Camera, 2MP, GigE, SC235, V2, Mono (MV-CU020-80GM V2)
- Area Scan Camera, 2MP, GigE, GMAX4002, Color (MV-CU020-90GC)
- Area Scan Camera, 2MP, GigE, V2, GMAX4002, Color (MV-CU020-90GC V2)
Description
Wide dynamic range, noise reduction, and sharpness adjustment supported. Optional custom filter with strong anti-interference performance. Supports hardware trigger, software trigger, and anyway mode. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Low-power platform with stable performance. — Wide dynamic range, noise reduction, and sharpness adjustment supported. — Optional custom filter with strong anti-interference performance. — Supports hardware trigger, software trigger, and anyway mode. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CU020-19GC(850nm) V3 |
|---|---|
| Type | Area Scan Camera, 2MP, GigE, Mono, 850nm bandpass |
| Sensor Type | CMOS, rolling shutter |
| Pixel Size | 2.9 μm × 2.9 μm |
| Sensor Size | 1/2.8" |
| Resolution | 1920 × 1080 |
| Max Frame Rate | 56 fps @ 1920 × 1080 Mono 8 |
| Dynamic Range | 74 dB 90 dB @ WDR |
| SNR | 45.6 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 64 μs to 130 ms |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Not supported |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 2.4 W @ 12 VDC |
