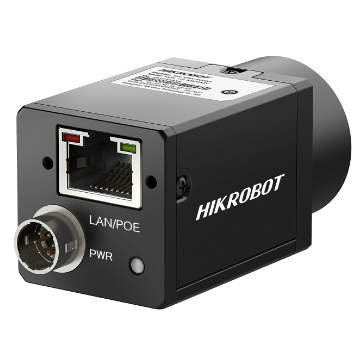

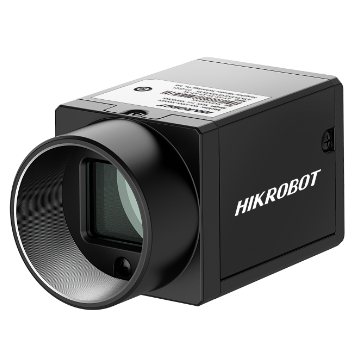

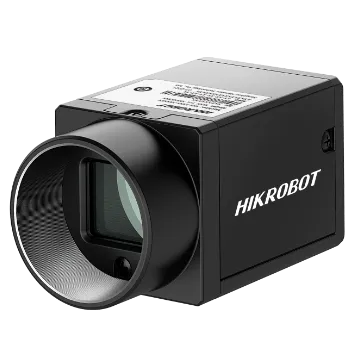

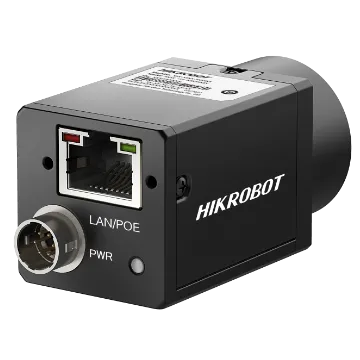

Area Scan Camera, 2MP, GigE, Color
Adopts low consumption platform with stable performance.
Camera Solutions
Beschreibung
Wide dynamic range, noise reduction, and sharpness adjustment supported. Optional custom filter with strong anti-interference performance. Supports hardware trigger, software trigger, and anyway mode. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Low-power platform with stable performance. — Wide dynamic range, noise reduction, and sharpness adjustment supported. — Optional custom filter with strong anti-interference performance. — Supports hardware trigger, software trigger, and anyway mode. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CU020-19GC V3 |
|---|---|
| Type | Area Scan Camera, 2MP, GigE, Color |
| Sensor Type | CMOS, rolling shutter |
| Pixel Size | 2.9 μm × 2.9 μm |
| Sensor Size | 1/2.8" |
| Resolution | 1920 × 1080 |
| Max Frame Rate | 56 fps @ 1920 × 1080 Mono 8 |
| Dynamic Range | 74 dB 90 dB @ WDR |
| SNR | 45.6 dB |
| Gain | 0 dB to 30 dB |
| Exposure Time | 128 μs to 260 ms |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8, YUV422Packed |
| Mono Color | Color |
| Binning | Not supported |
| Decimation | Not supported |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 2.3 W @ 12 VDC |
