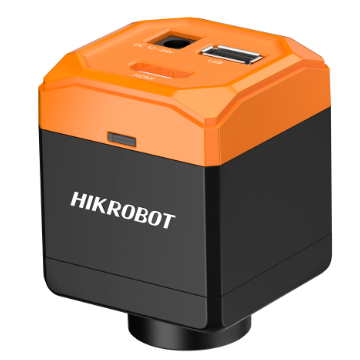

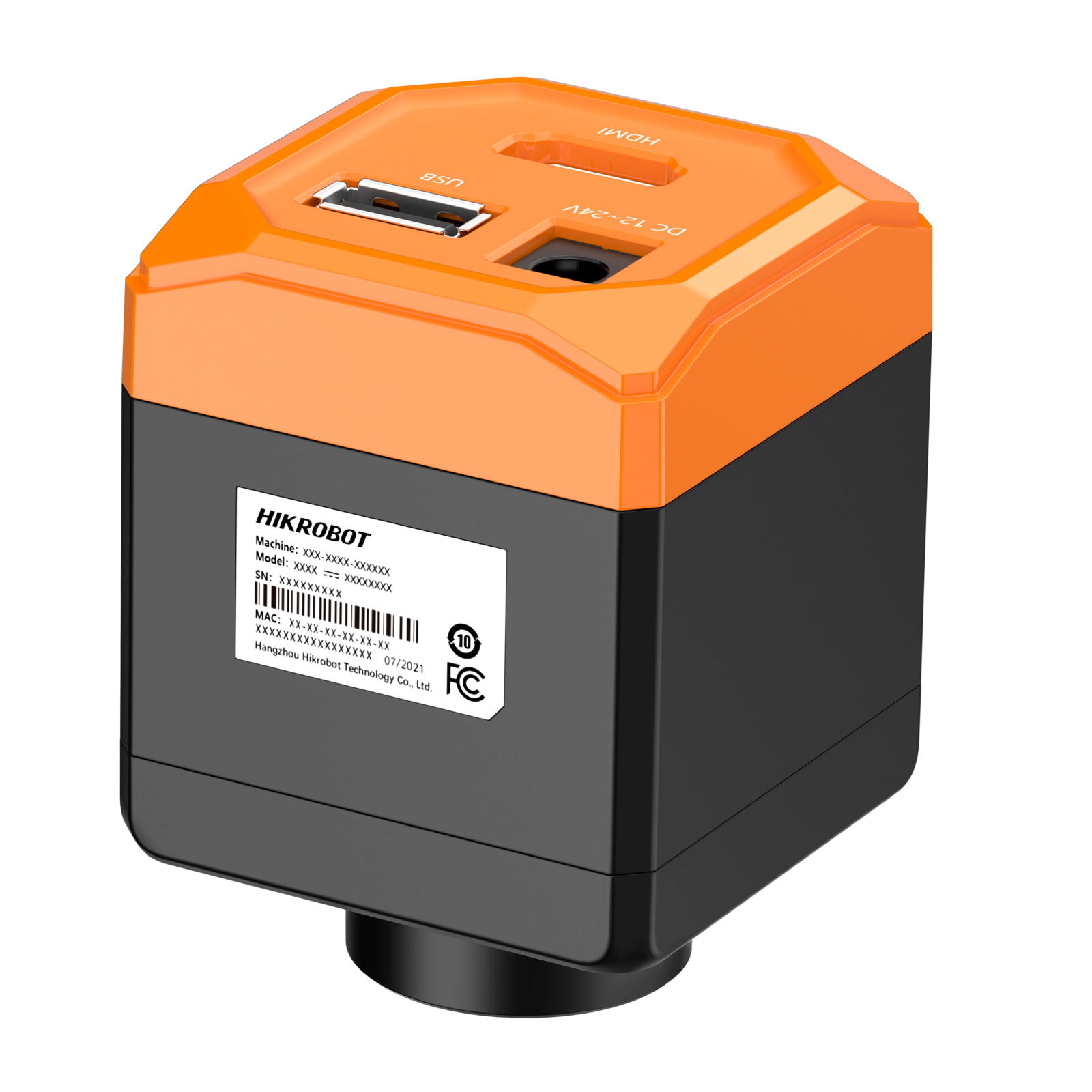

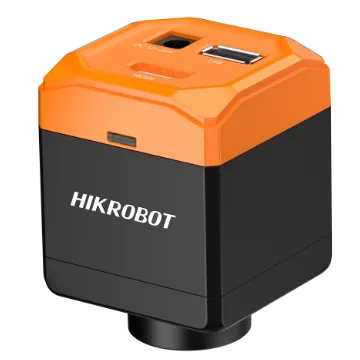

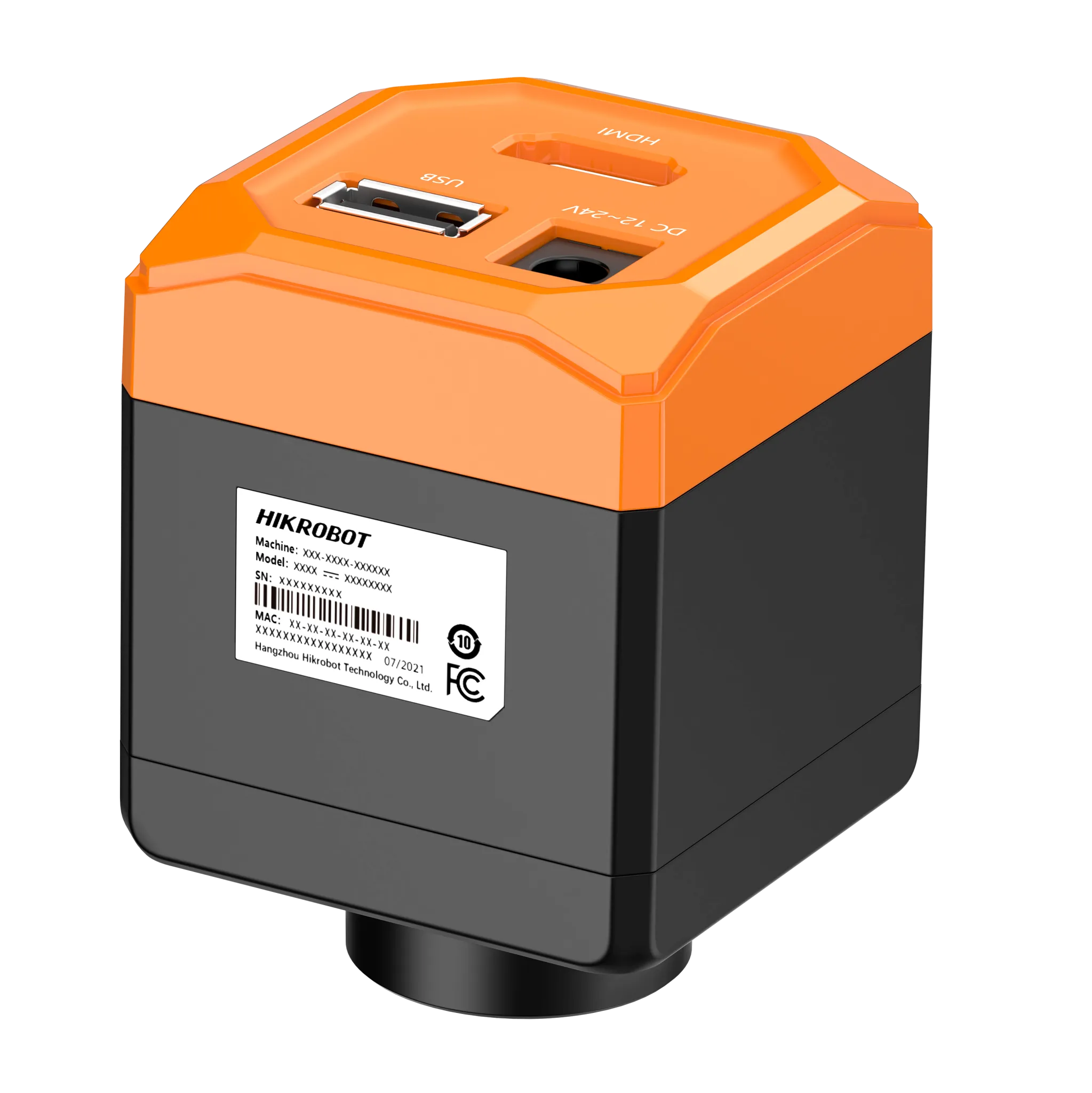

HDMI Camera, 2MP
Supports 2 MP high-quality image and 60 fps frame rate.
- 2 MP high-quality images at 60 fps.
- HDMI interface for direct monitor connection.
- USB 2.0 interface for mouse connection.
- Crosshair overlay with horizontal and vertical flip.
- Image adjustments including white balance, brightness, sharpness, 2D noise reduction, saturation, contrast, gamma correction, and digital WDR.
Camera Solutions
HDMI Camera, 2MP is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CM2020C-0H. Key data: resolution 1920 × 1080, sensor type CMOS, rolling shutter, max frame rate 60 fps. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 0.3MP, GigE, PYTHON300, Color (MV-CA003-20GC)
- Area Scan Camera, 0.3MP, GigE, PYTHON300, Color (MV-CA003-21UC)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, BASE (MV-CT0CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, MAX (MV-CT2CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, PRO (MV-CT1CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, BASE (MV-CT0MG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, MAX (MV-CT2MG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, PRO (MV-CT1MG0004/G/NN/NN)
Description
HDMI interface for direct monitor connection. USB 2.0 interface for mouse connection. Crosshair overlay with horizontal and vertical flip. Image adjustments including white balance, brightness, sharpness, 2D noise reduction, saturation, contrast, gamma correction, and digital WDR.
Product Highlights
2 MP high-quality images at 60 fps. — HDMI interface for direct monitor connection. — USB 2.0 interface for mouse connection. — Crosshair overlay with horizontal and vertical flip. — Image adjustments including white balance, brightness, sharpness, 2D noise reduction, saturation, contrast, gamma correction, and digital WDR.
Specifications
| Product Model | MV-CM2020C-0H |
|---|---|
| Type | HDMI Camera, 2MP |
| Sensor Type | CMOS, rolling shutter |
| Pixel Size | 3.75 μm × 3.75 μm |
| Sensor Size | 1/2" |
| Resolution | 1920 × 1080 |
| Max Frame Rate | 60 fps |
| Gain | 0 dB to 42 dB |
| Exposure Time | 300 μs to 100 ms |
| Exposure Mode | Auto/manual |
| Mono Color | Color |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Control Interface | USB 2.0 |
| Power Supply | 12 VDC to 24 VDC, independent power supply required |
| Lens Mount | C-mount |
| Dimension | 50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2") |
| Weight | 220 g (0.5 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS |
| Transmission Interface | HDMI |
| Power | Typ. 1.9 W @ 12 VDC |
