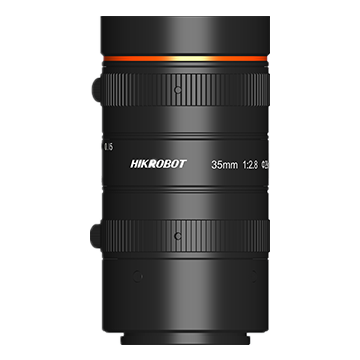

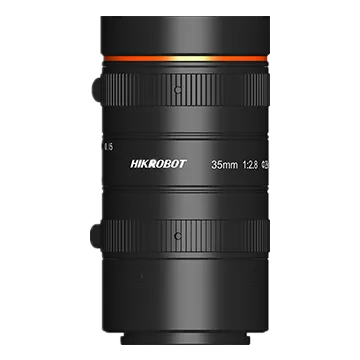

M42-Mount Lens, 35mm, F2.8, Image Size φ29mm, Recommended Magnification 0.001x ~ 0.164X
Adopts high-precision lens for 8k 7 μm line scan cameras.
- High-precision lens designed for 8K 7 µm line-scan cameras.
- Excellent image-clarity consistency and low distortion.
- Ultra-high image resolution at the maximum aperture of F2.8.
- Maximum image size Ø29 mm.
Camera Solutions
M42-Mount Lens, 35mm, F2.8, Image Size φ29mm, Recommended Magnification 0.001x ~ 0.164X is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-AF3528M-M42A. Key data: focal length 35 mm, f number F2.8 to F16, mount M42 × P1, image size Φ29 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Excellent image-clarity consistency and low distortion. Ultra-high image resolution at the maximum aperture of F2.8. Maximum image size Ø29 mm.
Product Highlights
High-precision lens designed for 8K 7 µm line-scan cameras. — Excellent image-clarity consistency and low distortion. — Ultra-high image resolution at the maximum aperture of F2.8. — Maximum image size Ø29 mm.
Specifications
| Product Model | MVL-AF3528M-M42A |
|---|---|
| Type | M42-Mount Lens, 35mm, F2.8, Image Size φ29mm, Recommended Magnification 0.001x ~ 0.164X |
| Focal Length | 35 mm |
| F Number | F2.8 to F16 |
| Image Size | Φ29 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M52 × P0.75 |
| Mount | M42 × P1 |
| Flange Back Length | 12 mm |
| Dimension | Φ55 mm × 102.5 mm (Φ2.2" × 4.0") |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | –0.16% |
| Magnification Range | 0.164 x to 0.001 x |
| Working Distance Range | 200 mm to inf mm (tolerance: ±5 mm) |
