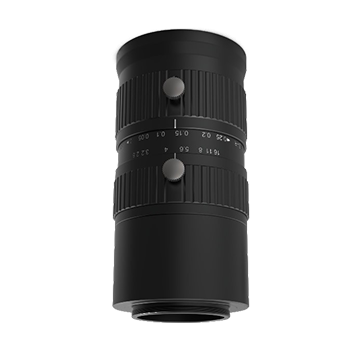

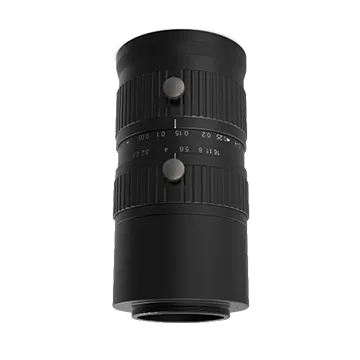

M42-Mount Lens, 35mm, F2.8, Image Size φ42mm, Recommended Magnification 0.05~0.2X
Provides excellent consistency of image clarity.
- Excellent image-clarity consistency.
- Large aperture, low distortion, low chromatic aberration, and high corner illuminance.
- Maximum image size Ø42 mm; suits large-format area-scan and 4K 7 µm line-scan cameras.
Camera Solutions
M42-Mount Lens, 35mm, F2.8, Image Size φ42mm, Recommended Magnification 0.05~0.2X is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-AF3528M-M42. Key data: focal length 35 mm, f number F2.8 to F16, mount M42 × P1, image size Φ42 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Large aperture, low distortion, low chromatic aberration, and high corner illuminance. Maximum image size Ø42 mm; suits large-format area-scan and 4K 7 µm line-scan cameras.
Product Highlights
Excellent image-clarity consistency. — Large aperture, low distortion, low chromatic aberration, and high corner illuminance. — Maximum image size Ø42 mm; suits large-format area-scan and 4K 7 µm line-scan cameras.
Specifications
| Product Model | MVL-AF3528M-M42 |
|---|---|
| Type | M42-Mount Lens, 35mm, F2.8, Image Size φ42mm, Recommended Magnification 0.05~0.2X |
| Focal Length | 35 mm |
| F Number | F2.8 to F16 |
| Image Size | Φ42 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M58 × 0.75 |
| Mount | M42 × P1 |
| Flange Back Length | 12 mm |
| Dimension | Φ61 mm × 116 mm (Φ2.4" × 4.6") |
| Weight | 622 g (1.4 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | 0.40% |
| Magnification Range | 0.2 x to 0.001 x |
| Working Distance Range | 163 mm to inf mm |
