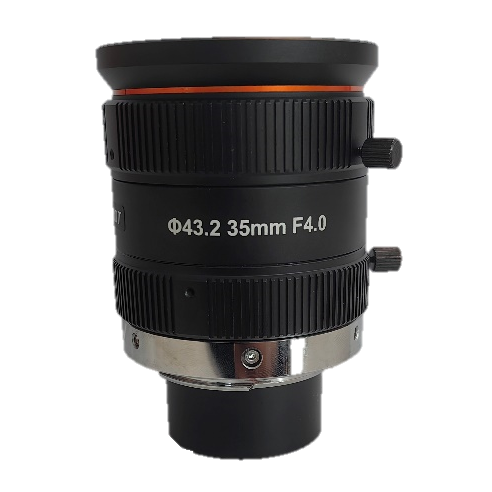

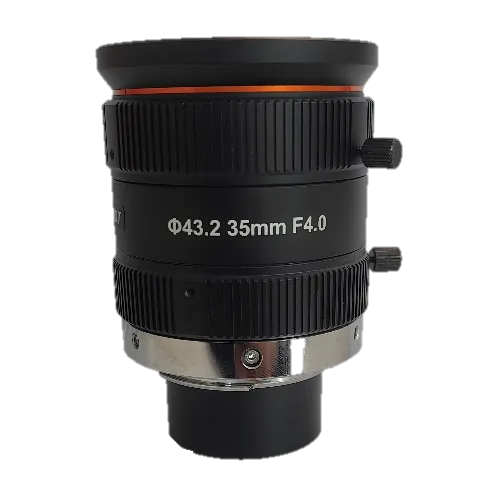

F-Mount Lens, 35mm, F4.0, Full Frame φ43.2mm, Recommended Magnification 0.050~0.001X
Adopts high-precision lens for 8k 5 μm line scan cameras and full-frame area scan cameras.
- High-precision lens for 8K 5 µm line-scan and full-frame area-scan cameras.
- Excellent image-clarity consistency and low distortion.
- Ultra-high image resolution at the maximum aperture of F4.
- Maximum image size Ø43.2 mm.
Camera Solutions
F-Mount Lens, 35mm, F4.0, Full Frame φ43.2mm, Recommended Magnification 0.050~0.001X is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-LF3540M-F. Key data: focal length 35 mm, f number F4.0 to F16, mount F-mount, image size Φ43.2 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Excellent image-clarity consistency and low distortion. Ultra-high image resolution at the maximum aperture of F4. Maximum image size Ø43.2 mm.
Product Highlights
High-precision lens for 8K 5 µm line-scan and full-frame area-scan cameras. — Excellent image-clarity consistency and low distortion. — Ultra-high image resolution at the maximum aperture of F4. — Maximum image size Ø43.2 mm.
Specifications
| Product Model | MVL-LF3540M-F |
|---|---|
| Type | F-Mount Lens, 35mm, F4.0, Full Frame φ43.2mm, Recommended Magnification 0.050~0.001X |
| Focal Length | 35 mm |
| F Number | F4.0 to F16 |
| Image Size | Φ43.2 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M52 × P0.75 |
| Mount | F-mount |
| Flange Back Length | 46.5 mm |
| Dimension | Φ61 mm × 67.12 mm to 73.62 mm (Φ2.4" × 2.6" to 2.9") |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | 0.46% |
| Magnification Range | 0.05 x to 0.001 x |
| Working Distance Range | 700 mm to inf mm (tolerance: ±5 mm) |
| Conjugate Distance Range | 816 mm to inf mm (tolerance: ±9 mm) |
