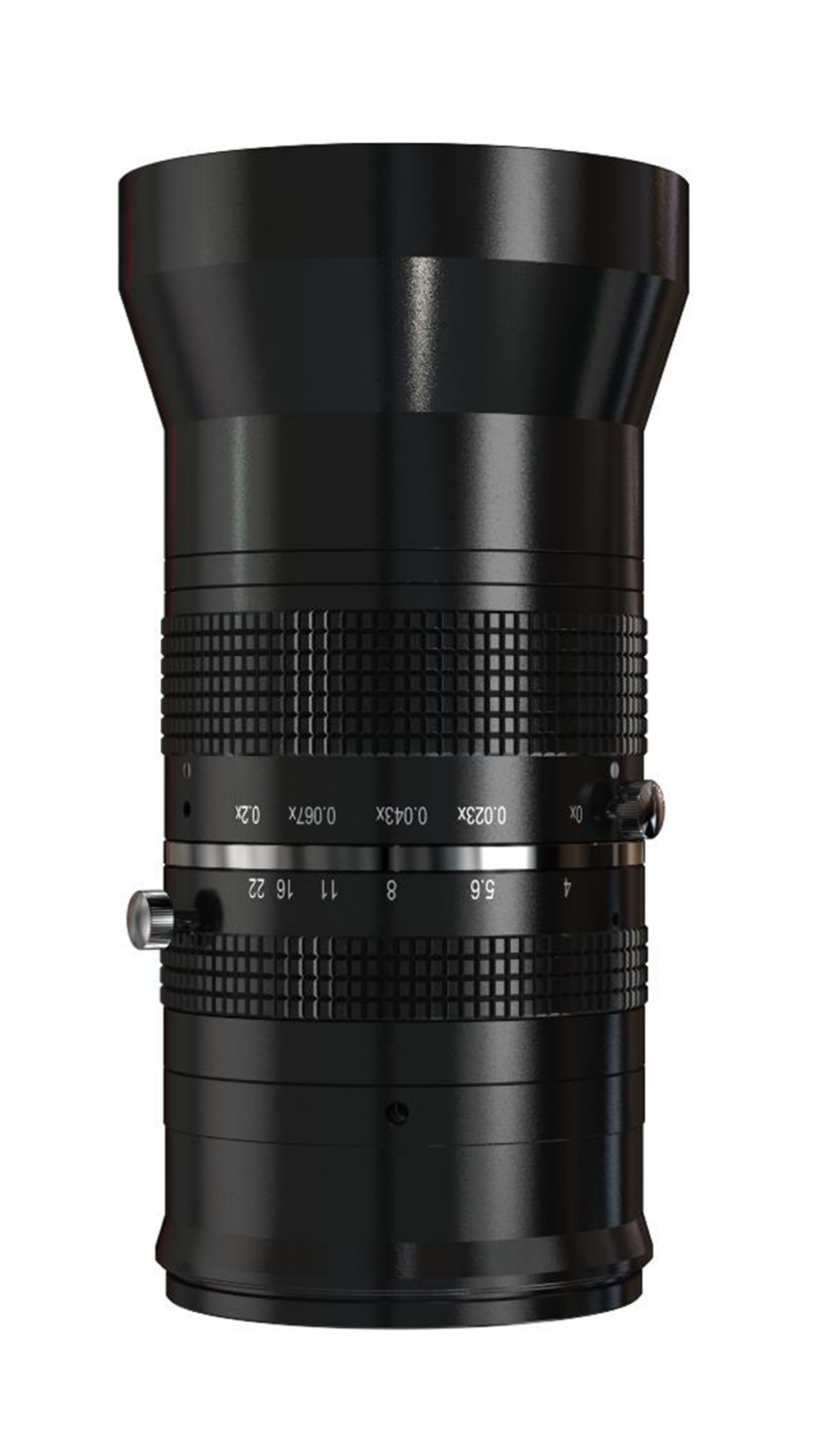

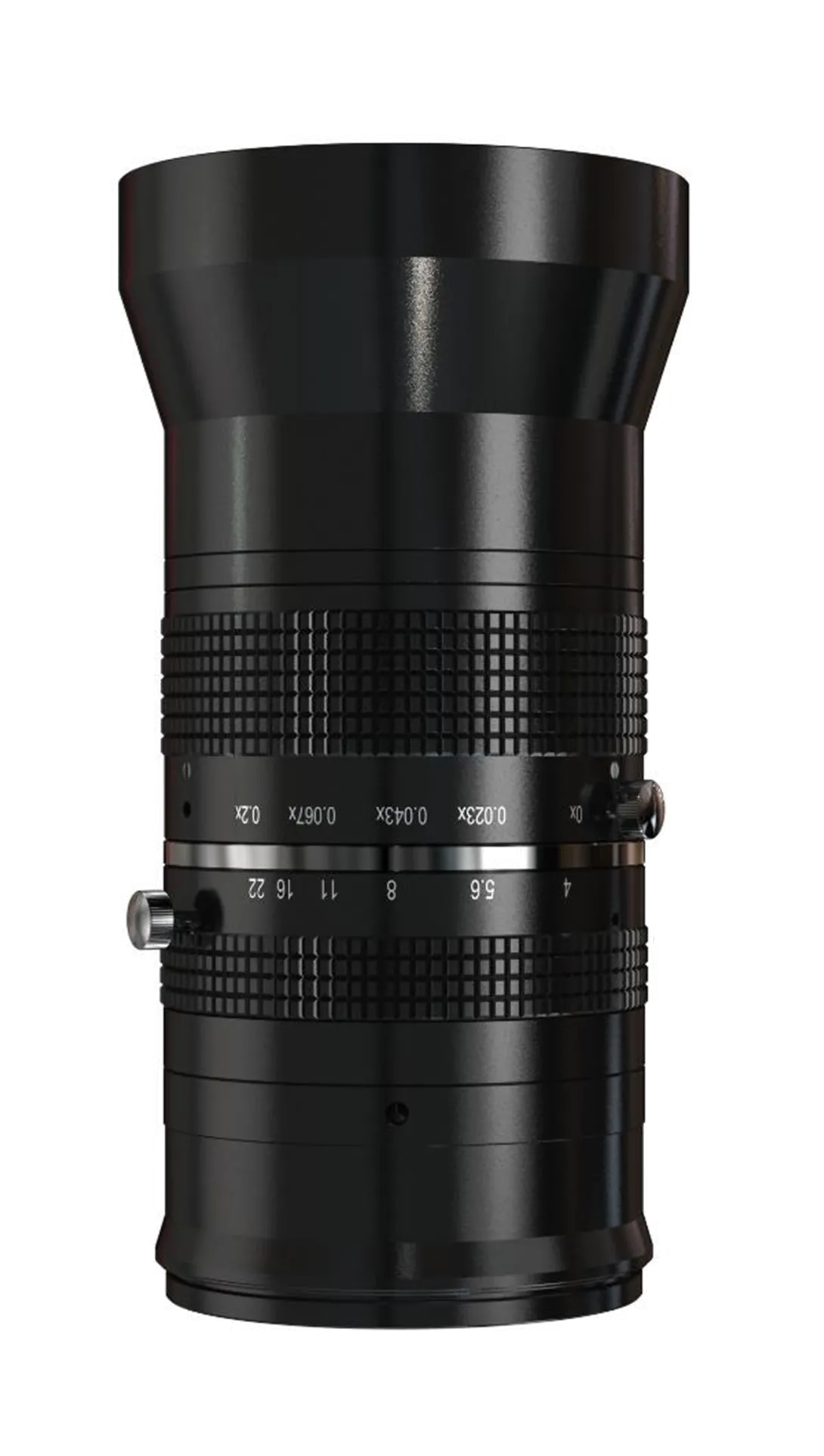

M58-Mount Lens, 35mm, F4.0, Full Frame φ46mm, 65MP
Adopts high-precision lens for 65MP area scan cameras.
Highlights
- High-precision lens designed for 65 MP area-scan cameras.
- Excellent image-clarity consistency and low distortion.
- Maximum image size Ø42 mm.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
M58-Mount Lens, 35mm, F4.0, Full Frame φ46mm, 65MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-LF3540M-M58-65MP. Key data: focal length 35 mm, f number F4.0 to F22, mount M58 × P0.75, image size Ø42 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Excellent image-clarity consistency and low distortion. Maximum image size Ø42 mm.
M58-Mount Lens, 35mm, F4.0, Full Frame φ46mm, 65MP (MVL-LF3540M-M58-65MP) at a glance: 35 mm focal length, F4.0 to F22, Ø42 mm image size, M58 × P0.75, M67 × P0.75 filter thread and weighs 760.84g. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
High-precision lens designed for 65 MP area-scan cameras. — Excellent image-clarity consistency and low distortion. — Maximum image size Ø42 mm.
Specifications
| Product Model | MVL-LF3540M-M58-65MP |
|---|---|
| Type | M58-Mount Lens, 35mm, F4.0, Full Frame φ46mm, 65MP |
| Focal Length | 35 mm |
| F Number | F4.0 to F22 |
| Image Size | Ø42 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M67 × P0.75 |
| Mount | M58 × P0.75 |
| Flange Back Length | 11.48 mm |
| Dimension | Ø69.4 mm ×131.1 mm (Ø2.7" × 5.2") |
| Weight | 760.84g |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | 0.5% |
| Magnification Range | 0.001 x to 0.2 x |
| Working Distance Range | 150 mm to inf mm (tolerance: ± 5 mm) |
