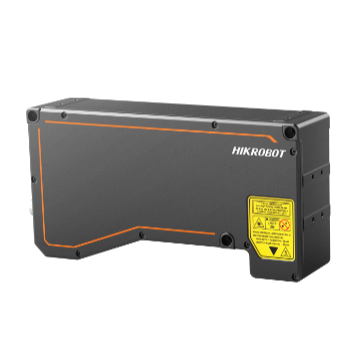

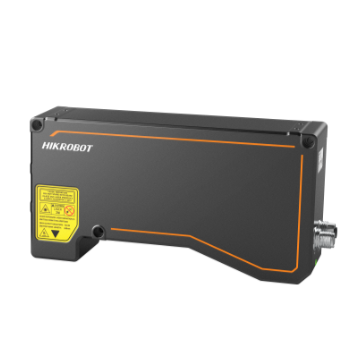

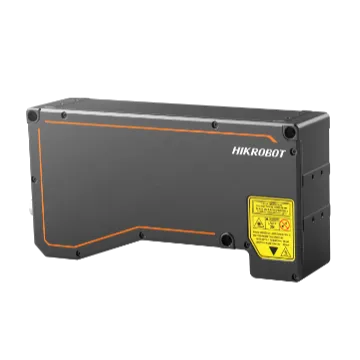

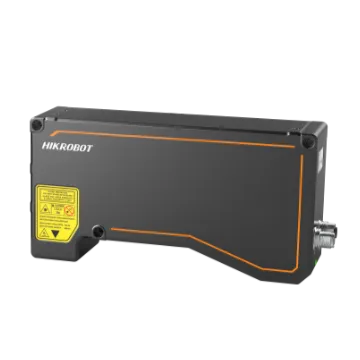

3D Laser Profile Sensor
Adopts high-speed, high-resolution, and large-pixel element image chips.
- High-precision 3D measurement.
- FPGA hardware drives a 49 kHz scan frame rate.
- Custom large-iris lens with an ultra-uniform laser optical solution.
- Ultra-high sub-pixel algorithm delivers submicron precision.
- Offers multiple exposure modes for robust imaging.
- Multi-frame integration builds complete profiles.
- Multiple filter modes deliver stable data.
- Integrated design simplifies installation and commissioning.
Camera Solutions
3D Laser Profile Sensor is a 3D sensor from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-DP4430-03P. Key data: reference distance 430 mm, measurement range z axis 340 mm. Typical use is height, volume and profile measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- 3D Camera DP2050-01P V2.0, ref. distance 47 mm, Z-range 6 mm (MV-DP2050-01P V2.0)
- 3D Camera DP2060-01P V2.0, ref. distance 64 mm, Z-range 26 mm (MV-DP2060-01P V2.0)
- 3D Camera DP2060-01P, ref. distance 64 mm, Z-range 26 mm (MV-DP2060-01P)
- 3D Camera DP2061-01P V2.0, ref. distance 60.2 mm, Z-range 10.4 mm (MV-DP2061-01P V2.0)
- 3D Camera DP2080-01P V2.0, ref. distance 80.2 mm, Z-range 15.2 mm (MV-DP2080-01P V2.0)
- 3D Camera DP2120-01P V2.0, ref. distance 120 mm, Z-range 80 mm (MV-DP2120-01P V2.0)
- 3D Camera DP2120-01P, ref. distance 120 mm, Z-range 80 mm (MV-DP2120-01P)
- 3D Camera DP2140-01P V2.0, ref. distance 141 mm, Z-range 26 mm (MV-DP2140-01P V2.0)
Description
FPGA hardware drives a 49 kHz scan frame rate. Custom large-iris lens with an ultra-uniform laser optical solution. Ultra-high sub-pixel algorithm delivers submicron precision. Offers multiple exposure modes for robust imaging. Multi-frame integration builds complete profiles. Multiple filter modes deliver stable data. Integrated design simplifies installation and commissioning.
Product Highlights
High-precision 3D measurement. — FPGA hardware drives a 49 kHz scan frame rate. — Custom large-iris lens with an ultra-uniform laser optical solution. — Ultra-high sub-pixel algorithm delivers submicron precision. — Offers multiple exposure modes for robust imaging. — Multi-frame integration builds complete profiles. — Multiple filter modes deliver stable data. — Integrated design simplifies installation and commissioning.
Specifications
| Product Model | MV-DP4430-03P |
|---|---|
| Type | 3D Laser Profile Sensor |
| Data Points Profile | 4080 |
| Reference Distance | 430 mm |
| Measurement Range Z Axis | 340 mm |
| Measurement Range X Axis | 153 mm @ near field of view 241 mm @ reference distance 329 mm @ far field of view |
| Resolution Z Axis | 8.4 μm to 35.5 μm |
| Repeatability Z Axis | 2.27 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z Axis Of Mr | 0.01 |
| Profile Data Interval | 35.7 μm to 85.4 μm |
| Scan Frame Rate | 2.5 kHz (within max. measurement range), max. 49 kHz (in ROI mode) |
| Data Output | Profile data, depth image, brightness image |
| Trigger Mode | Software trigger, external trigger (differential encoder) |
| Laser Safety Class | Class 3R |
| Wavelength | 650 nm |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1 |
| Power Consumption | Typ. 20 W @ 24 VDC |
| Power Supply | 24 VDC |
| Dimension | 213.5 mm × 110.5 mm × 56 mm (8.4" × 4.4" × 2.2") |
| Weight | Approx. 1296 g (2.9 lb.) |
| Ingress Protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | 3DMVS (V3.1.0 and above), VM3D, or third-party software |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
