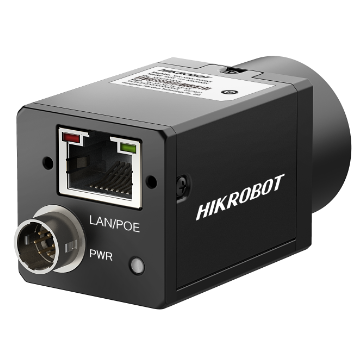

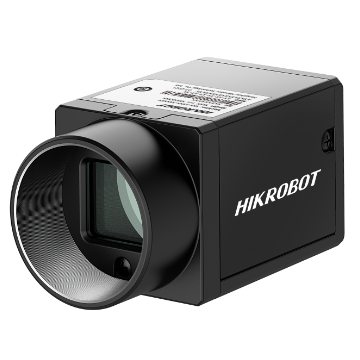

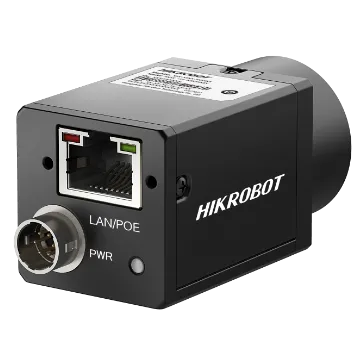

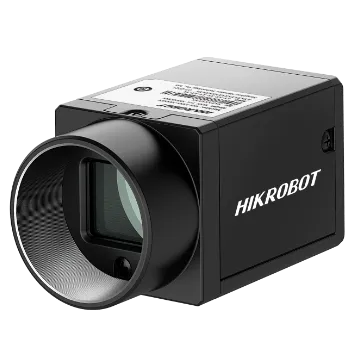

Area Scan Camera, 5MP, GigE, AR0521, V2, Color
Adopts low consumption design with stable performance.
- Low-power design with stable performance.
- Offers auto or manual gain and exposure adjustment.
- Supports hardware trigger, software trigger, and free-run modes.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 5MP, GigE, AR0521, V2, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CU050-30GC V2. Key data: resolution 2592 × 1944, sensor type CMOS, rolling shutter, max frame rate 24 fps @ 2592 × 1944 Bayer GR 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 5MP, GigE, AR0521, Color (MV-CU050-30GC)
- Area Scan Camera, 5MP, GigE, AR0521, Mono (MV-CU050-30GM)
- Area Scan Camera, 5MP, GigE, AR0521, V2, Mono (MV-CU050-30GM V2)
- Area Scan Camera, 5MP, GigE (MV-CU050-60GM)
- Area Scan Camera, 5MP, USB3 (MV-CU050-60UM)
- Area Scan Camera, 5MP, GigE, GMAX2505, Color (MV-CU050-90GC)
- Area Scan Camera, 5MP, GigE, GMAX2505, Mono (MV-CU050-90GM)
- Area Scan Camera, 5MP, USB3, GMAX2505, Color (MV-CU050-90UC)
Description
Offers auto or manual gain and exposure adjustment. Supports hardware trigger, software trigger, and free-run modes. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Low-power design with stable performance. — Offers auto or manual gain and exposure adjustment. — Supports hardware trigger, software trigger, and free-run modes. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CU050-30GC V2 |
|---|---|
| Type | Area Scan Camera, 5MP, GigE, AR0521, V2, Color |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | AR0521 |
| Pixel Size | 2.2 μm × 2.2 μm |
| Sensor Size | 1/2.5" |
| Resolution | 2592 × 1944 |
| Max Frame Rate | 24 fps @ 2592 × 1944 Bayer GR 8 |
| Dynamic Range | 63 dB |
| SNR | 37 dB |
| Gain | 0 dB to 15 dB |
| Exposure Time | 21 μs to 1 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Bayer GR 8/10/10Packed/12/12Packed |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, PoE is optional |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.81 W @ 12 VDC |
