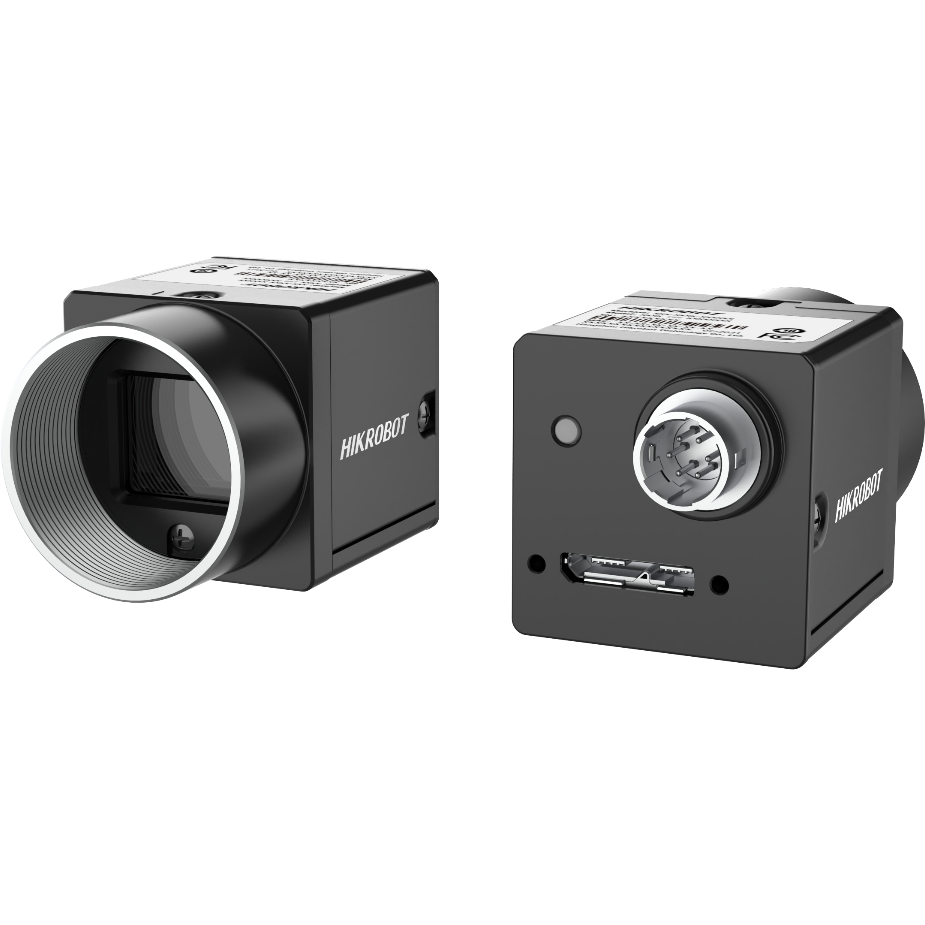

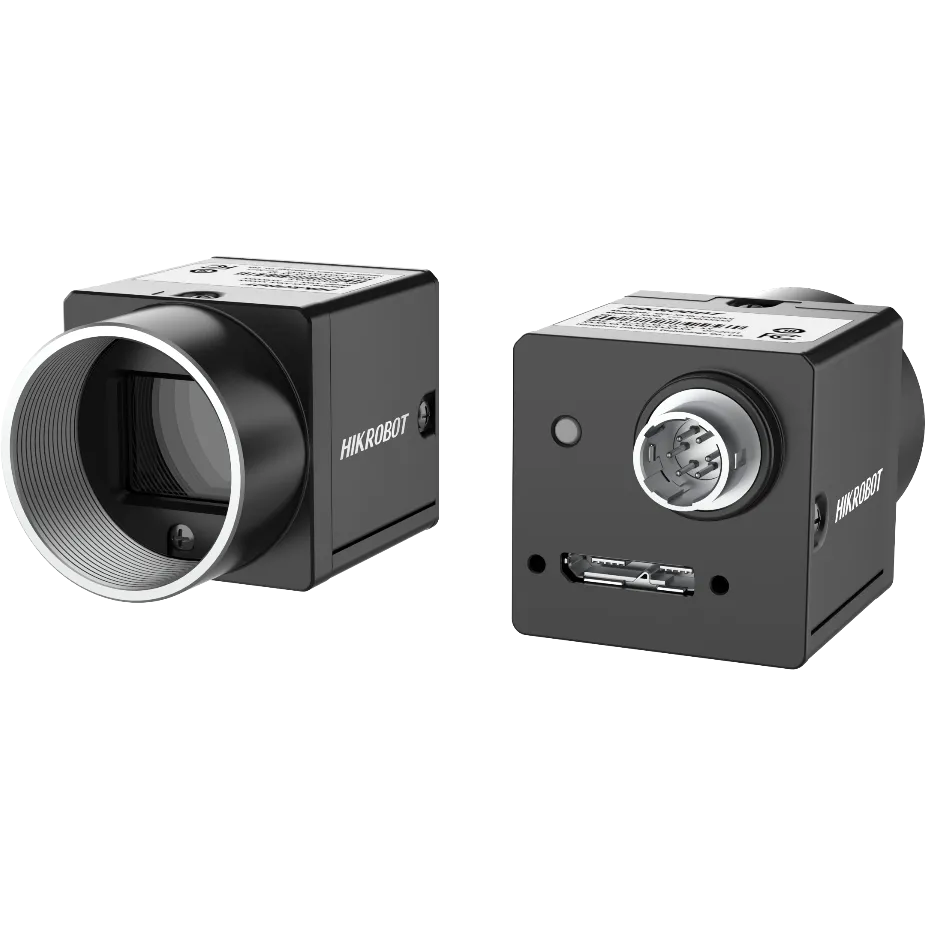

Area Scan Camera, 5MP, USB3

Name: Area Scan Camera, 5MP, USB3
Brand: HIKROBOT
SKU: MV-CU050-60UM

Adopts brand new design to reduce power consumption.

Send inquiry

Download datasheet (PDF)

Highlights

Redesigned for lower power consumption.
ROI boosts frame rate; binning and horizontal/vertical flip also supported.
Supports hardware trigger, software trigger, and free-run modes.
Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CU050-60UM Category: Area & Line Scan Cameras

Area Scan Camera, 5MP, USB3 is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CU050-60UM. Key data: resolution 2592 × 1944, sensor type CMOS, rolling shutter, max frame rate 48.2 fps @2592 × 1944 Mono 8, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

ROI boosts frame rate; binning and horizontal/vertical flip also supported. Supports hardware trigger, software trigger, and free-run modes. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Area Scan Camera, 5MP, USB3 (MV-CU050-60UM) at a glance: 2592 × 1944 resolution, HK sensor, 1/2.5" sensor format, 2.2 μm × 2.2 μm pixel size, up to 48.2 fps, Mono output, USB3.0, compatible with USB2.0 interface and C-mount lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Redesigned for lower power consumption. — ROI boosts frame rate; binning and horizontal/vertical flip also supported. — Supports hardware trigger, software trigger, and free-run modes. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CU050-60UM
Type	Area Scan Camera, 5MP, USB3
Sensor Type	CMOS, rolling shutter
Sensor Model	HK
Pixel Size	2.2 μm × 2.2 μm
Sensor Size	1/2.5"
Resolution	2592 × 1944
Max Frame Rate	48.2 fps @2592 × 1944 Mono 8
Dynamic Range	65.4 dB
SNR	40.7 dB
Gain	0 dB to 24 dB
Exposure Time	12 μs to 1.25 sec
Exposure Mode	Off/Once/Continuous exposure mode, supports Global Reset, Rolling, and Trigger Rolling.
Pixel Format	Mono 8/10/10Packed/12/12Packed
Mono Color	Mono
Binning	Supports 1 × 1, 2 × 2
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power Supply	9 VDC to 24 VDC, supports USB3.0 power supply
Lens Mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 76 g (0.2 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 80% RH, non-condensing
Client Software	MVS or third-party software meeting with USB3 Vision Protocol
Operating System	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 2.7 W@5 VDC (USB3.0 provides power supply)
