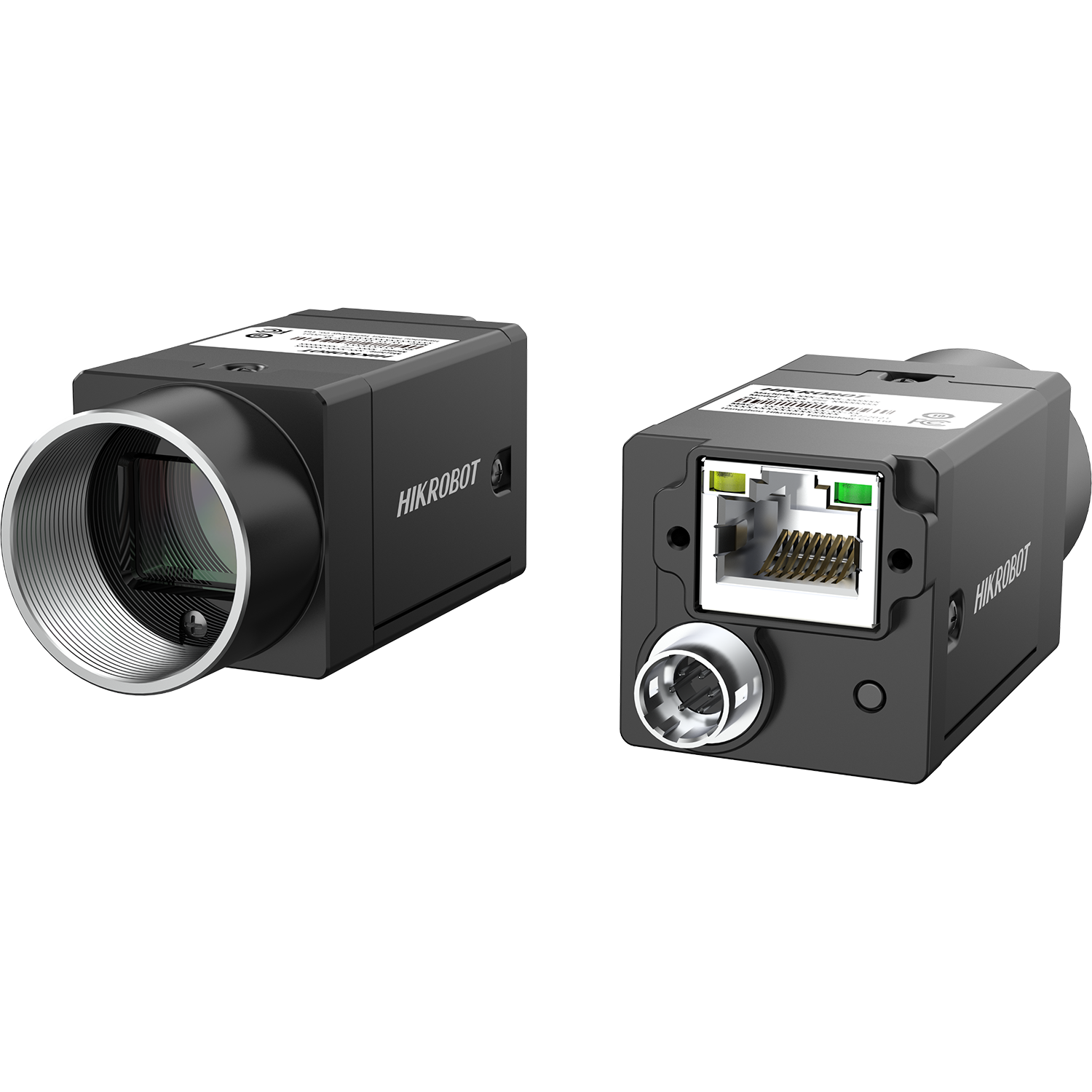

Area Scan Camera, 5MP, GigE, GMAX2505, Mono
Adopts brand new design to reduce power consumption.
- Redesigned for lower power consumption.
- Offers auto or manual gain and exposure, plus manual LUT and gamma correction.
- Supports custom ROI and horizontal/vertical image flipping.
- Compact design for flexible installation.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 5MP, GigE, GMAX2505, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CU050-90GM. Key data: resolution 2600 × 2160, sensor type CMOS, global shutter, max frame rate 21 fps @2600 × 2160 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 5MP, GigE, AR0521, V2, Color (MV-CU050-30GC V2)
- Area Scan Camera, 5MP, GigE, AR0521, Mono (MV-CU050-30GM)
- Area Scan Camera, 5MP, GigE, AR0521, V2, Mono (MV-CU050-30GM V2)
- Area Scan Camera, 5MP, GigE (MV-CU050-60GM)
- Area Scan Camera, 5MP, USB3 (MV-CU050-60UM)
- Area Scan Camera, 5MP, GigE, GMAX2505, Color (MV-CU050-90GC)
- Area Scan Camera, 5MP, USB3, GMAX2505, Color (MV-CU050-90UC)
- Area Scan Camera, 5MP, USB3, GMAX2505, Mono (MV-CU050-90UM)
Description
Offers auto or manual gain and exposure, plus manual LUT and gamma correction. Supports custom ROI and horizontal/vertical image flipping. Compact design for flexible installation. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Redesigned for lower power consumption. — Offers auto or manual gain and exposure, plus manual LUT and gamma correction. — Supports custom ROI and horizontal/vertical image flipping. — Compact design for flexible installation. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CU050-90GM |
|---|---|
| Type | Area Scan Camera, 5MP, GigE, GMAX2505, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | GMAX2505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1/2" |
| Resolution | 2600 × 2160 |
| Max Frame Rate | 21 fps @2600 × 2160 Mono 8 |
| Dynamic Range | 63.8 dB |
| SNR | 37 dB |
| Gain | 0 dB to 12 dB |
| Exposure Time | 3 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, PoE is optional |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 47.6 mm (1.1" × 1.1" × 1.9") |
| Weight | Approx. 117 g (0.3 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 2.3 W@12 VDC |
