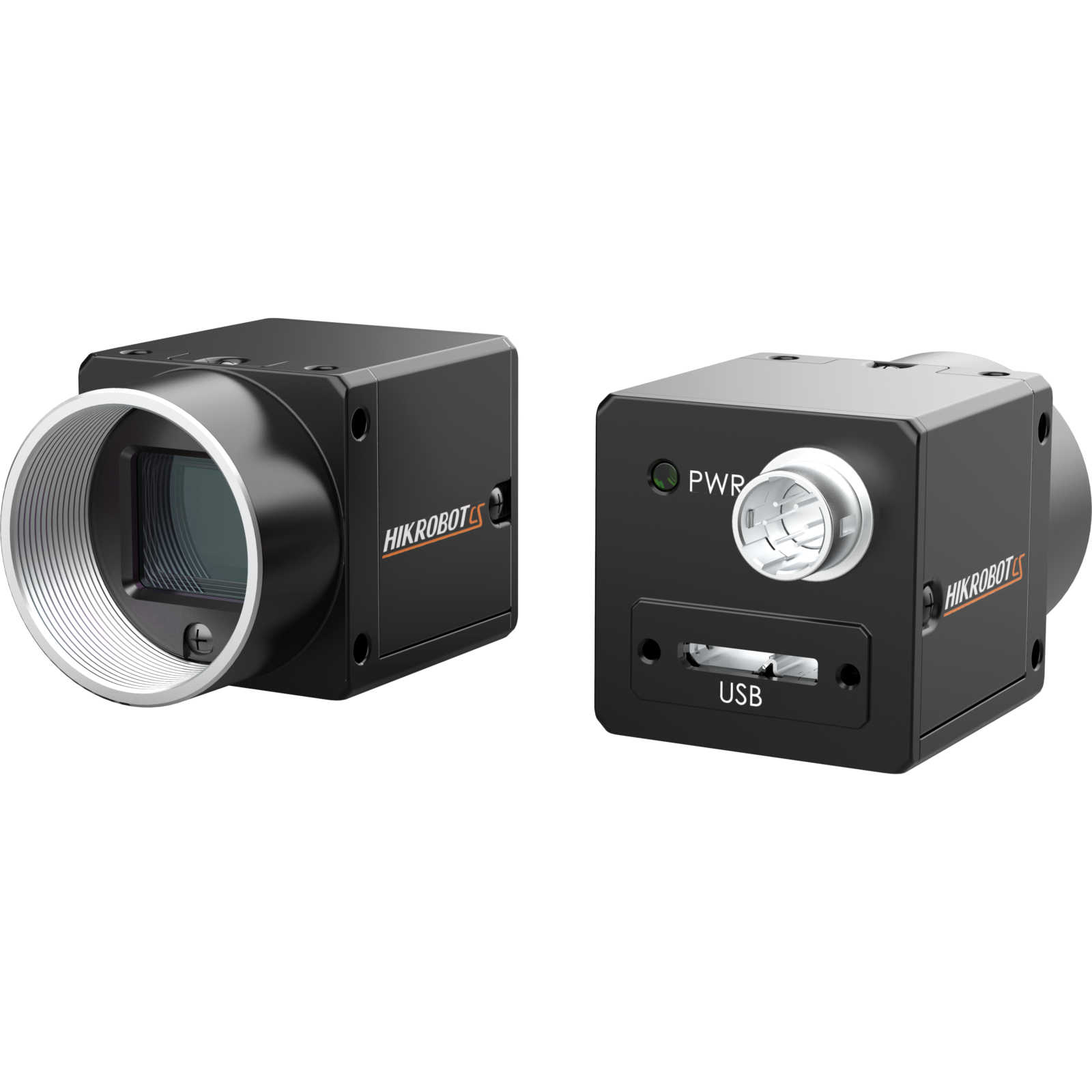

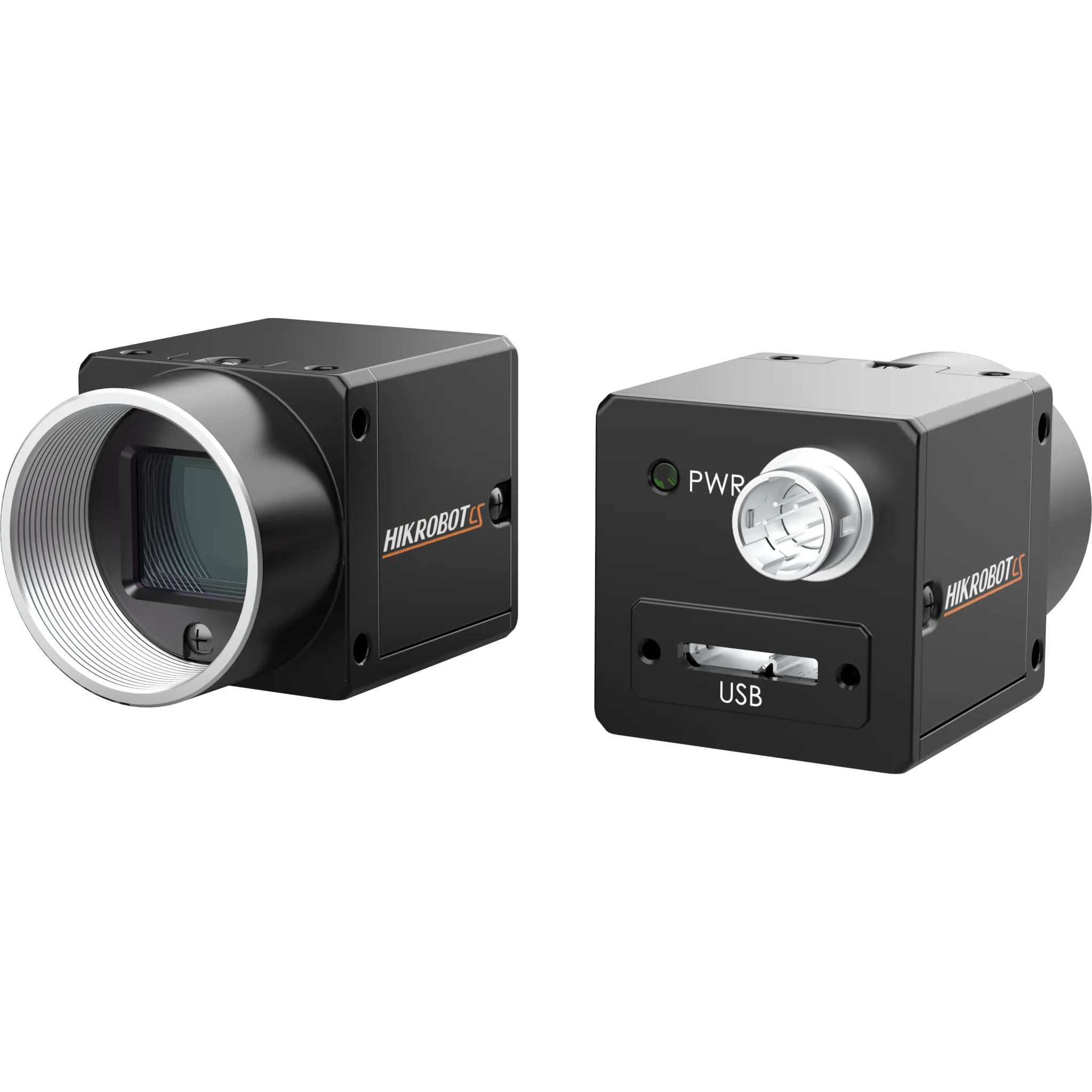

Area Scan Camera, 5MP, USB3.0, 2nd Gen., Color
Adopts brand new structure design and supports installation from four sides.
- Fresh structural design supports installation from four sides.
- Super Palette and Super Bayer deliver high-quality images.
- Offers auto or manual gain, exposure, white balance, LUT, and gamma correction, plus Sequencer.
- Supports hardware trigger, software trigger, and free-run modes.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 5MP, USB3.0, 2nd Gen., Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS050-60UC. Key data: resolution 2448 × 2048, sensor type CMOS, global shutter, max frame rate 60 fps @2448 × 2048 Bayer GR 8, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 5MP, GigE, V5, Color (MV-CS050-60GC V5)
- Area Scan Camera, 5MP, GigE, 2nd Generation, Mono (MV-CS050-60GM)
- Area Scan Camera, 5MP, GigE, V5, Mono (MV-CS050-60GM V5)
- Area Scan Camera, 5MP, GigE, 2nd Generation, NIR enhanced (MV-CS050-60GN)
- Area Scan Camera, 5MP, USB3.0, Color (MV-CS050-60UC V5)
- Area Scan Camera, 5MP, USB3.0, 2nd Gen., Mono (MV-CS050-60UM)
- Area Scan Camera, 5MP, USB3.0, Mono (MV-CS050-60UM V5)
- Area Scan Camera, 5MP, GigE, Color (MV-CS050-80GC)
Description
Super Palette and Super Bayer deliver high-quality images. Offers auto or manual gain, exposure, white balance, LUT, and gamma correction, plus Sequencer. Supports hardware trigger, software trigger, and free-run modes. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Fresh structural design supports installation from four sides. — Super Palette and Super Bayer deliver high-quality images. — Offers auto or manual gain, exposure, white balance, LUT, and gamma correction, plus Sequencer. — Supports hardware trigger, software trigger, and free-run modes. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CS050-60UC |
|---|---|
| Type | Area Scan Camera, 5MP, USB3.0, 2nd Gen., Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 2/3" |
| Resolution | 2448 × 2048 |
| Max Frame Rate | 60 fps @2448 × 2048 Bayer GR 8 |
| Dynamic Range | 73.9 dB |
| SNR | 42.4 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 5 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.8 W@5 VDC (USB3.0 provides power supply) |
