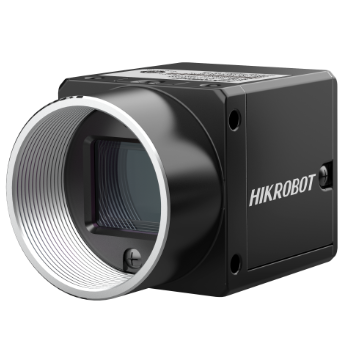

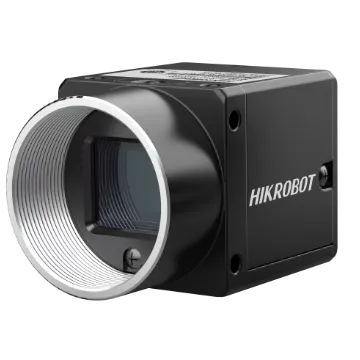

Area Scan Camera, 5MP, USB3.0, Mono

Name: Area Scan Camera, 5MP, USB3.0, Mono
Brand: HIKROBOT
SKU: MV-CS050-60UM V5

Adopts brand new structure design and supports installation from four sides.

Send inquiry

Download datasheet (PDF)

Highlights

Fresh structural design supports installation from four sides.
Super Palette and Super Bayer deliver high-quality images.
Offers auto or manual gain, exposure, white balance, LUT, and gamma correction, plus Sequencer.
Supports hardware trigger, software trigger, and anyway mode.
Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CS050-60UM V5 Category: Area & Line Scan Cameras

Area Scan Camera, 5MP, USB3.0, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS050-60UM V5. Key data: resolution 2448 × 2048, sensor type CMOS, global shutter, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Super Palette and Super Bayer deliver high-quality images. Offers auto or manual gain, exposure, white balance, LUT, and gamma correction, plus Sequencer. Supports hardware trigger, software trigger, and anyway mode. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Area Scan Camera, 5MP, USB3.0, Mono (MV-CS050-60UM V5) at a glance: 2448 × 2048 resolution, Stacked BSI sensor, 2/3" sensor format, 3.45 μm × 3.45 μm pixel size, up to 60 fps, Mono output, USB 3.0, compatible with USB 2.0 interface and C-mount lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Fresh structural design supports installation from four sides. — Super Palette and Super Bayer deliver high-quality images. — Offers auto or manual gain, exposure, white balance, LUT, and gamma correction, plus Sequencer. — Supports hardware trigger, software trigger, and anyway mode. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CS050-60UM V5
Type	Area Scan Camera, 5MP, USB3.0, Mono
Sensor Type	CMOS, global shutter
Sensor Model	Stacked BSI
Pixel Size	3.45 μm × 3.45 μm
Sensor Size	2/3"
Resolution	2448 × 2048
Max Frame Rate	60 fps @ 2448 × 2048 Mono 8 60 fps @ 2448 × 2048 Bayer GR 8
Dynamic Range	73.9 dB
SNR	42.4 dB
Gain	High full well capacity: 0 dB to 12.8 dB High sensitivity: 0 dB to 24 dB
Exposure Time	High full well capacity: 30 μs to 10 sec High sensitivity: 5 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/10Packed/12/12Packed Mono 8, Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Mono Color	Mono Color
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	USB 3.0, compatible with USB 2.0

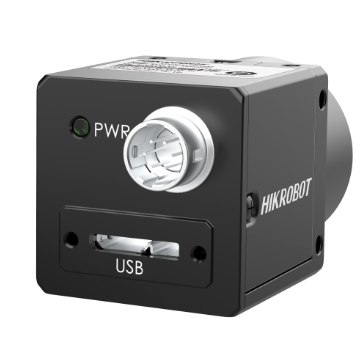

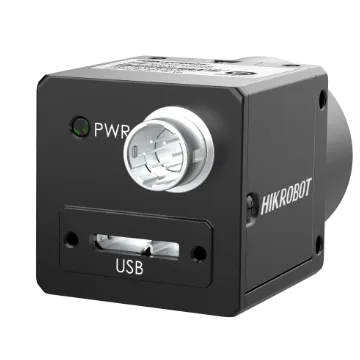

Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power Supply	9 VDC to 24 VDC, supports USB 3.0 power supply
Lens Mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 80 g (0.2 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with USB3 Vision Protocol
Operating System	32/64-bit Windows 7/10/11, and 32/64-bit Linux
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 1.5 W @ 5 VDC (USB 3.0 provides power supply)
