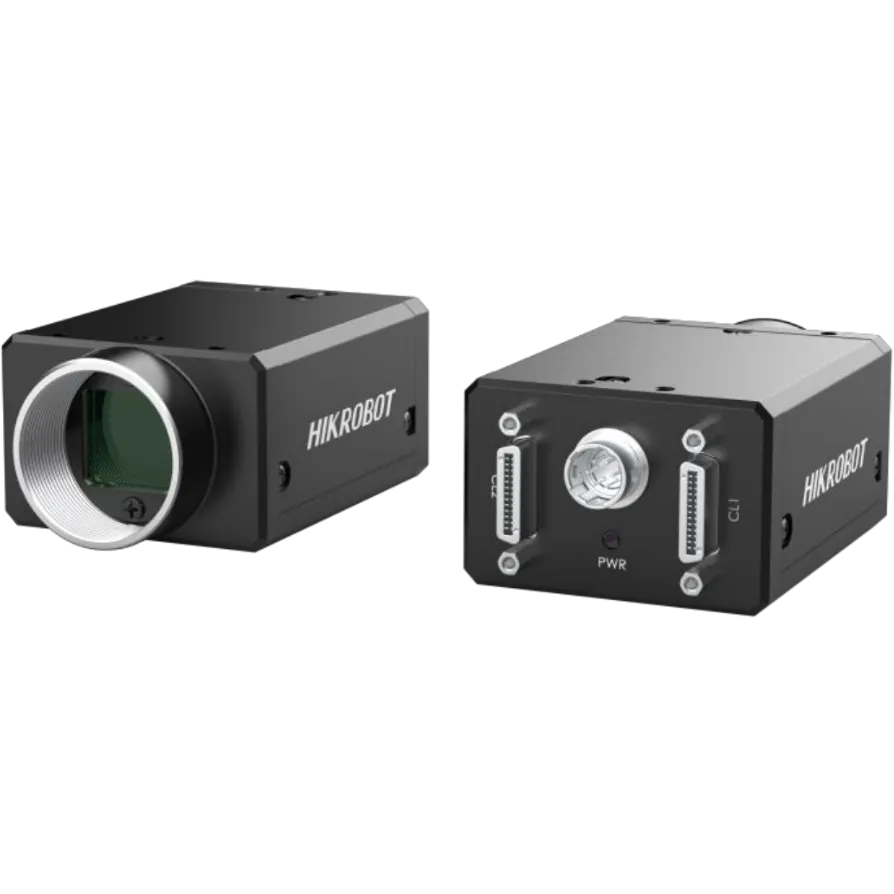

Area Scan Camera, 5MP, Camera Link, IMX250, Color
Adopts global shutter CMOS sensor providing high signal-to-noise ratio, wide dynamic range, and high-quality image.
- A global-shutter CMOS sensor delivers high SNR, wide dynamic range, and high image quality.
- Resolution of 2432 × 2048 with 3.45 µm × 3.45 µm pixels.
- Camera Link interface supports Base, Medium, Full, and 80-bit configuration modes.
- Compact design with mounting holes for flexible mounting.
Camera Solutions
Area Scan Camera, 5MP, Camera Link, IMX250, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH050-10CC. Key data: resolution 2432 × 2048, sensor type CMOS, global shutter, max frame rate 140 fps @2432 × 2048, data interface Camera Link with SDR interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 5MP, Camera Link, IMX250, Mono (MV-CH050-10CM)
- Area Scan Camera, 5MP, USB3, IMX250, Color, V4 (MV-CH050-10UC)
- Area Scan Camera, 5MP, USB3, IMX250, Mono, V4 (MV-CH050-10UM)
- Area Scan Camera, 5MP, 2.5GigE, Color (MV-CH050-60NC)
- Area Scan Camera, 5MP, 2.5GigE, Mono (MV-CH050-60NM)
- Area Scan Camera, 5MP, USB3, Color (MV-CH050-60UC)
- Area Scan Camera, 5MP, USB3, Mono (MV-CH050-60UM)
- Area Scan Camera, 5MP, GMAX3405, 10GigE, Color, C-mount, with fan (MV-CH050-90TC-C-NF)
Description
Resolution of 2432 × 2048 with 3.45 µm × 3.45 µm pixels. Camera Link interface supports Base, Medium, Full, and 80-bit configuration modes. Compact design with mounting holes for flexible mounting.
Product Highlights
A global-shutter CMOS sensor delivers high SNR, wide dynamic range, and high image quality. — Resolution of 2432 × 2048 with 3.45 µm × 3.45 µm pixels. — Camera Link interface supports Base, Medium, Full, and 80-bit configuration modes. — Compact design with mounting holes for flexible mounting.
Specifications
| Product Model | MV-CH050-10CC |
|---|---|
| Type | Area Scan Camera, 5MP, Camera Link, IMX250, Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX250 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 2/3" |
| Resolution | 2432 × 2048 |
| Max Frame Rate | 140 fps @2432 × 2048 |
| Dynamic Range | 75.4 dB |
| SNR | 40 dB |
| Gain | 0 dB to 17 dB |
| Exposure Time | 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Bayer RG 8/10/12, RGB 8 |
| Mono Color | Color |
| Binning | Not support |
| Decimation | Not support |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Camera Link with SDR interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client Software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating System | 32/64-bit Windows XP/7/10 |
| Compatibility | Camera Link V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 3.41 W@12 VDC |
| Configuration Mode | Base, Medium, Full, 80-bit |
| Tap Geometry | 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
| Tap Number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Pixel Clock | 60 MHz, 70 MHz, 85 MHz |
