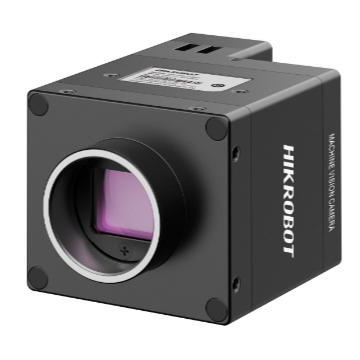

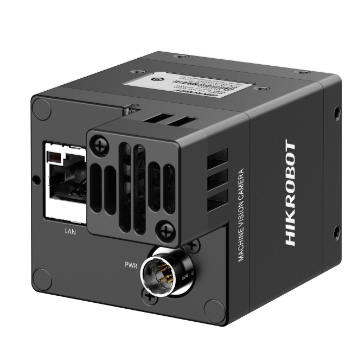

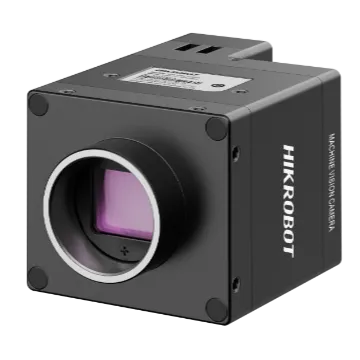

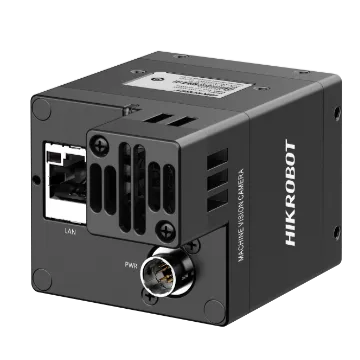

Area Scan Camera, 5MP, GMAX3405, 10GigE, Color, C-mount, with fan

Name: Area Scan Camera, 5MP, GMAX3405, 10GigE, Color, C-mount, with fan
Brand: HIKROBOT
SKU: MV-CH050-90TC-C-NF

Resolution of 2448 × 2048, and pixel size of 3.4 μm × 3.4 μm.

Send inquiry

Download datasheet (PDF)

Highlights

Resolution of 2448 × 2048 with 3.4 µm × 3.4 µm pixels.
C-Mount lens compatible.
Connects via 10 GigE, with cable runs up to 100 m and no repeater required.
Mounting holes on the panels for flexible mounting.
Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH050-90TC-C-NF Category: Area & Line Scan Cameras

Area Scan Camera, 5MP, GMAX3405, 10GigE, Color, C-mount, with fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH050-90TC-C-NF. Key data: resolution 2448 × 2048, sensor type CMOS, global shutter, max frame rate 163.4 fps @ 2448 × 2048 Bayer GB 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

C-Mount lens compatible. Connects via 10 GigE, with cable runs up to 100 m and no repeater required. Mounting holes on the panels for flexible mounting. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Area Scan Camera, 5MP, GMAX3405, 10GigE, Color, C-mount, with fan (MV-CH050-90TC-C-NF) at a glance: 2448 × 2048 resolution, Gpixel GMAX3405 sensor, 2/3" sensor format, 3.4 μm × 3.4 μm pixel size, up to 163.4 fps, Color output, 10 Gigabit Ethernet (10000 Mbit/s) interface and C-mount lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Resolution of 2448 × 2048 with 3.4 µm × 3.4 µm pixels. — C-Mount lens compatible. — Connects via 10 GigE, with cable runs up to 100 m and no repeater required. — Mounting holes on the panels for flexible mounting. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Specifications

Product Model	MV-CH050-90TC-C-NF
Type	Area Scan Camera, 5MP, GMAX3405, 10GigE, Color, C-mount, with fan
Sensor Type	CMOS, global shutter
Sensor Model	Gpixel GMAX3405
Pixel Size	3.4 μm × 3.4 μm
Sensor Size	2/3"
Resolution	2448 × 2048
Max Frame Rate	163.4 fps @ 2448 × 2048 Bayer GB 8
Dynamic Range	66.1 dB
SNR	39.2 dB
Gain	0 dB to 6.1 dB
Exposure Time	2 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode, supports Trigger Width
Pixel Format	Bayer GB 8/10/10Packed/12/12Packed
Mono Color	Color
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Power Supply	9 VDC to 24 VDC
Lens Mount	C-mount
Dimension	50 mm × 45 mm × 68.6 mm (2.0" × 1.8" × 2.7")
Weight	Approx. 212 g (0.5 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with GigE Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 8.4 W @ 12 VDC
