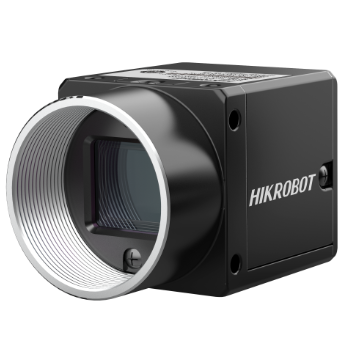

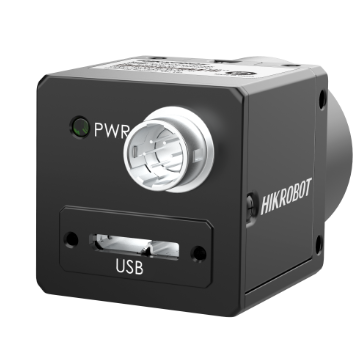

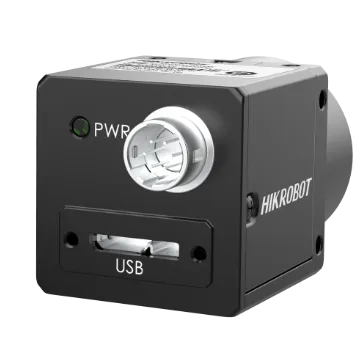

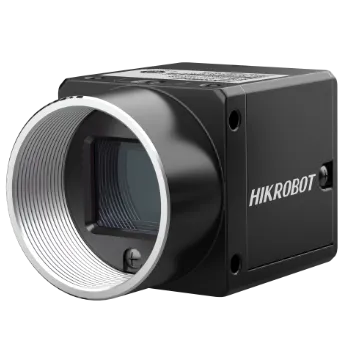

Area Scan Camera, 5MP, USB3, Mono
Adopts brand new structure design and supports installation from four sides.
- Fresh structural design supports installation from four sides.
- Sequencer, Super Palette, and Super Bayer deliver high-quality images.
- Offers auto or manual gain, exposure, white balance, LUT, and gamma correction.
- Supports hardware trigger, software trigger, and free-run modes.
- Supports custom ROI and horizontal/vertical image flipping.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 5MP, USB3, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH050-60UM. Key data: resolution 2448 × 2048, sensor type CMOS, global shutter, max frame rate 79 fps @ 2448 × 2048 Mono 8, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 5MP, USB3, IMX250, Mono, V4 (MV-CH050-10UM)
- Area Scan Camera, 5MP, 2.5GigE, Color (MV-CH050-60NC)
- Area Scan Camera, 5MP, 2.5GigE, Mono (MV-CH050-60NM)
- Area Scan Camera, 5MP, USB3, Color (MV-CH050-60UC)
- Area Scan Camera, 5MP, GMAX3405, 10GigE, Color, C-mount, with fan (MV-CH050-90TC-C-NF)
- Area Scan Camera, 5MP, GMAX3405, 10GigE, Mono, C-mount, with fan (MV-CH050-90TM-C-NF)
- Area Scan Camera, 5MP, GMAX2505, CXP-6, Color, C-mount, without fan (MV-CH050-90XC-C-NN)
- Area Scan Camera, 5MP, GMAX2505, CXP-6, Mono, C-mount, without fan (MV-CH050-90XM-C-NN)
Description
Sequencer, Super Palette, and Super Bayer deliver high-quality images. Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. Supports hardware trigger, software trigger, and free-run modes. Supports custom ROI and horizontal/vertical image flipping. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Fresh structural design supports installation from four sides. — Sequencer, Super Palette, and Super Bayer deliver high-quality images. — Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. — Supports hardware trigger, software trigger, and free-run modes. — Supports custom ROI and horizontal/vertical image flipping. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH050-60UM |
|---|---|
| Type | Area Scan Camera, 5MP, USB3, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 2/3" |
| Resolution | 2448 × 2048 |
| Max Frame Rate | 79 fps @ 2448 × 2048 Mono 8 |
| Dynamic Range | 73.9 dB |
| SNR | 42.4 dB |
| Gain | LCG: 0 dB to 13 dB HCG: 0 dB to 24 dB |
| Exposure Time | LCG: 30 μs to 10 sec HCG: 5 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (–14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.9 W @ 5 VDC (USB 3.0 provides power supply) |
