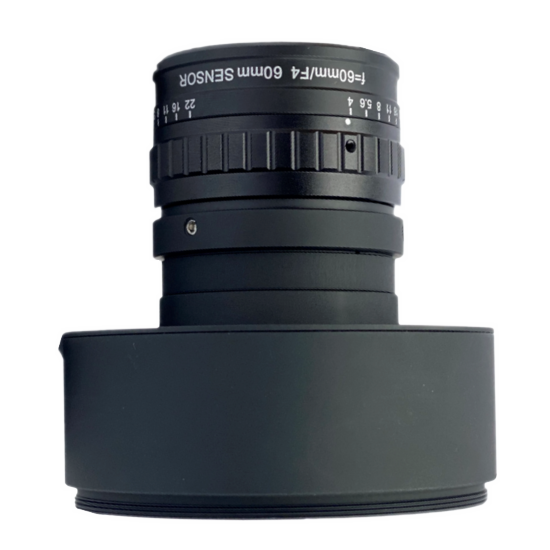

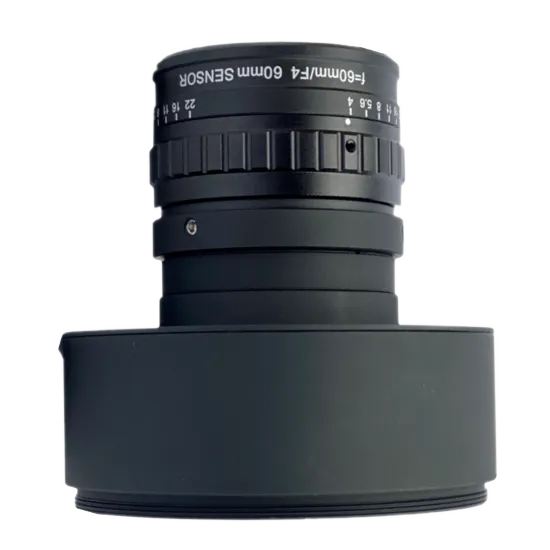

M72-Mount Lens, 60mm, F4.0, Image Size φ64mm, Recommended Magnification 0.067~0.2X
Adopts high-precision lens for 8k 7 μm line scan cameras.
- High-precision lens designed for 8K 7 µm line-scan cameras.
- Excellent image-sharpness consistency, large aperture, and low distortion.
- Superior resolution at a maximum aperture of F4.
- Maximum image size Ø60 mm.
Camera Solutions
M72-Mount Lens, 60mm, F4.0, Image Size φ64mm, Recommended Magnification 0.067~0.2X is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-LF6040M-0168V-M72. Key data: focal length 60 mm, f number F4.0 to F22, mount M72 × P0.75, image size Φ60 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Excellent image-sharpness consistency, large aperture, and low distortion. Superior resolution at a maximum aperture of F4. Maximum image size Ø60 mm.
Product Highlights
High-precision lens designed for 8K 7 µm line-scan cameras. — Excellent image-sharpness consistency, large aperture, and low distortion. — Superior resolution at a maximum aperture of F4. — Maximum image size Ø60 mm.
Specifications
| Product Model | MVL-LF6040M-0168V-M72 |
|---|---|
| Type | M72-Mount Lens, 60mm, F4.0, Image Size φ64mm, Recommended Magnification 0.067~0.2X |
| Focal Length | 60 mm |
| F Number | F4.0 to F22 |
| Image Size | Φ60 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M39 × P0.5 |
| Mount | M72 × P0.75 |
| Flange Back Length | 12 mm |
| Dimension | Φ75 mm × 72.8 mm to 80.8 mm (Φ3" × 2.9" to 3.2") |
| Temperature | –10 °C to 50°C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | 0.14% |
| Magnification Range | 0.067 x to 0.2 x |
| Working Distance Range | 945 mm to 345 mm (tolerance: ±5 mm) |
