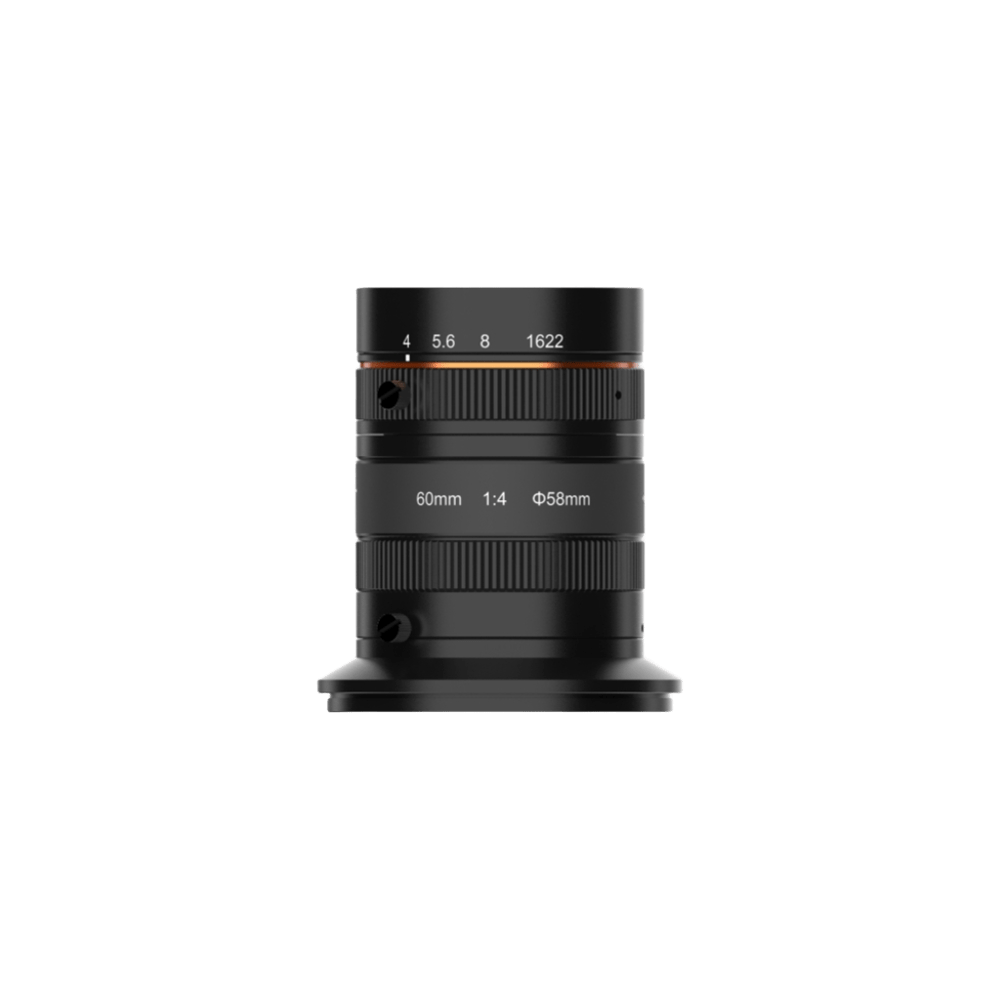

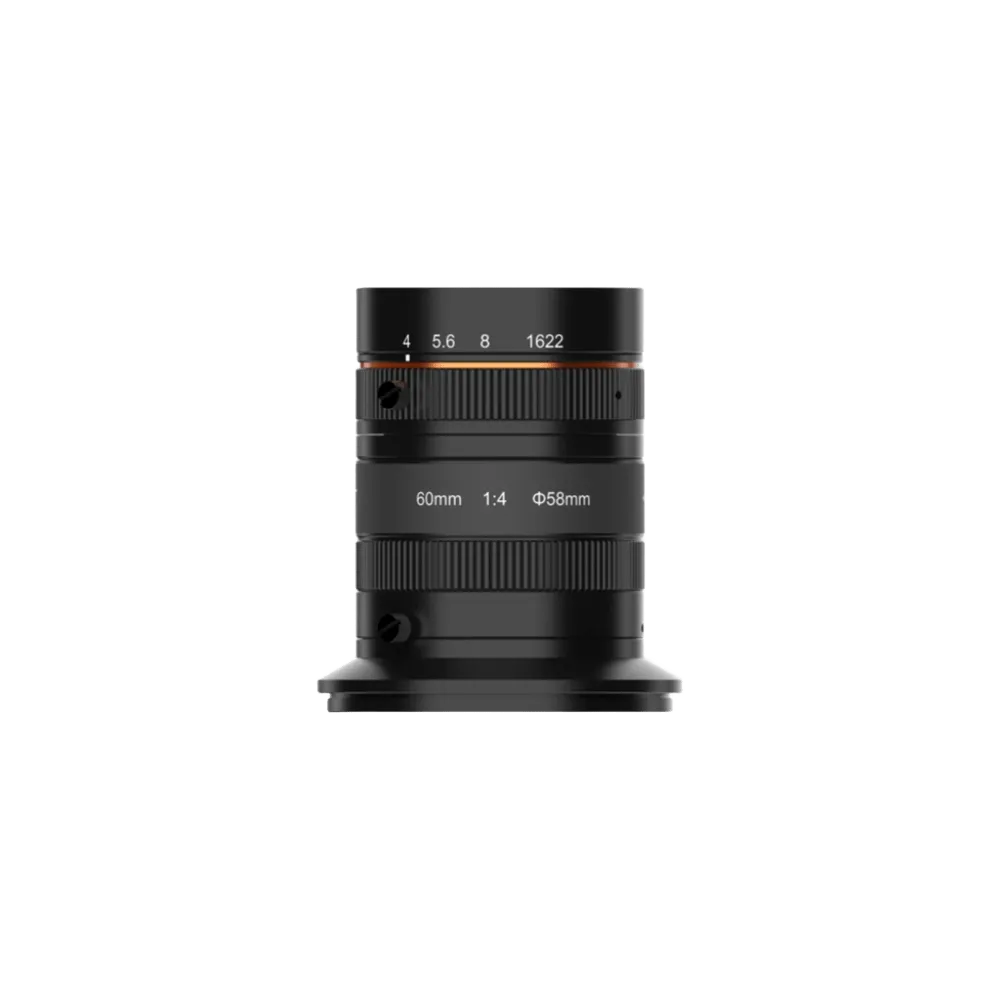

M72-Mount Lens, 60mm, F4.0, Image Size φ58mm, Recommended Magnification 0.07-0.37x
Adopts high-precision lens for 8k 7 μm line scan cameras.
- High-precision lens designed for 8K 7 µm line-scan cameras.
- Excellent image sharpness consistency and low distortion.
- Superior resolution at a maximum aperture of F4.
- Maximum image size Ø58 mm.
Camera Solutions
M72-Mount Lens, 60mm, F4.0, Image Size φ58mm, Recommended Magnification 0.07-0.37x is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-LF6040M-013-M72. Key data: focal length 60 mm, f number F4.0 to F22, mount M72 × P0.75, image size Ø58 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Excellent image sharpness consistency and low distortion. Superior resolution at a maximum aperture of F4. Maximum image size Ø58 mm.
Product Highlights
High-precision lens designed for 8K 7 µm line-scan cameras. — Excellent image sharpness consistency and low distortion. — Superior resolution at a maximum aperture of F4. — Maximum image size Ø58 mm.
Specifications
| Product Model | MVL-LF6040M-013-M72 |
|---|---|
| Type | M72-Mount Lens, 60mm, F4.0, Image Size φ58mm, Recommended Magnification 0.07-0.37x |
| Focal Length | 60 mm |
| F Number | F4.0 to F22 |
| Image Size | Ø58 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M58 × P0.75 |
| Mount | M72 × P0.75 |
| Flange Back Length | 12 mm |
| Dimension | Ø76 mm × 88.2 mm to 107.0 mm (Ø3.0'' × 3.5" to 4.2") |
| Weight | 484 g (1.1 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS2.0 |
| Optical Distortion | –0.45% |
| Magnification Range | 0.07x to 0.37x |
| Working Distance Range | 200 mm to 900 mm (tolerance: ±5 mm) |
| Conjugate Distance Range | 307 mm to 990 mm (tolerance: ±9 mm) |
