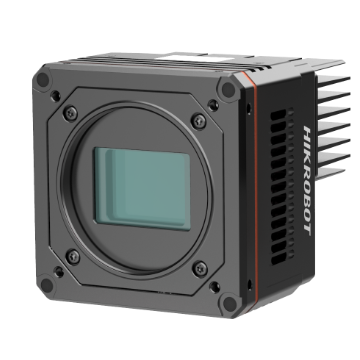

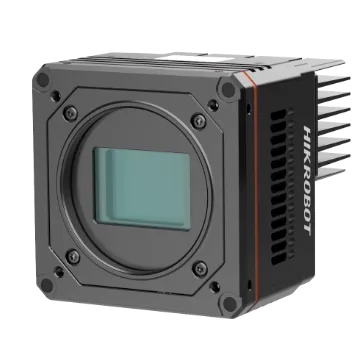

Area Scan Camera, 65MP, CXP-12, GMAX3265, Color, M58-mount, without fan

Name: Area Scan Camera, 65MP, CXP-12, GMAX3265, Color, M58-mount, without fan
Brand: HIKROBOT
SKU: MV-CH650-90YC-M58S-NN

Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm.

Send inquiry

Download datasheet (PDF)

Highlights

Resolution of 9344 × 7000 with 3.2 µm × 3.2 µm pixels.
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality.
Supports LSC Sequencer polling.
Transmits data over a CXP-12 interface.
Flat-field correction is supported.
Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH650-90YC-M58S-NN Category: Area & Line Scan Cameras

Area Scan Camera, 65MP, CXP-12, GMAX3265, Color, M58-mount, without fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH650-90YC-M58S-NN. Key data: resolution 9344 × 7000, sensor type CMOS, global shutter, max frame rate 71 fps @ 9344 × 7000, data interface CoaXPress with Micro-BNC interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Supports LSC Sequencer polling. Transmits data over a CXP-12 interface. Flat-field correction is supported. Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Area Scan Camera, 65MP, CXP-12, GMAX3265, Color, M58-mount, without fan (MV-CH650-90YC-M58S-NN) at a glance: 9344 × 7000 resolution, Gpixel GMAX3265 sensor, 29.9 mm × 22.4 mm sensor format, 3.2 μm × 3.2 μm pixel size, up to 71 fps, CoaXPress with Micro-BNC interface interface, M58*0.75, flange back length 11.48 mm lens mount and 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6") housing. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Resolution of 9344 × 7000 with 3.2 µm × 3.2 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Supports LSC Sequencer polling. — Transmits data over a CXP-12 interface. — Flat-field correction is supported. — Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CH650-90YC-M58S-NN
Type	Area Scan Camera, 65MP, CXP-12, GMAX3265, Color, M58-mount, without fan
Sensor Type	CMOS, global shutter
Sensor Model	Gpixel GMAX3265
Pixel Size	3.2 μm × 3.2 μm
Sensor Size	29.9 mm × 22.4 mm
Resolution	9344 × 7000
Max Frame Rate	71 fps @ 9344 × 7000
Dynamic Range	66 dB
SNR	40 dB
Gain	1.25x
Exposure Time	12 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Bayer BG 8/10/12
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output

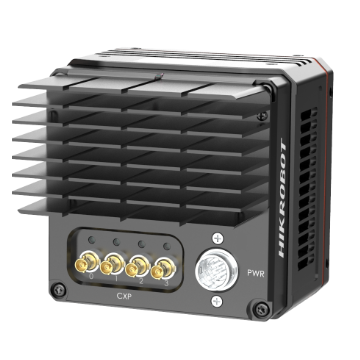

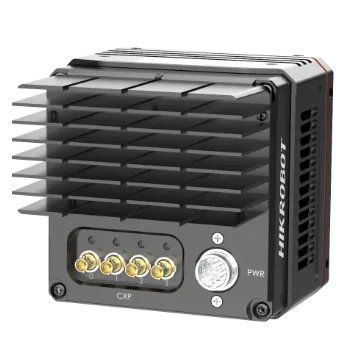

Data Interface	CoaXPress with Micro-BNC interface
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power Supply	24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Lens Mount	M58*0.75, flange back length 11.48 mm
Dimension	84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
Weight	Approx. 650 g (1.4 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or frame grabber software meeting with CoaXPress Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above
Compatibility	CoaXPress, GenlCam
Certification	CE, RoHS, KC
Mono	Color
Power Consumption 2	Typ. 13.2 W@24 VDC
