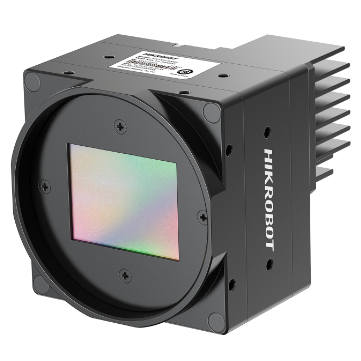

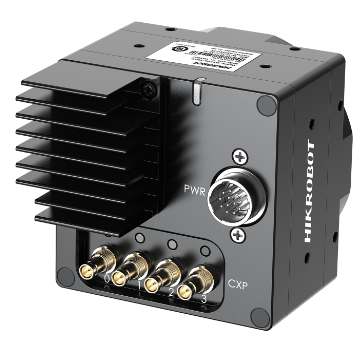

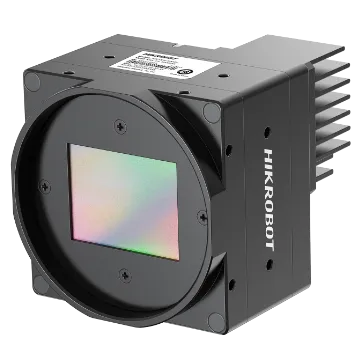

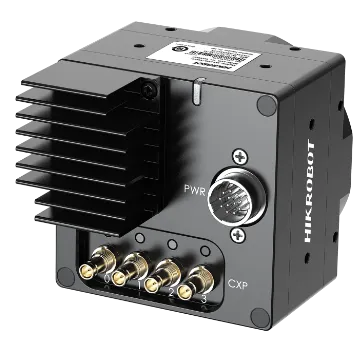

Area Scan Camera, 65MP, CXP-12, GMAX3265, Mono, V2, M58-mount
Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Transmits data over a CXP-12 interface. Compact, fanless, low-power design. Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Resolution of 9344 × 7000 with 3.2 µm × 3.2 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Transmits data over a CXP-12 interface. — Compact, fanless, low-power design. — Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH650-90YM-M58S-NN V2 |
|---|---|
| Type | Area Scan Camera, 65MP, CXP-12, GMAX3265, Mono, V2, M58-mount |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX3265 |
| Pixel Size | 3.2 μm × 3.2 μm |
| Sensor Size | 29.9 mm × 22.4 mm |
| Resolution | 9344 × 7000 |
| Max Frame Rate | 71 fps @ 9344 × 7000 Mono 8 |
| Dynamic Range | 66 dB |
| SNR | 40 dB |
| Gain | 1.25 × |
| Exposure Time | 12 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Lens Mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3") (cooling fins are optional) |
| Weight | Approx. 285 g (0.6 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC, UL |
| Mono | Mono |
| Power Consumption 2 | Typ. 14.4 W @ 12 VDC |
