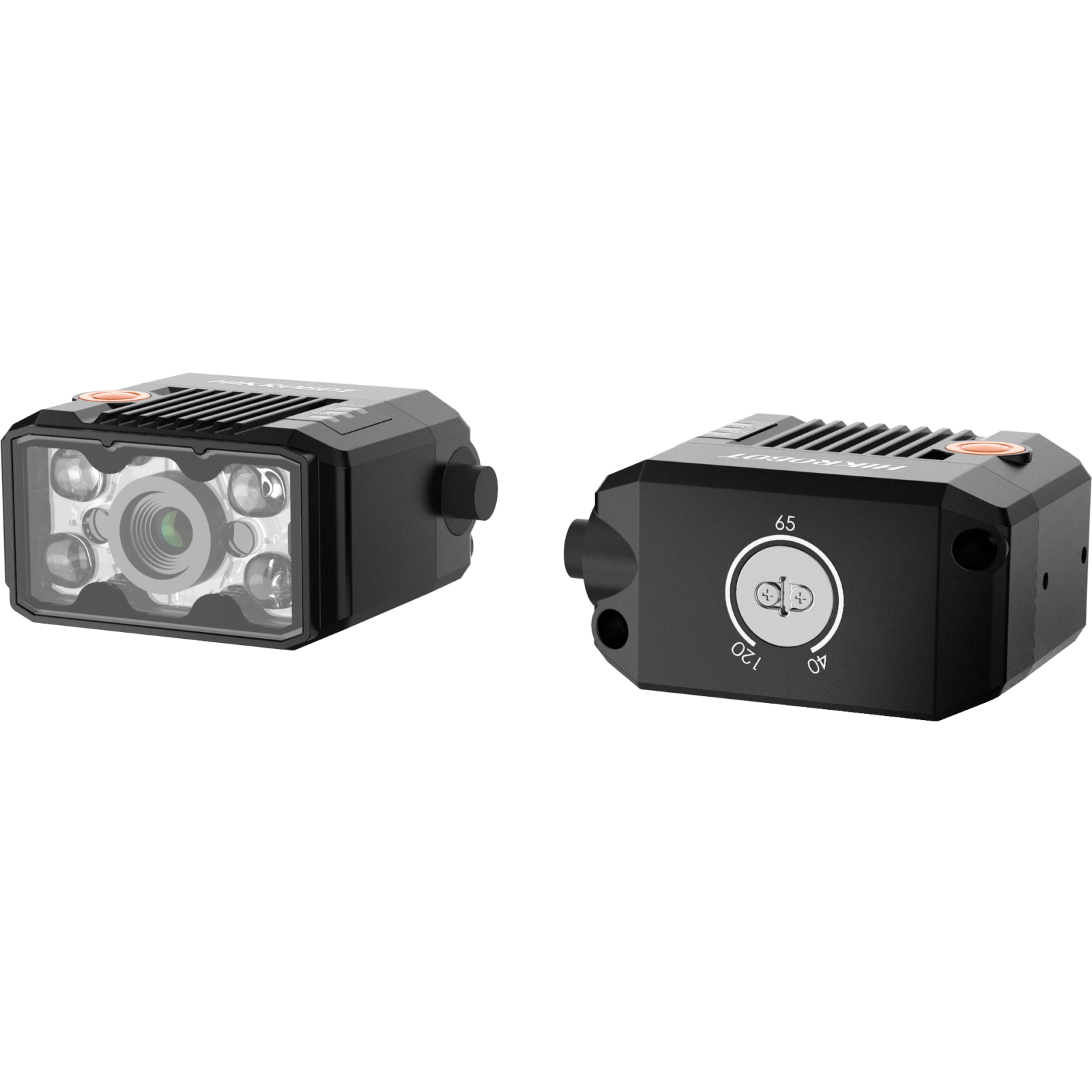

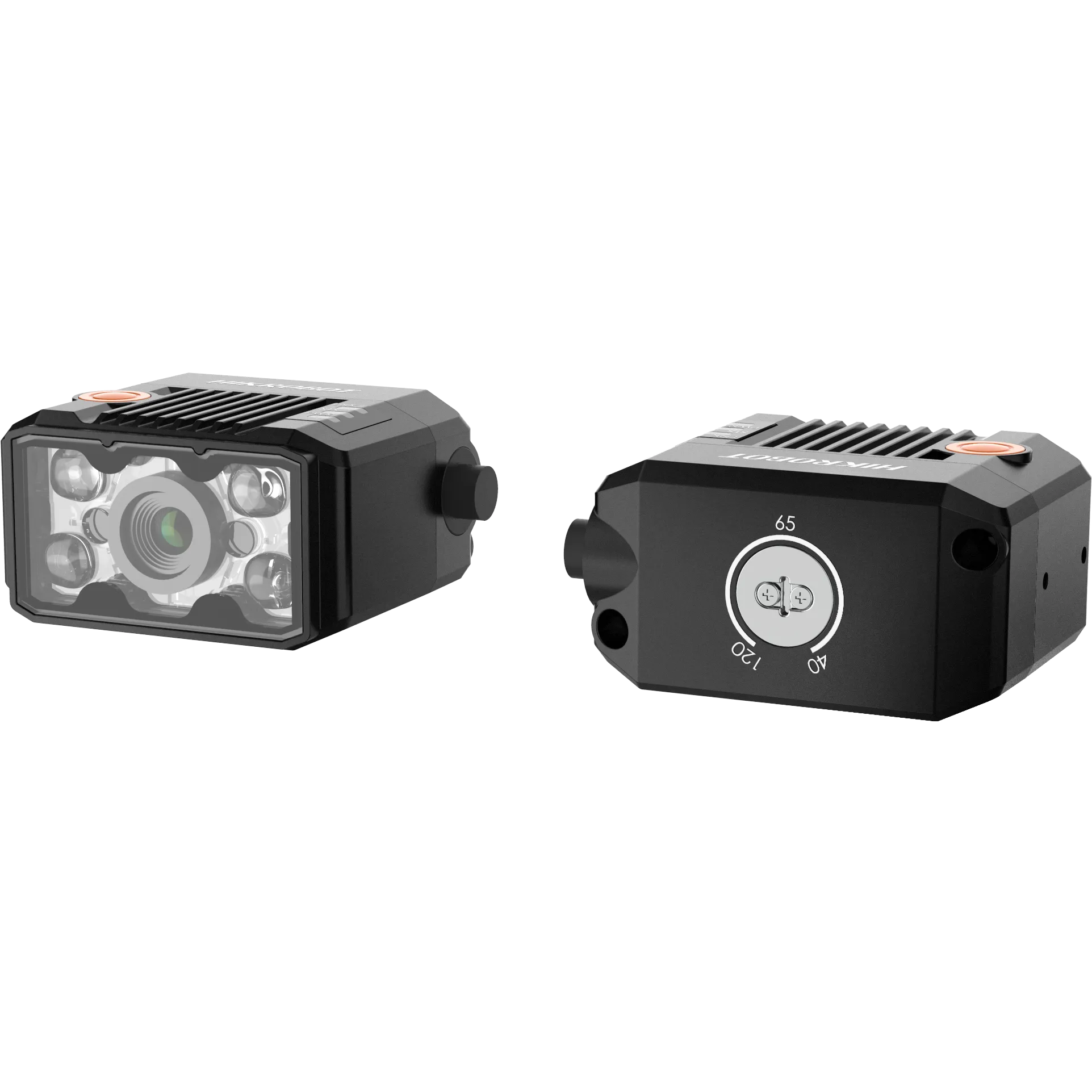

Ultra-Compact Industrial Code Reader, 6mm focal length 0.4MP USB

Name: Ultra-Compact Industrial Code Reader, 6mm focal length 0.4MP USB
Brand: HIKROBOT
SKU: MV-ID2004M-06S-WBN-U

Compact design and small in size.

Send inquiry

Download datasheet (PDF)

Highlights

Compact and small-footprint design.
Aviation connector for single-cable wiring.
An LED aiming light helps line up codes.
Focus knob for manual focusing.
Includes multiple I/O interfaces and a plug-in power connector.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-ID2004M-06S-WBN-U Category: Fixed Code Reader

Ultra-Compact Industrial Code Reader, 6mm focal length 0.4MP USB is a fixed-mount code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ID2004M-06S-WBN-U. Key data: max reading speed 38 codes/sec, resolution 704 × 540, data interface USB 3.0, ingress protection IP65. Typical use is track-and-trace on production and logistics lines. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Aviation connector for single-cable wiring. An LED aiming light helps line up codes. Focus knob for manual focusing. Includes multiple I/O interfaces and a plug-in power connector.

Ultra-Compact Industrial Code Reader, 6mm focal length 0.4MP USB (MV-ID2004M-06S-WBN-U) at a glance: 704 × 540 resolution, 6.72 mm lens, up to 60 fps, USB 3.0 interface, 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") housing and weighs 160 g (0.4 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Compact and small-footprint design. — Aviation connector for single-cable wiring. — An LED aiming light helps line up codes. — Focus knob for manual focusing. — Includes multiple I/O interfaces and a plug-in power connector.

Specifications

Product Model	MV-ID2004M-06S-WBN-U
Type	Ultra-Compact Industrial Code Reader, 6mm focal length 0.4MP USB
Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix
Max Frame Rate	60 fps
Max Reading Speed	38 codes/sec
Sensor Type	CMOS, global shutter
Pixel Size	6.9 μm × 6.9 μm
Sensor Size	1/2.9"
Resolution	704 × 540
Exposure Time	16 μs to 1 sec
Gain	0 dB to 15 dB
Communication Protocol	SmartSDK, USB
Data Interface	USB 3.0
Digital I/O	17-pin M12 connector provides data transmission. Device trigger via pressing button on side supported.
Power Supply	5 VDC (USB 3.0 provides power supply)
Max Power Consumption	Avg. 3 W @ 5 VDC, max. 5 W @ 5 VDC
Focal Length	6.72 mm
Lens Mount	M10-mount, adjusting focus manually supported
Ambient Illumination	0 lux to 50000 lux
Light Source	White
Aiming System	Green LED
Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS)
Dimension	46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
Weight	Approx. 160 g (0.4 lb.)
Ingress Protection	IP65
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	IDMVS
Certification	CE, RoHS, KC
Mono	Mono
Working Distance	40 mm to 120 mm
