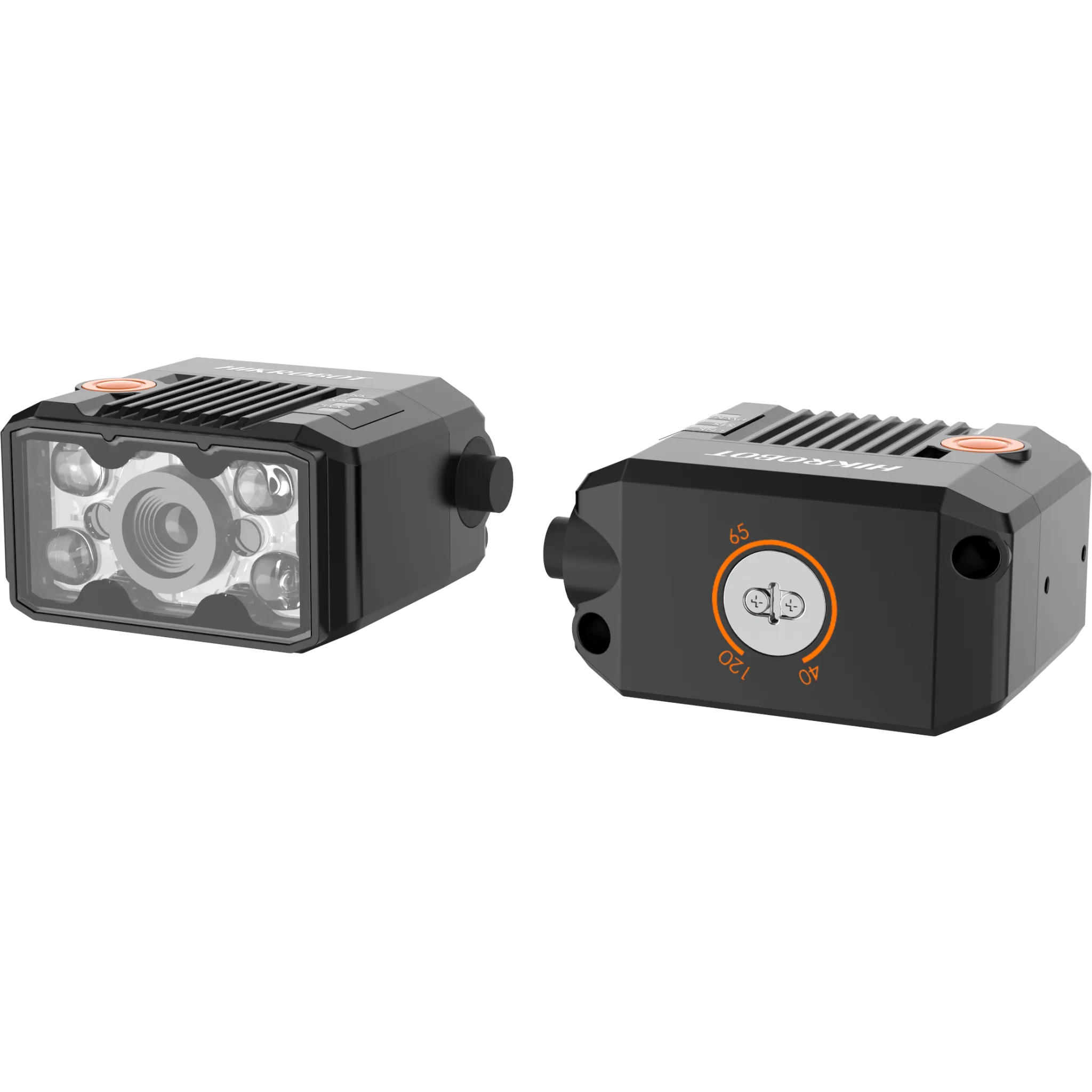

Ultra-Compact Industrial Code Reader, 6mm focal length 1.3MP
Built-in deep learning algorithm to read codes with good robustness.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Compact and small-footprint design. An LED aiming light helps line up codes. Focus knob for manual focusing. Includes multiple IO interfaces and a plug-in power connector.
Product Highlights
A built-in deep-learning algorithm reads codes robustly. — Compact and small-footprint design. — An LED aiming light helps line up codes. — Focus knob for manual focusing. — Includes multiple IO interfaces and a plug-in power connector.
Specifications
| Product Model | MV-ID2013M-06S-WBP |
|---|---|
| Type | Ultra-Compact Industrial Code Reader, 6mm focal length 1.3MP |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix |
| Max Frame Rate | 60 fps |
| Max Reading Speed | 45 codes/sec |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 4 μm × 4 μm |
| Sensor Size | 1/2.7" |
| Resolution | 1280 × 1024 |
| Exposure Time | 35 μs to 1 sec |
| Gain | 0 dB to 15 dB |
| Communication Protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, UDP, Fins |
| Data Interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1 Device trigger via pressing button on side supported. |
| Power Supply | 12 VDC to 24 VDC |
| Max Power Consumption | Approx. 10.6 W @ 24 VDC |
| Focal Length | 6.72 mm |
| Lens Mount | M10-mount, adjusting focus manually supported |
| Ambient Illumination | 0 lux to 50000 lux |
| Light Source | White (Polarized) |
| Aiming System | Green LED |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress Protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | IDMVS |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Working Distance | 40 mm to 120 mm |
