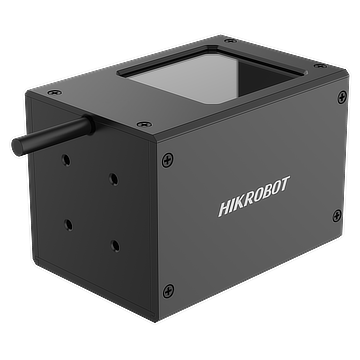

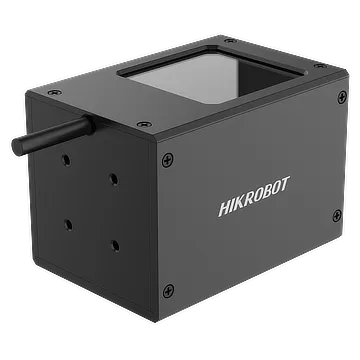

Coaxial lighting，30*30，blue color
Features special beam splitter design and improved light efficiency.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Efficient heat dissipation extends service life.
Product Highlights
Beam-splitter design improves light efficiency. — Efficient heat dissipation extends service life.
Specifications
| Product Model | MV-LCDS-H-30-30-B |
|---|---|
| Type | Coaxial lighting，30*30，blue color |
| Color | Blue |
| Wavelength | 465 nm |
| Color Temperature | / |
| Power | 3.6 W |
| Connector Type | SMR-03V-B |
| Dimension | 69 mm × 37.9 mm × 38 mm |
| Weight | 132 g |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 32.5 mm × 32 mm |
| Safety Class | RG1 |
| Safety Distance | 0.35 m |
