DB9 I/O cables

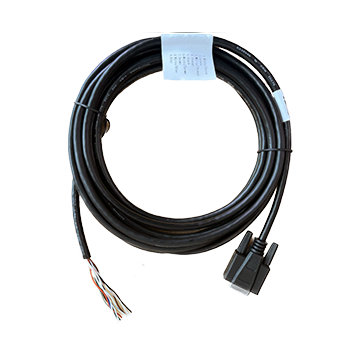

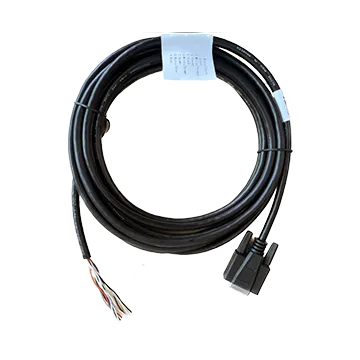

The Frame Grabber Standard I/O Cable (DB9F to Open) can be used for I/O signal wiring of the frame grabber with DB9M interface. The cable is equipped with shielding protection, and is available in a variety of lengths.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
DB9 I/O cables is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ACP-DB9F-open-ST(EMC)-7m. Key data: certification RoHS,UL. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- DB9 I/O cables (MV-ACP-DB9F-open-ST(EMC)-3m)
- DB9 I/O cables (MV-ACP-DB9F-open-ST(EMC)-5m)
- High-flex 12pin power & I/O cables, 10 meters (MV-ACP-H12p-open-HF-10m)
- High-flex 12pin power & I/O cables, 3 meters (MV-ACP-H12p-open-HF-3m)
- High-flex 12pin power & I/O cables, 5 meters (MV-ACP-H12p-open-HF-5m)
- High-flex 12pin power & I/O cables, 7 meters (MV-ACP-H12p-open-HF-7m)
- Power & I/O Cable, P10 12-pin, Female to Open, 10 m (MV-ACP-H12p-open-ST-10m)
- Power & I/O Cable, P10 12-pin, Female to Open, 20 m (MV-ACP-H12p-open-ST-20m)
Product Highlights
Frame Grabber Standard I/O Cables (DB9F to Open) suit DB9M frame grabbers; shielded, available in multiple lengths.
Specifications
| Product Model | MV-ACP-DB9F-open-ST(EMC)-7m |
|---|---|
| Type | DB9 I/O cables |
| End A Connector | DB9F |
| End B Connector | Open |
| Cable Diameter | 6.5 mm |
| Length | 7 m |
| Cable Mechanical | UL20276 (26AWG*4P+26AWG*1C+AB) |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | >500 cycles |
| Applicable Scenario | Static scene |
| Max Voltage | 30 VDC |
| Working Temperature | -20°C ~ 80°C |
| Certification | RoHS,UL |
| Packaging | Individual package |
